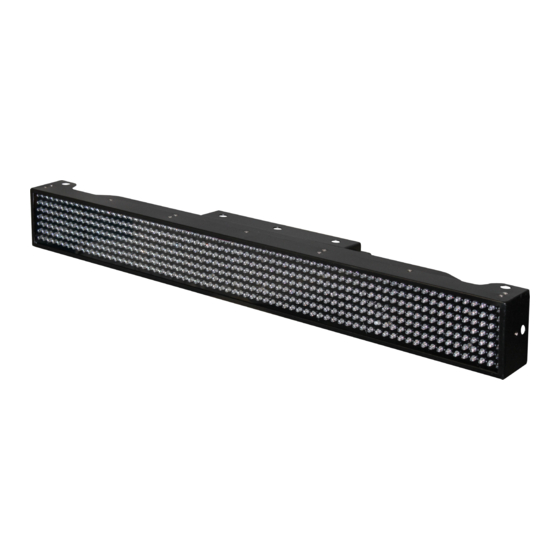

Summary of Contents for Ledj Pixel Bar LEDJ73A
-

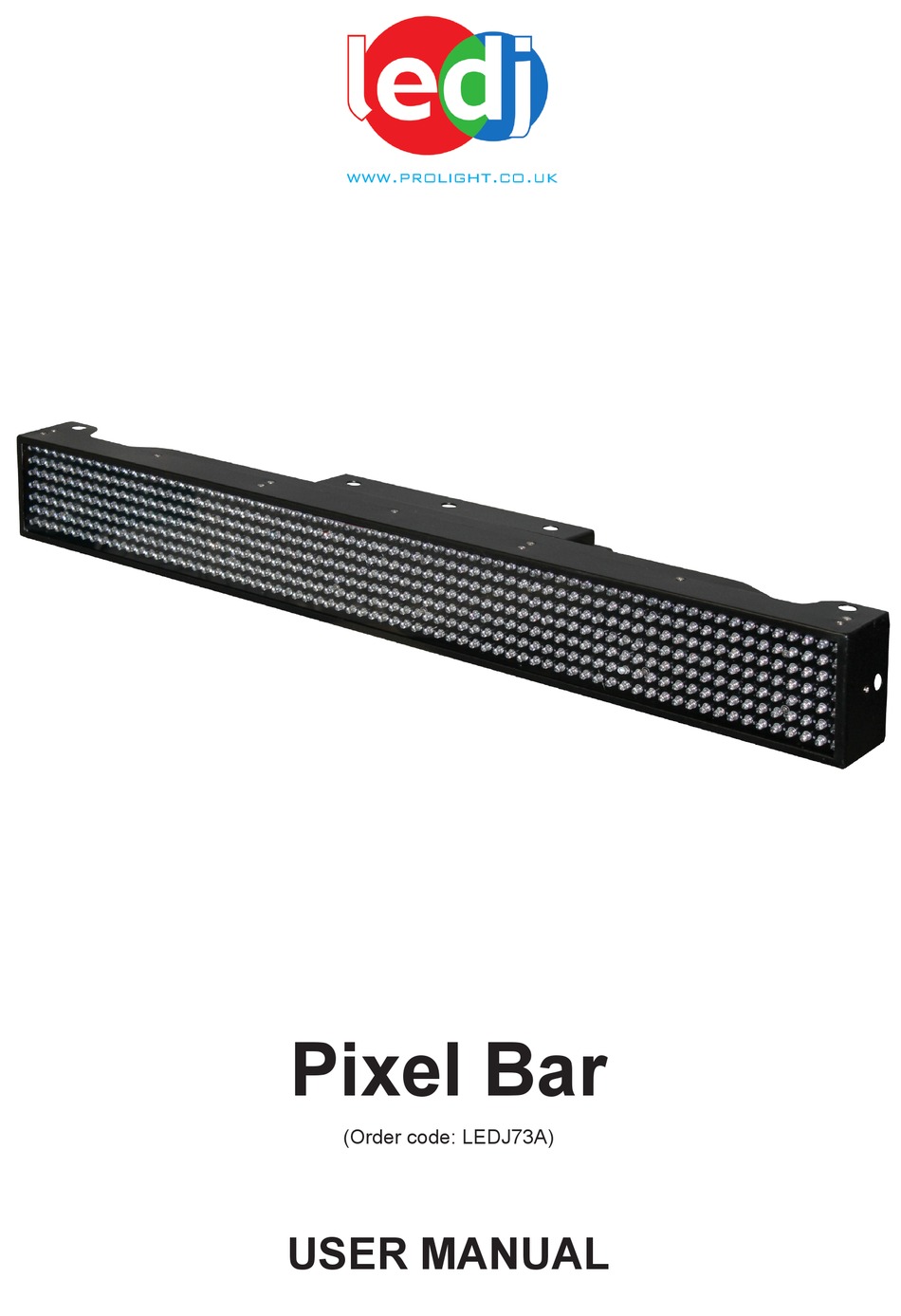

Page 1: User Manual
www.prolight.co.uk Pixel Bar (Order code: LEDJ73A) USER MANUAL... -
Page 2: Flow
PIXEL BAR SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Flow
PIXEL BAR SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... -
Page 4: Flow
Down Button Set Up Button Operating Instructions The LEDJ Pixel Bar is a DMX-512 controllable unit made up of high efficiency and Ultra Bright LEDs and will operate in stand alone, master/slave, sound activated or DMX control modes. HBR-1D Operation (optional) To operate the Pixel Bar via the (optional) LEDJ HBR-1D controller (LEDJ123), please ensure that the Pixel Bar has been set into “SLAVE MODE”... -
Page 5: Flow
PIXEL BAR OPERATION MODES Operation modes Sound Active mode: To activate the unit in sound active mode, press the “MODE” button to show “SOUND MODE” on the LCD screen. Now press the “SET UP” button to select the desired sensitivity level by using the “UP”... -
Page 6: Flow
PIXEL BAR BUILT-IN PROGRAMME CHART 14 Built-in programme chart BLA=Blackout, R=Red, RG=Yellow, G=Green, STATIC COLOR GB=Cyan, B=Blue, BR=Purple, RGB=White BLACKOUT - RGB Flash speed adjustable. Flash00-99 Seven colour fade DREAM Speed & Flash adjustable Speed 00-99 Flash 00-99 Seven colour flow METEOR Speed &... -
Page 7: Table Of Contents
PIXEL BAR DMX PROGRAMME CHARTS 6 channel mode DMX chart CH 1 CH 2 0-10 blackout blackout blackout blackout blackout 11-21 Master dimmer Flash Green Blue (0-255) (0-255) (0-255) (0-255) (0-255) 22-32 Flash(0-255) 33-43 Yellow Flash (0-255) 44-54 Green Flash (0-255) 55-65 Cyan Flash (0-255) 66-76 Blue... -
Page 8: Flow
PIXEL BAR DMX PROGRAMME CHARTS Note: For 9, 15 and 27 channel modes, please follow the 6 channel DMX chart for channels 1, 2 and 3. 9 channel mode DMX chart 11-21 Master Flash Dimmer (0-255) (0-255) 15 channel mode DMX chart CH10 CH11 CH12... -
Page 9: Flow
PIXEL BAR DMX SET UP DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”... - Page 10 PIXEL BAR DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 11 PIXEL BAR TECHNICAL SPECIFICATIONS Technical Specifications Weight & Dimensions • Length…............809mm • Width..............100mm • Height……………………………………………..135mm • Weight………………………………………..4.2kgs Power • AC input……………………………………..240V/50hz • AC output……………………………………..240V/50hz • Power consumption.........51W • Fuse • Main……………………………………………….F1A/240V Control & Programming • Data input………………………………………...Locking 3-pin XLR male socket •...
- Page 12 www.prolight.co.uk...
