Summary of Contents for Ledj STRATOS UV
-

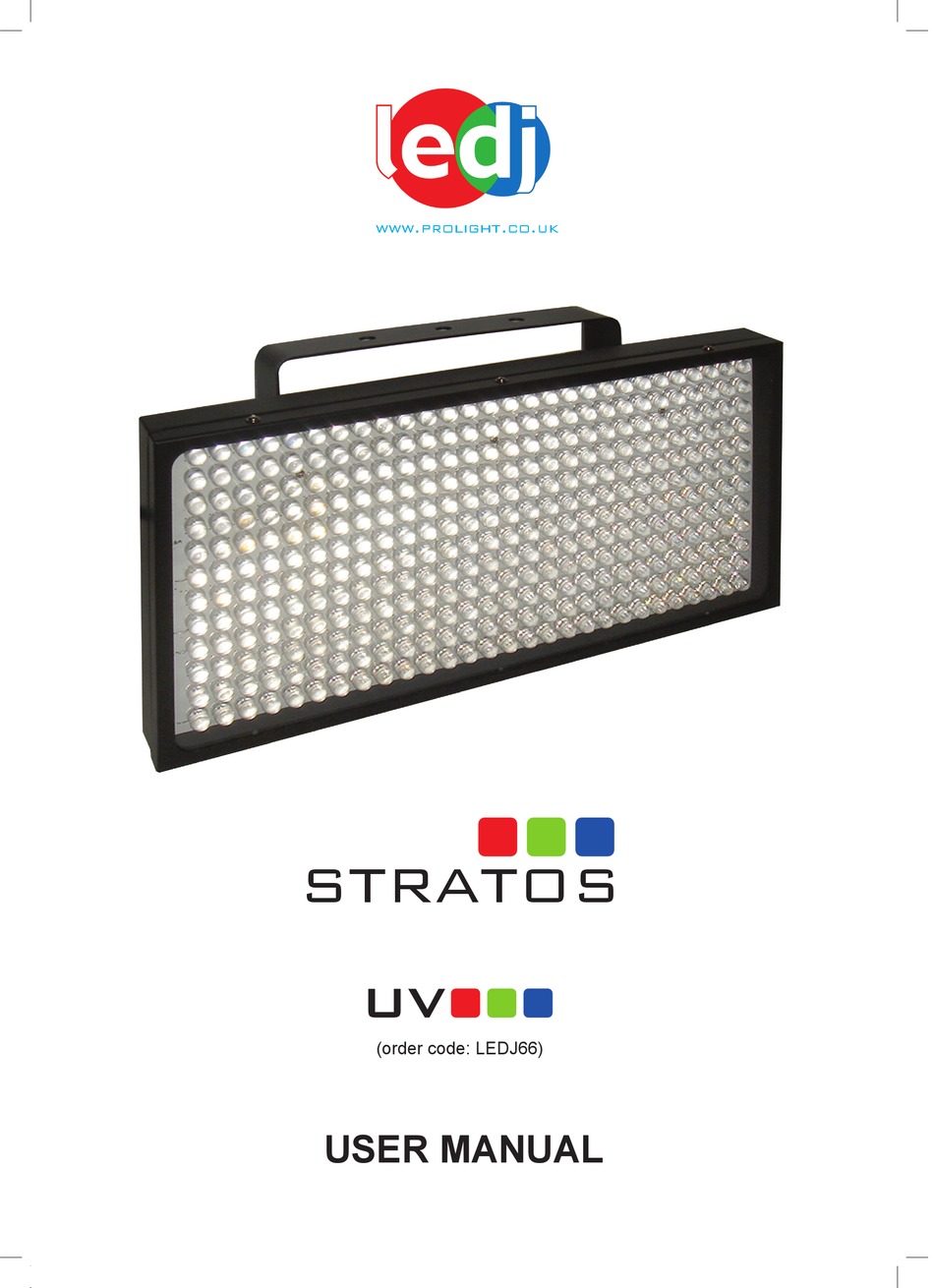

Page 1: User Manual
www.prolight.co.uk STRATOS (order code: LEDJ66) USER MANUAL... -
Page 2: Safety Instructions
STRATOS UV SAFETY WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this... -
Page 3: Operating Determinations

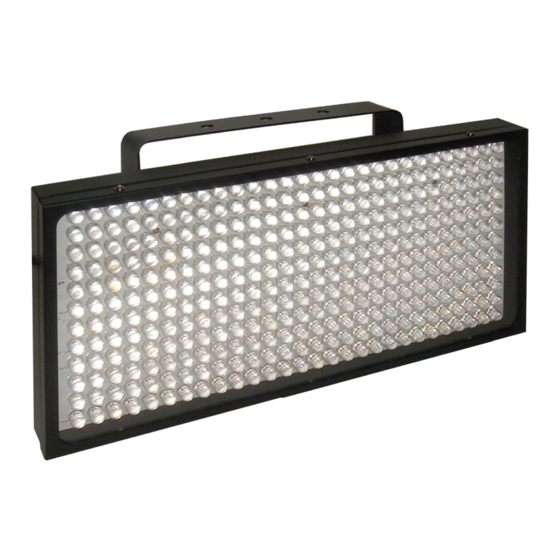

STRATOS UV SAFETY IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 STRATOS UV INTRODUCTION Introduction CONTROL FEATURES • 2-channel DMX-Strobe • Blackout/Dimmer/Strobe Features • 336 ultra bright 10mm ultra violet LED’s • Sound control via internal microphone • Master/Slave functions • Sound activated • Rugged compact housing • Consumption: 30w • Beam 40 degrees •...
- Page 5 STRATOS UV OVERVIEW Product Overview Setup Operating Instructions The Stratos UV is a DMX-512 controllable, unit made up of high efficiency and super bright LED’s. The Stratos UV will operate in stand-alone, Master/Slave, sound activated or via DMX-512 control.
- Page 6 (set dip switch #8 to on and all others off). Sound Activation The Stratos UV has a built-in microphone which enables it to operate in Sound to Light mode. Set the sensitivity control to the desired level, and the unit will respond to the beat of the music. Set dip switch 9 to ON to activate Sound Mode.
-
Page 7: Control Options
STRATOS UV CONTROL OPTIONS Manual Control Options Dimmer • With Dip Switch 1 only set to ON you obtain 25% output • With Dip Switch 2 only set to ON you obtain 50% output • With Dip Switches 1, 2 and 3 only set to ON you obtain 75% output •... - Page 8 STRATOS UV CONTROL OPTIONS Set the start address using the group of dip switches located usually on the back of the fixture. Each dipswitch has an associated value. Adding the value of each switch in the ON position will provide the start address. Determining which switches to toggle ON given a specific start address can be accomplished in the following manner.
- Page 9 DATA Cable (DMX cable) requirements (for DMX operation): • The Stratos UV can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
- Page 10 STRATOS UV DMX SET UP Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
- Page 11 STRATOS UV Dip Switch Reference Chart DMX Dip Switch Quick Reference Chart Dip Switch Position...
-
Page 12: Dmx Values
STRATOS UV DMX VALUES Technical Specifications Weight & Dimensions • Length…............382mm • Width..............105mm • Height……………………………………………..215mm • Weight………………………………………..2.5kgs Power • AC input……………………………………..230V/50hz Fuse • Main……………………………………………….20mm Glass 0.5A Fast Blow Control & Programming • Data input………………………………………...Locking 3-pin XLR male socket • Data output……………………………………….Locking 3-pin XLR female socket •...
