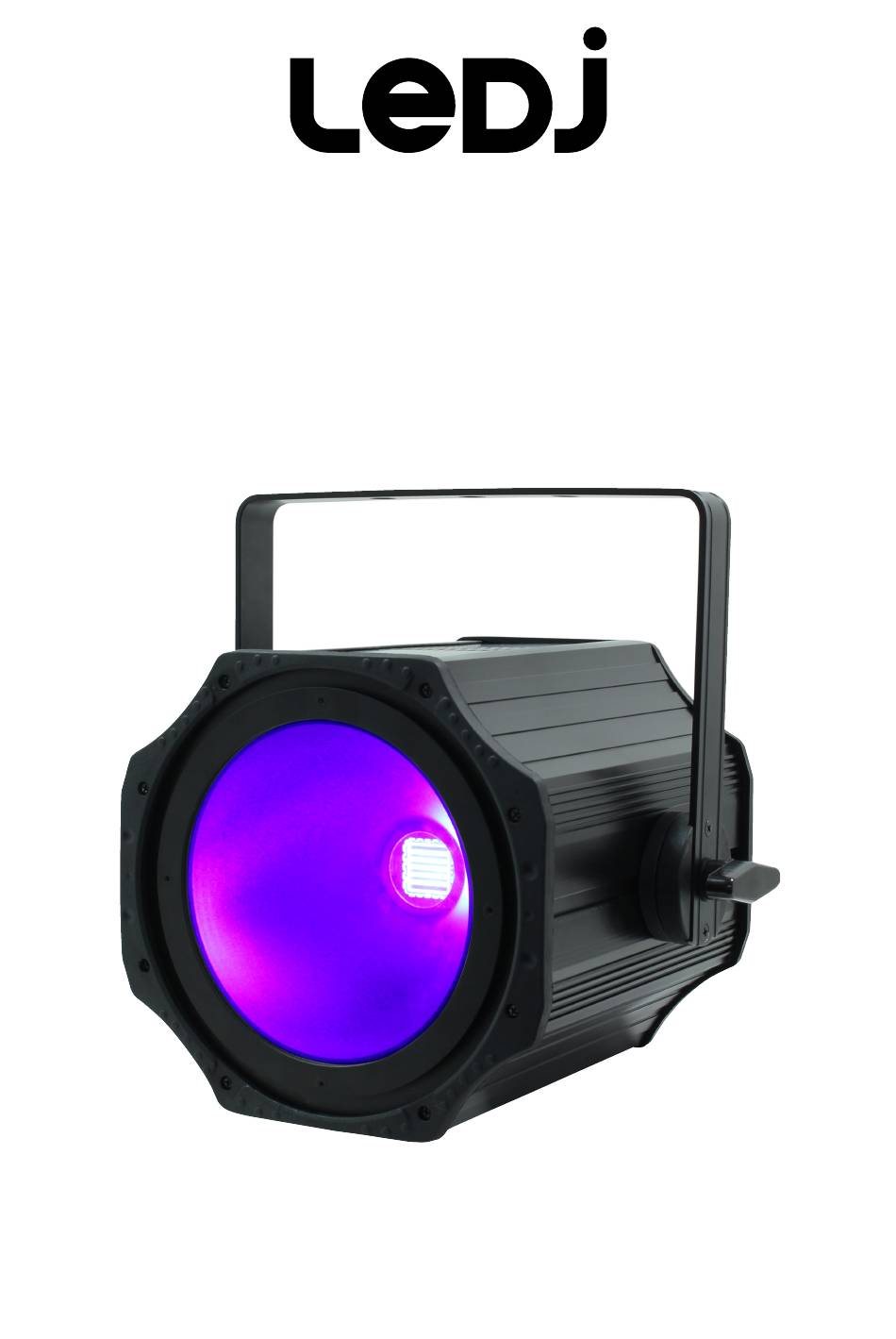

- Page 1 150W UV COB Flood User Manual Order code: LEDJ188...
-
Page 2: Safety Advice
Safety advice WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! • Before your initial start-up, please make sure that there is no damage caused during transportation. • Should there be any damage, consult your dealer and do not use the equipment. •... - Page 3 150W (max.) Power supply 100~240V, 50/60Hz Fuse T2A 250V Dimensions 282 x 306 x 244mm (with bracket) 210 x 222 x 244mm (without bracket) Weight 4.3kg Order code LEDJ188 244mm 306mm 222mm 222mm 32mm www.prolight.co.uk 150W UV COB Flood User Manual...
-
Page 4: Technical Specifications
Technical specifications DMX OUTPUT DMX INPUT MENU DOWN ENTER 150W UV COB Flood FUSE: www.prolight.co.uk T2A 250V POWER OUTPUT: POWER INPUT: 100-240V~50/60Hz 100-240V~50/60Hz POWER CONSUMPTION: 150W (max.) 01 - LED display 05 - PowerCON input In the box: 1 x fixture, 02 - Function buttons 06 - PowerCON output 09 - Hanging bracket... - Page 5 Operating instructions Operating instructions Operating instructions A 0 0 1 A 0 0 1 DMX address setting A 5 1 2 1 C H C h n d Slave mode 2 C H C - 0 0 C - 0 0 Manual mode (dimmer) C - 9 9 F - 0 0...
-
Page 6: Master/Slave Mode
Operating instructions DMX mode: Operating in a DMX control mode environment gives the user the greatest flexibility when it comes to customising or creating a show. In this mode you will be able to control each individual trait of the fixture and each fixture independently. To access the DMX address mode, press the “MENU”... - Page 7 Operating instructions Sound active: To access the sound active mode, press the “MENU” button and use the “UP” and “DOWN” buttons on SU00 the rear of the unit to show on the LED display. Now press the “ENTER” button and use the “UP”...
- Page 8 Multiple fixture power linking Power linking: This fixture provides power linking via the power output on the rear allowing multiple units to be connected together. The maximum number of fixtures that can be connected is 12 fixtures @ 240V or 6 fixtures @ 120V (including the first fixture). After the maximum number of fixtures are connected a new power run will need to be started.
-
Page 9: Dmx Setup
DMX setup Setting the DMX address: The DMX mode enables the use of a universal DMX controller. Each fixture requires a “start address” from 1- 512. A fixture requiring one or more channels for control begins to read the data on the channel indicated by the start address. -
Page 10: Line Termination
DMX setup Notice: Be sure to follow the diagrams below when making your own cables. Pin Configuration Do not connect the cables shield conductor to the ground lug or 3-Pin 5-Pin allow the shield conductor to come in contact with the XLRs Pin 1 - Ground outer casing. -
Page 11: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. - Page 12 www.prolight.co.uk 150W UV COB Flood User Manual...
