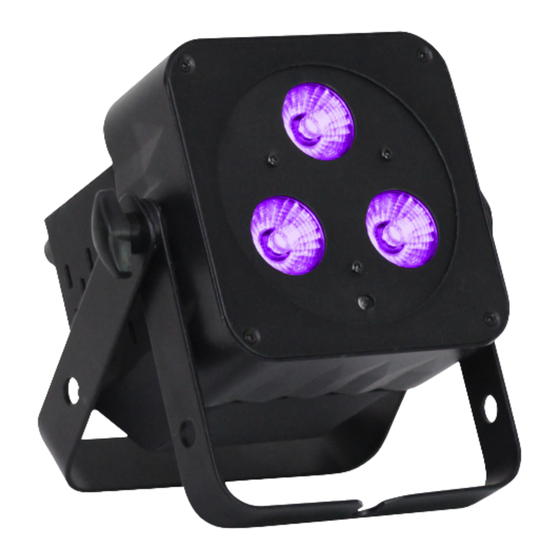

- Page 1 Slimline 3HEX12 Series 3 x 12W 6-in-1 colour LEDs (RGBAWUV) User Manual Convection Optional cooled, IR remote no fan! Order ref: LEDJ90F Order codes: LEDJ71 - Black housing LEDJ71A - White housing...
-
Page 2: Safety Advice
• Only use the equipment indoors. • If your product fails to function correctly, stop use • Do not expose to flammable sources, liquids or gases. immediately. Pack the unit securely (preferably in the original packing material), and return it to your Pro Light • Always disconnect the power from the mains when dealer for service. equipment is not in use or before cleaning! Only handle the power-cable by the plug. Never pull out the plug by • Only use fuses of same type and rating. pulling the power-cable. • Repairs, servicing and power connection must only be • Make sure that the available voltage is between carried out by a qualified technician. THIS UNIT CONTAINS 110~240V, 50/60Hz. NO USER SERVICEABLE PARTS. • Make sure that the power cable is never crimped or • WARRANTY: One year from date of purchase. damaged. Check the equipment and the power cable periodically. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Slimline 3HEX12 Series User Manual... - Page 3 • 0 - 100% dimming with variable strobe • Bracket allows for multiple rigging and floor standing applications • Rear control panel and rubber feet allow the panel to sit flat on the floor for uplighting • 4 push button menu with LED display • Side entry XLR and power connections • IEC power in/out sockets • 3-pin XLR in/out sockets • Convection cooled • Optional IR remote (LEDJ90F) Specifications Slimline 3HEX12 Power consumption 30° - Lux 3160 Power supply 110~240V, 50/60Hz Fuse F1A 250V Dimensions 185 x 175 x 124mm 30° Weight 1.7kg Order code LEDJ71 - Black housing Order code LEDJ71A - White housing 175mm 124mm www.prolight.co.uk Slimline 3HEX12 Series User Manual...
-
Page 4: Technical Specifications
POWER IN POWER OUT DMX OUT DMX IN SLIMLINE 3HEX12 ENTER DOWN www.prolight.co.uk 01 - Bracket 05 - Function buttons 09 - IEC power out socket In the box: 1 x fixture, 02 - Bracket tightening knobs 06 - DMX input socket 10 - Fuse F1A 250V 1 x power cable & 03 - Earth point 07 - DMX output socket 1 x user manual 04 - LED display 08 - IEC power in socket www.prolight.co.uk Slimline 3HEX12 Series User Manual... - Page 5 Channel Value Function 000-255 Master dimmer (0-100%) 000-016 000-255 colour macro 017-033 Green 034-050 Blue 051-067 White 068-084 Amber 085-101 102-118 Yellow (R - 255, G - 200, A - 255) 119-135 Cyan (G - 255, B - 255) 136-152 Lavender (R - 170, B - 210) 153-169 Bright green (G - 255, A - 180) 170-186 Magenta (R - 255, B - 90, UV - 255) 187-203 Turquoise (G - 255, B - 180, UV - 255) 204-220 Orange (R - 200, A - 200) 221-237 Cool white (R - 70, G - 190, B - 255, A - 200) 238-255 Warm white (R - 230, G - 255, B - 255, A - 255, W - 255) www.prolight.co.uk Slimline 3HEX12 Series User Manual...
- Page 6 5 channel mode: 6 channel mode: Channel Value Function Channel Value Function 000-255 Red (0-100%) 000-255 Red (0-100%) 000-255 Green (0-100%) 000-255 Green (0-100%) 000-255 Blue (0-100%) 000-255 Blue (0-100%) 000-255 White (0-100%) 000-255 White (0-100%) 000-255 Amber (0-100%) 000-255 Amber (0-100%) 000-255 UV (0-100%) www.prolight.co.uk Slimline 3HEX12 Series User Manual...
- Page 7 021-025 White 026-030 Amber 031-035 UV 036-040 Yellow (R - 255, G - 200, A - 255) 041-045 Cyan (G - 255, B - 255) 046-050 Lavender (R - 170, B - 210) 051-055 Bright green (G - 255, A - 180) 056-060 Magenta (R - 255, B - 90, UV - 255) 061-065 Turquoise (G - 255, B - 180, UV - 255) 066-070 Orange (R - 200, A - 200) 071-075 Cool white (R - 70, G - 190, B - 255, A - 200) 076-080 Warm white (R - 230, G - 255, B - 255, A - 255, W - 255) 081-150 Colour change speed Slowest (081) changes every 8 secs Fastest (150) changes every 0.3 secs 151-220 Colour fading speed Slowest (151) changes every 8 secs Fastest (220) changes every 0.3 secs 221-255 Sound control (mic sensitivity) www.prolight.co.uk Slimline 3HEX12 Series User Manual...
-
Page 8: Master/Slave Mode
JU-- To access the colour change mode press “ENTER” until shows on the LED display. To adjust JA00 JA99 the speed use the “UP” and “DOWN” buttons to select any value from . To select the JF-- strobe mode press “ENTER”, the display will change to , using the “UP” and “DOWN” buttons JF00 JF99 to select any value from Value: 00 - 99 (00 = low, 99 = high) To exit out of any of the above options, press the “MODE” button. Master/slave mode: To set the master unit, press the “MODE” button on the rear of the master unit then select your desired program (sound active, auto, static colour, colour mix or one of the built-in programs). SLAU To set the other units in slave mode, press the “MODE” button on the rear of the unit to show on the LED display and press the “ENTER” button to confirm the setting. The units will now run in sequence with the master unit. To exit out of any of the above options, press the “MODE” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. www.prolight.co.uk Slimline 3HEX12 Series User Manual... - Page 9 Cn02 - Green Cn03 - Blue To exit out of any of the above Cn04 - White options, press the “MODE” button. Cn05 - Amber Cn06 - UV Cn07 - Yellow Cn08 - Light blue Cn09 - Pink Cn10 - Light green Cn11 - Rose pink Cn12 - Peacock blue Cn13 - Orange Cn14 - Pastel blue/white Cn15 - White Colour changing mode JU00~JU99 (speed) JF00~JF99 (flash) Colour fade mode FA00~FA99 (speed) FF00~FF99 (flash) Auto mode AUTO Slave mode SLAV Sound active mode SU00~SU99 DMX mode 2CH, 3CH1, 3CH2, 4CH1, 4CH2, 5CH, 6CH, 9CH Address setting A001~A512 www.prolight.co.uk Slimline 3HEX12 Series User Manual...
-
Page 10: Important Notes
• Now press the “2” button, and all of the • N ow press the “5” button, and all of the R, G, B, A, W and UV LEDs will come on, R, G, B, A, W and UV LEDs will come on, the third digit 2 has been set. The full DMX the third digit 5 has been set. The full DMX address setting has been changed address setting has been changed • N ow press the “DMX MODE” button to save • Now press the “DMX MODE” button to save the new address into memory the new address into the memory Important notes: • Set the DMX address on each fixture before plugging into the DMX controller • The IR remote is cannot be used when the fixture(s) are being controlled with a DMX controller • The maximum IR transmitter distance is 10m - Please make sure that you have the IR remote aimed directly at the front panel of each fixture to be programmed • If you do not press the “DMX MODE” button after you have changed the DMX address when you power down the fixture it will lose the address you have set www.prolight.co.uk Slimline 3HEX12 Series User Manual... -
Page 11: Dmx Setup
DATA cable (DMX cable) requirements (for DMX operation): This fixture can be controlled via DMX-512 protocol. The DMX address is set on the back of the unit. Your unit and your DMX controller require a standard 3-pin XLR connector for data input/output, see image below. Further DMX cables can be purchased from all good sound and lighting suppliers or Pro Light Concepts dealers. Please quote: CABL10 – 2m CABL11 – 5m CABL12 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Slimline 3HEX12 Series User Manual... -
Page 12: Line Termination
5-pin XLR (socket) 3-pin XLR (socket) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Slimline 3HEX12 Series User Manual... -
Page 13: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed of with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Slimline 3HEX12 Series User Manual... -
Page 14: Optional Accessories
DMX MODE SOUND ACTIVE SLAVE SET ADDR 1 2 3 4 5 6 0 7 8 9 Optional IR remote Order code: LEDJ90F Optional Quad Case (Holds 4 x fixtures) Order code: CASE95 To keep up-to-date on the latest accessories and product range additions please visit www.prolight.co.uk www.prolight.co.uk Slimline 3HEX12 Series User Manual... - Page 15 Slimline 3HEX12 Series User Manual...
