Page 1: User Manual

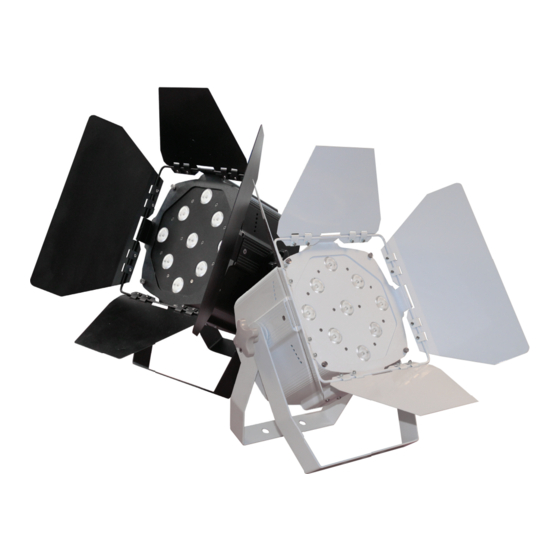

. p r o l i g h t . c o . u k Omni Tri-9 (Order code: LEDJ150 - Black) (Order code: LEDJ153 - White) USER MANUAL... - Page 2 LEDJ Omni Tri-9 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! THIS UNIT ONLY ACCEPTS AN INPUT VOLTAGE OF 240V SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...
- Page 3 LEDJ Omni Tri-9 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 LEDJ Omni Tri-9 Technical specifications You should find inside the LEDJ carton the following items: 1, Omni Tri-9 Unit 2, Instruction manual Technical Specifications: DMX channels: 6 400Hz flicker free 9W Tri Colour LEDs Power supply: AC 240 ~ 50Hz...
- Page 5 LEDJ Omni Tri-9 Operation 1, Static colour mode Mode button - Press the “MODE” button under the LED display, to show “C000”, then press the “ENTER” button to choose one of the static colours using the “UP” and “DOWN” buttons.
- Page 6 LEDJ Omni Tri-9 Operation 6 Channel DMX chart Channel Value Function 000-255 Master dimmer 000-255 Red (0 - 100%) 000-255 Green (0 - 100%) 000-255 Blue (0-100%) No function 5-84 Colour macro 85-169 Colour change 170-255 Colour fade 0-255 Strobe...
- Page 8 www.prolight.co.uk...
