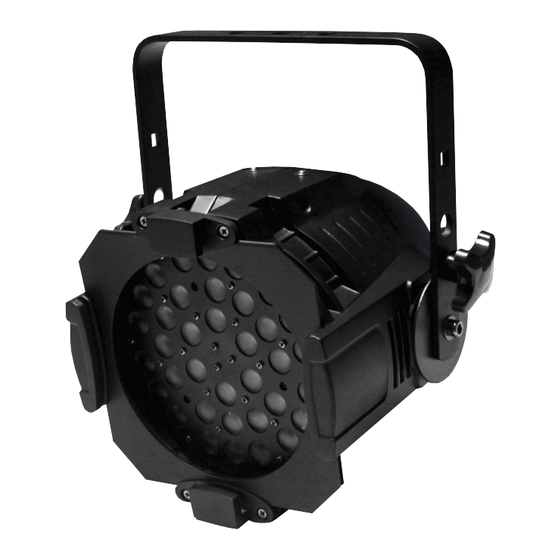

- Page 1 . p r o l i g h t . c o . u k ALU ZOOM TRI PAR 64 Order code: LEDJ115 USER MANUAL...
- Page 2 Alu Zoom Tri Par 64 Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual...
- Page 3 Alu Zoom Tri Par 64 Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...
- Page 4 Alu Zoom Tri Par 64 Technical specifications You should find inside the LEDJ carton the following items: 1, Alu Zoom Tri Par 64 Unit 2, Instruction manual Technical Specifications: DMX Channels: 3/4 or 6 selectable Power supply: 100-240V ~ 50/60Hz...
- Page 5 Alu Zoom Tri Par 64 Overview Overview: 1, DMX output 2, DMX input 3, LED display 4, Power cable 5, Fuse (1A/240V) Setup Operating Instructions The Alu Zoom Tri Par 64 is a DMX-512 controllable, full RGB colour mixing Par Can made up of high efficiency and super bright 3W LED’s.
- Page 6 Alu Zoom Tri Par 64 Operations 1, Static colour mode Mode button - By pressing the “MODE” button under the LED display, the LED display will show “C.00”, then you can select one of the 7 static colours using the “UP” and “DOWN” buttons. The Colours range from 1 - 7 and are listed below: 1, Red 2, Green...
- Page 7 Alu Zoom Tri Par 64 Operations 10, Slave mode Link the units together using a 3-pin DMX cable, then press the MODE button to select one of the above modes on the master unit. On the Slave units set the DMX address to “001”. The Slave units will then follow in sequence with the Master unit.
- Page 8 Alu Zoom Tri Par 64 DMX setup DATA Cable (DMX cable) requirements (for DMX operation): • The Alu Zoom Tri Par 64 can be controlled via DMX-512 protocol. The DMX address can be set on the back of the fixture. Your fixture and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
