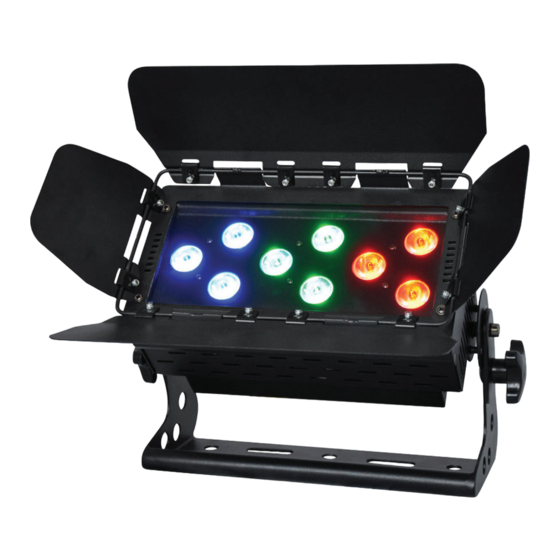

Ledj STAGE CLOUR QUAD User Manual
  1. Manuals
  2. Brands
  3. Ledj Manuals
  4. Lighting Equipment
  5. STAGE CLOUR QUAD
  6. User manual

Ledj STAGE CLOUR QUAD User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
w w w . p r o l i g h t . c o . u k
(Order code: LEDJ107)
USER MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the STAGE CLOUR QUAD and is the answer not in the manual?

Questions and answers

Related Manuals for Ledj STAGE CLOUR QUAD

Summary of Contents for Ledj STAGE CLOUR QUAD

  • Page 1 w w w . p r o l i g h t . c o . u k (Order code: LEDJ107) USER MANUAL...

  • Page 2: Safety Instructions

    LEDJ Stage Colour Quad Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this...

  • Page 3: Operating Determinations

    LEDJ Stage Colour Quad Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •...

  • Page 4: Technical Specifications

    LEDJ Stage Colour Quad Technical specifications You should find inside the LEDJ carton the following items: 1, Stage Colour Quad Unit 2, Instruction manual, 3, Power Cable Technical Specifications: DMX channels: 4/6/12 or 15 selectable 9 x 8W Ultra Bright Quad colour LEDs...
  • Page 5 LEDJ Stage Colour Quad Operation 1, DMX Mode To enter the DMX mode, press the “MODE” button to show “A001” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the DMX address from 001-512.

  • Page 6: Operation

    LEDJ Stage Colour Quad Operation 7, One Way Flow Mode To enter the One Way Flow mode, press the “MODE” button to show “PR.05” on the LED display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to set the speed from 00 - 99.
  • Page 7 LEDJ Stage Colour Quad DMX Charts 4 Channel DMX chart Channel Value Function 000-255 Red 0-100% 000-255 Green 0-100% 000-255 Blue 0-100% 000-255 White 0-100% 6 Channel DMX chart (default) Channel Value Function 000-255 000-255 Green 000-255 Blue 000-255 White...
  • Page 8 LEDJ Stage Colour Quad DMX Charts 12 Channel DMX chart Channel Value Function 000-255 Red 1 000-255 Green 1 000-255 Blue 1 000-255 White 1 000-255 Red 2 000-255 Green 2 000-255 Blue 2 000-255 White 2 000-255 Red 3...
  • Page 9 LEDJ Stage Colour Quad DMX Setup DMX-512: • DMX (Digital Multiplex) is a universal protocol used as a form of communication between intelligent fixtures and controllers. A DMX controller sends DMX data instructions form the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture via the DATA “IN”...
  • Page 10 LEDJ Stage Colour Quad DMX Setup Notice: • Be sure to follow figures 2 & 3 when making your own cables. Do not connect the cable’s shield conductor to the ground lug or allow the shield conductor to come in contact with the XLR’s outer casing.
