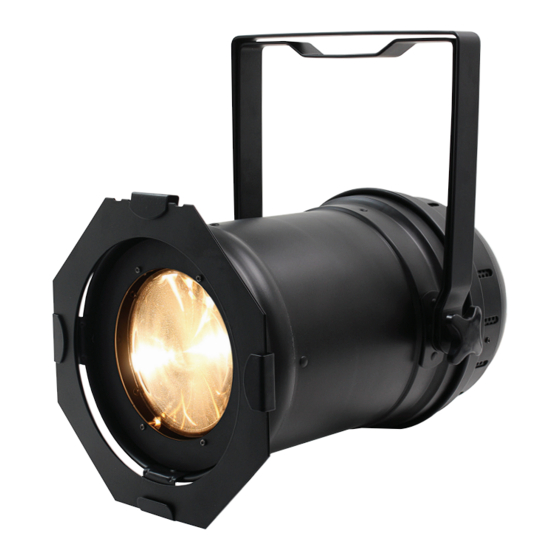

Stage Par CZ200 3200K
User Manual
Order code: LEDJ193

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stage Par CZ200 3200K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ledj Stage Par CZ200 3200K

Summary of Contents for Ledj Stage Par CZ200 3200K

  • Page 1 Stage Par CZ200 3200K User Manual Order code: LEDJ193...

  • Page 2: Safety Advice

    Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Stage Par CZ200 3200K User Manual...
  • Page 3 In the box: 1 x fixture, 09 - Safety eye 1 x filter frame, 10 - Hanging bracket 1 x power cable 11 - Hanging bracket & 1 x user manual adjustment knob www.prolight.co.uk Stage Par CZ200 3200K User Manual...
  • Page 4 N S t No DMX signal L A S t MENU L I N E S q U A Dimming curves C u r V I S q U S C U r www.prolight.co.uk Stage Par CZ200 3200K User Manual...
  • Page 5 - - - - Fixture temperature F H R S - - - H Fixture hours Y E S R E S T Reset factory settings V - - - V E R Software version www.prolight.co.uk Stage Par CZ200 3200K User Manual...
  • Page 6 000-050 Default (set on unit) 128-159 Pulse strobe (slow-fast) 051-100 Linear 160-191 Open 101-150 Square 192-223 Random strobe (slow-fast) 151-200 Inverse Square 224-255 Open 201-240 S-Curve 241-250 No function 251-255 Reset (hold 5s) www.prolight.co.uk Stage Par CZ200 3200K User Manual...
  • Page 7 Press the “ENTER” button and use the “UP” and “DOWN” buttons to choose between Press the “ENTER” button to confirm the setting. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Stage Par CZ200 3200K User Manual...

  • Page 8: Fixture Temperature

    LED display. Now press the “ENTER” button. The unit will now display the fixtures software version. To exit out of any of the above options, press the “MENU” button. www.prolight.co.uk Stage Par CZ200 3200K User Manual...

  • Page 9: Dmx Setup

    3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Stage Par CZ200 3200K User Manual...

  • Page 10: Line Termination

    3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Stage Par CZ200 3200K User Manual...
  • Page 11 Please note: Caution should be used when power linking other fixtures to the Stage Par CZ 200 3200K as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source. www.prolight.co.uk Stage Par CZ200 3200K User Manual...

  • Page 12: Weee Notice

    Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Stage Par CZ200 3200K User Manual...
