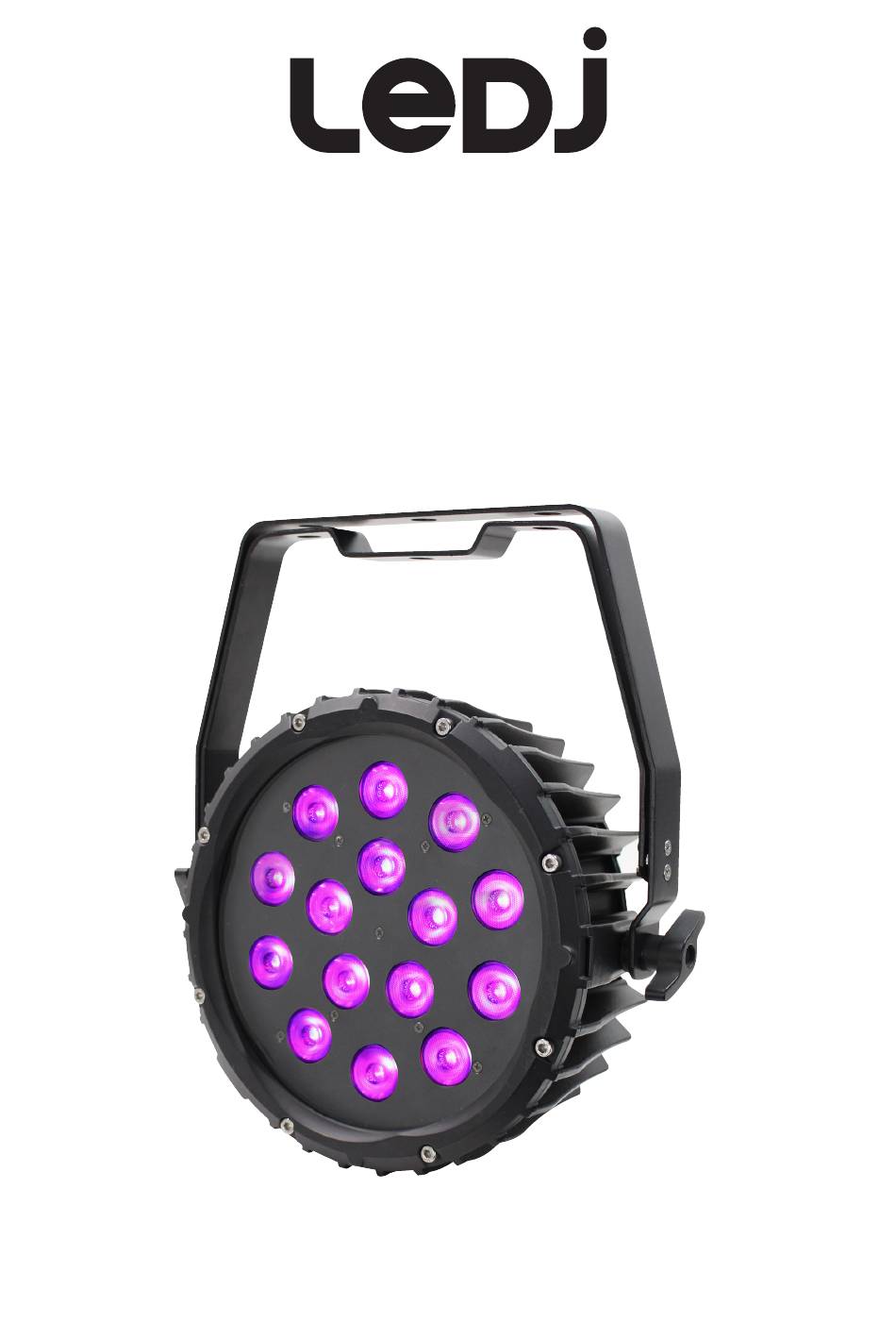

- Page 1 Spectra Par 15Q8 PRO Exterior Fixture User Manual Order code: LEDJ281A...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Spectra Par 15Q8 PRO User Manual... - Page 3 Spectra Par 15Q8 PRO IP65 The exterior Spectra Par 15Q8 PRO features 15 x 8W quad-colour LEDs, delivering a smooth wash of colour, ranging from intense, rich saturated hues through to pastel shades. Controllable via the onboard 4 button LED menu system for auto, static colour or master/slave modes, with the option of DMX control for larger installations.
-
Page 4: Dmx Channel Mode
108-134 Program 5 209-227 GW 135-161 Program 6 228-246 BW When 027-255 162-188 Program 7 247-255 RGBW use CH7 189-215 Program 8 000-255 Strobe (slow-fast) for speed 216-242 Program 9 (slow-fast) 243-255 Program 10 www.prolight.co.uk Spectra Par 15Q8 PRO User Manual... -
Page 5: Master/Slave Mode
“SETUP” button to confirm the setting. The units will now run in sequence with the master unit. To exit out of any of the above options, press the “MODE” button. Please ensure that all slave units are set to the same DMX channel mode as the master unit. www.prolight.co.uk Spectra Par 15Q8 PRO User Manual... -
Page 6: Auto Mode
0 00~b. 2 55 Blue u. 0 00~u. 2 55 White Auto mode AUTO Slave mode SLAV DMX mode 4CH, 6CH, 8CH Address setting d. 0 01~d. 5 12 Fixture hours LifE www.prolight.co.uk Spectra Par 15Q8 PRO User Manual... -
Page 7: Dmx Setup
CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. Note: To maintain IP65 rating, IP rated DMX cables must de used. www.prolight.co.uk Spectra Par 15Q8 PRO User Manual... -
Page 8: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Spectra Par 15Q8 PRO User Manual... -
Page 9: Power Linking
Please note: Caution should be used when power linking other fixtures to the Spectra Par 15Q8 PRO as the power consumption of other fixtures will vary. LED fixtures fitted with switch mode power supplies often require 2/3 times more current on startup, these may require their own power source. -
Page 10: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Spectra Par 15Q8 PRO User Manual... - Page 11 Spectra Par 15Q8 PRO User Manual...
