Summary of Contents for Ledj PERFORMER 54 RGBW LEDJ250
-

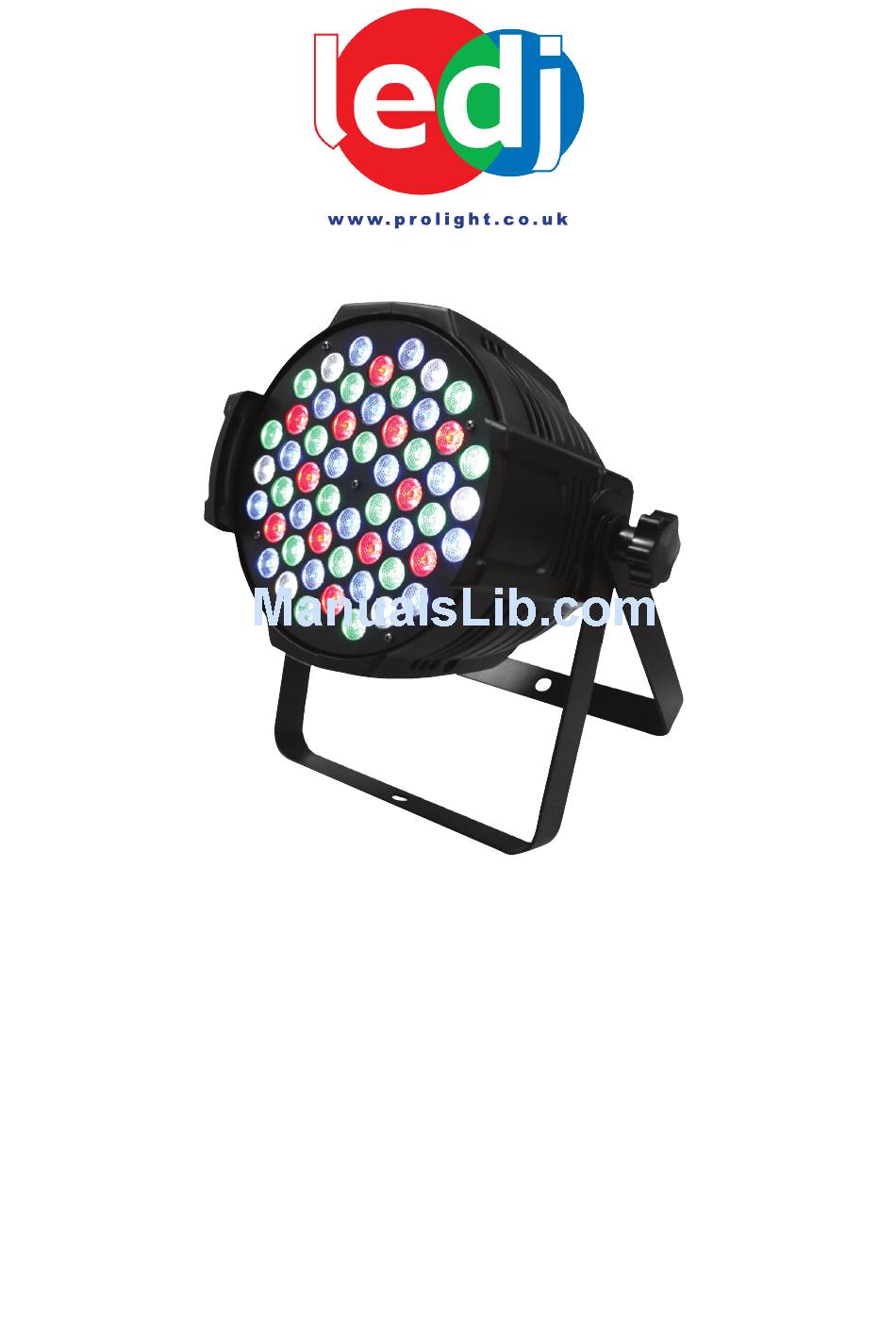

Page 1: User Manual
PERFORMER 54 RGBW Order code: LEDJ250 USER MANUAL... -
Page 2: Safety Instructions
Performer 54 RGBW Safety WARNING FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! CAUTION! Keep this equipment away from rain, moisture and liquids. SAFETY INSTRUCTIONS Every person involved with the installation, operation & maintenance of this equipment should: Be competent Follow the instructions of this manual... -
Page 3: Operating Determinations

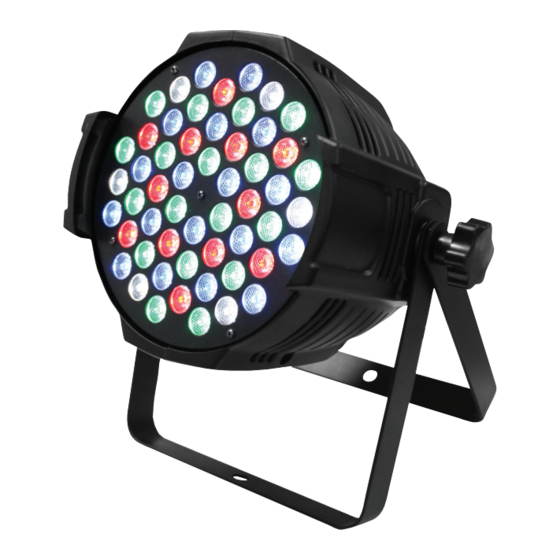

Performer 54 RGBW Safety IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non-observance of this manual or any unauthorised modification to the equipment. • Never let the power-cable come into contact with other cables. Handle the power-cable and all mains voltage connections with particular caution! •... - Page 4 Performer 54 RGBW Technical Specifications You should find inside the LEDJ carton the following items: 1, 18 RGBWA unit 2, Instruction manual Performer 54 RGBW Featuring 54 x 3W LEDs (R: 12, G: 18, B:18, W: 6), the Alu Performer Par punches out astonishing spots of colour that can serve as a stunning show for various applications from uplighting a large venue and lighting a stage for live performances.
- Page 5 Performer 54 RGBW Operations Colour change mode To select the colour change mode, press the “MENU” button to show “CC00” on the display. Now press the “ENTER” button and use the “UP” and “DOWN” buttons to adjust the speed of the colour change.
-
Page 6: Master/Slave Mode
Performer 54 RGBW Operations Master/slave mode To set the unit as a master, simply select any of the above modes and set the slave units into DMX mode, address 001. The slave units will now follow in sequence with the master unit. DMX chart: 4 Channel: Channel... - Page 7 Performer 54 RGBW DMX Setup DATA Cable (DMX cable) requirements (for DMX operation): • The Performer Series can be controlled via DMX-512 protocol. The DMX address can be set on the back of the fixture. Your fixture and your DMX controller require a standard 3-pin XLR connector for data input/output (figure 1).
-
Page 8: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life.
