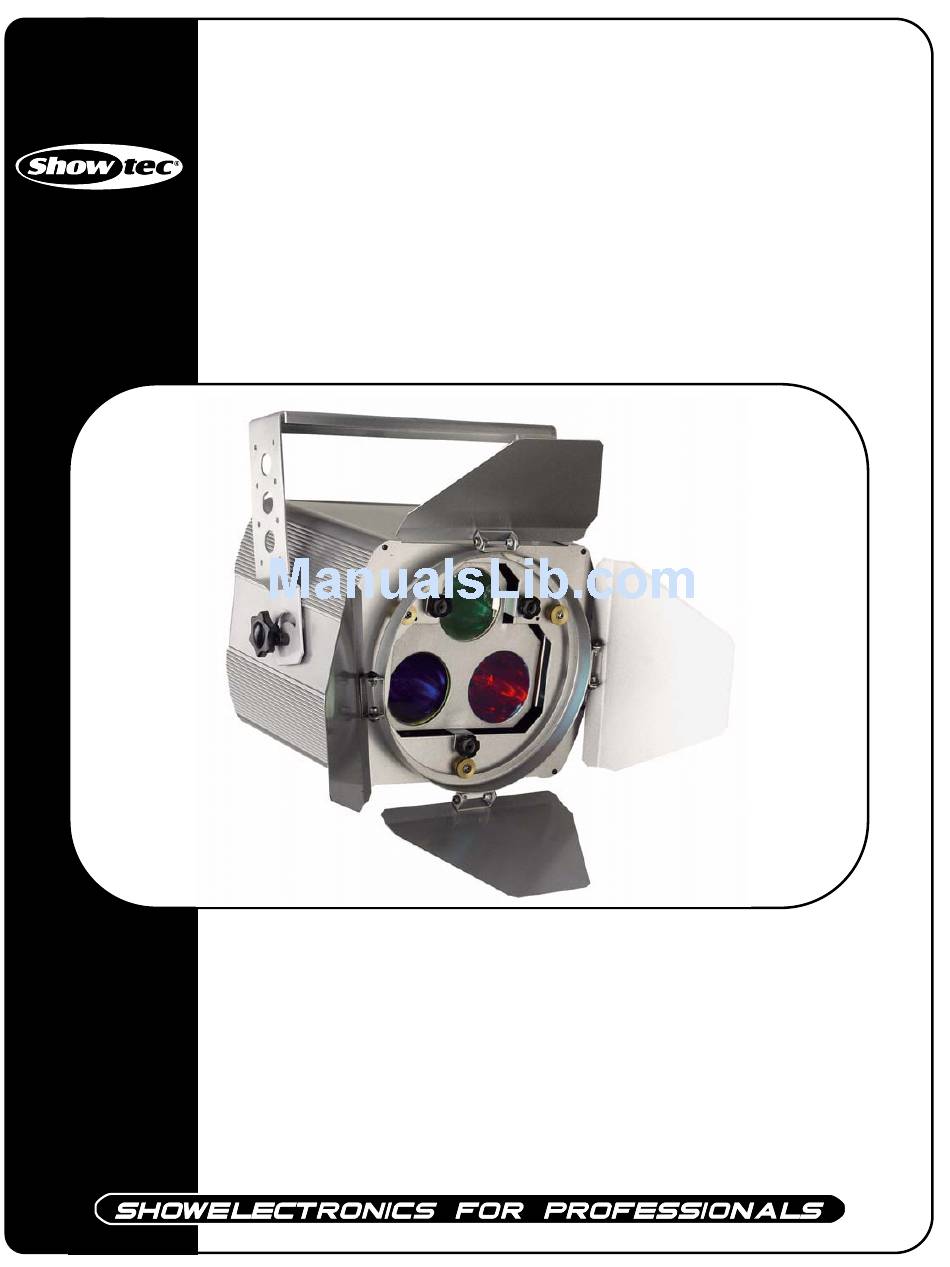

- Page 1 RGB Theatre Spot ORDERCODE 50463...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec RGB Theatre Spot Product Guide ™ Warning..…...................………………………………………….. Safety-instructions………………………………………………………………………………………….…. Operating Determinations……………………………………………………………………………………. Description..…................……….………………………………… Features and Overview ………………………………...….……………….………….………………….…. Backside…………………………………………………...…...….……………….…………………...….…. Installation................…...…………………………………….….. Set Up and Operation..............……..……………………………….… DMX work mode………….………………………………………………………….…………………... Master work mode……….………………………………………………………….………………….…..Button Function…………….………………………………………………………….………………….…..Function Table…………….……………………………………………………….….………………….…..DMX Channel Table............……..……………………………………………. Master Mode Color Table..........……..…………………………………………….. -
Page 4: Warning
WARNING CAUTION! Keep this device away from rain and moisture! Unplug mains lead before opening the housing! FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! SAFETY INSTRUCTIONS Every person involved with the installation, operation and maintenance of this device has to: be qualified follow the instructions of this manual CAUTION! Be careful with your operations. -
Page 5: Operating Determinations
The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature. If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely • (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Description
Description of the device Features The Showtec RGB Theatre Spot is a Theatrelight from Showtec with RGB-Colormixing. • With use of DMX-Controller up to 16.000.000 Colors • 3 DMX-Channels, for every color one channel: R/G/B • MASTER- and DMX workmode... -
Page 7: Backside
Backside Fig. 2 6 7 8 9 10 11 12 13 3) IEC Powerconnector and Fuse 4) Microphone 5) Audio Sensitivity 6) LCD Display 7) Mode 8) Up 9) Down 10) Ventilator 11) DMX Out 12) Audio In 13) DMX In... -
Page 8: Installation
Installation Installing the Lamp The Showtec RGB Theatre Spot uses 3x A1/244 500W Lamps (ordercode 80701P / 80701G), as manufactured by all popular manufacturers. Use only the appropriate lamp for your unit. Note that, product versions that use other lamps, may be offered in the future. Check your product specification label for information. -
Page 9: Master Work Mode
MASTER-work mode 1. AUTO-Mode: Auto run program and built-in colors (40 Colors, see Master-Color Table). Parameter: d:XXX (000-100%): Color intensity, adjust output control. F:XXX (000-100): Fade-Time Parameter (0-60S). S:XXX (001-100): Run Speed Parameter (50mS/Step-60S/Step). 2. AUDIO-Mode: Music-controlled programs and built-in colors (40 Colors, see Master-Color Table) Parameter: d:XXX (000-100%): Color intensity, adjust output control. -
Page 10: Dmx Channel Table
DMX Channel Table The color and the intensity can be adjusted according to the next table: Note: 1. " N" denotes DMX value (0-255). For example: If the DMX value is 239, Red intensity is 50-(239-237)x6=38%, Green intensity is 25-(239-237)x6=13%, Blue intensity is100%. 2. -
Page 11: Master Mode Color Table
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec RGB Theatre Spot requires almost no maintenance. However, you should keep the unit clean. -
Page 12: Replacing The Fuse
4. If you are unable to determine the cause of the problem, do not open the device, as this may damage the unit and the warranty will become void. 5. Return the device to your Showtec dealer. No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. -
Page 13: Product Specifications
Product Specification Model: Showtec RGB Theatre Spot Voltage: AC 230V-50Hz (CE) Cooling: Ventilator Fuse: 10A / 250V 5 x 20mm Dimensions: 320 x 285 x 245 mm (LxWxH) Weight: 6,5 kg Operation and Programming DMX-control via standard DMX-controller Audio trigger: built-in microphone... - Page 14 2005 Showtec.
