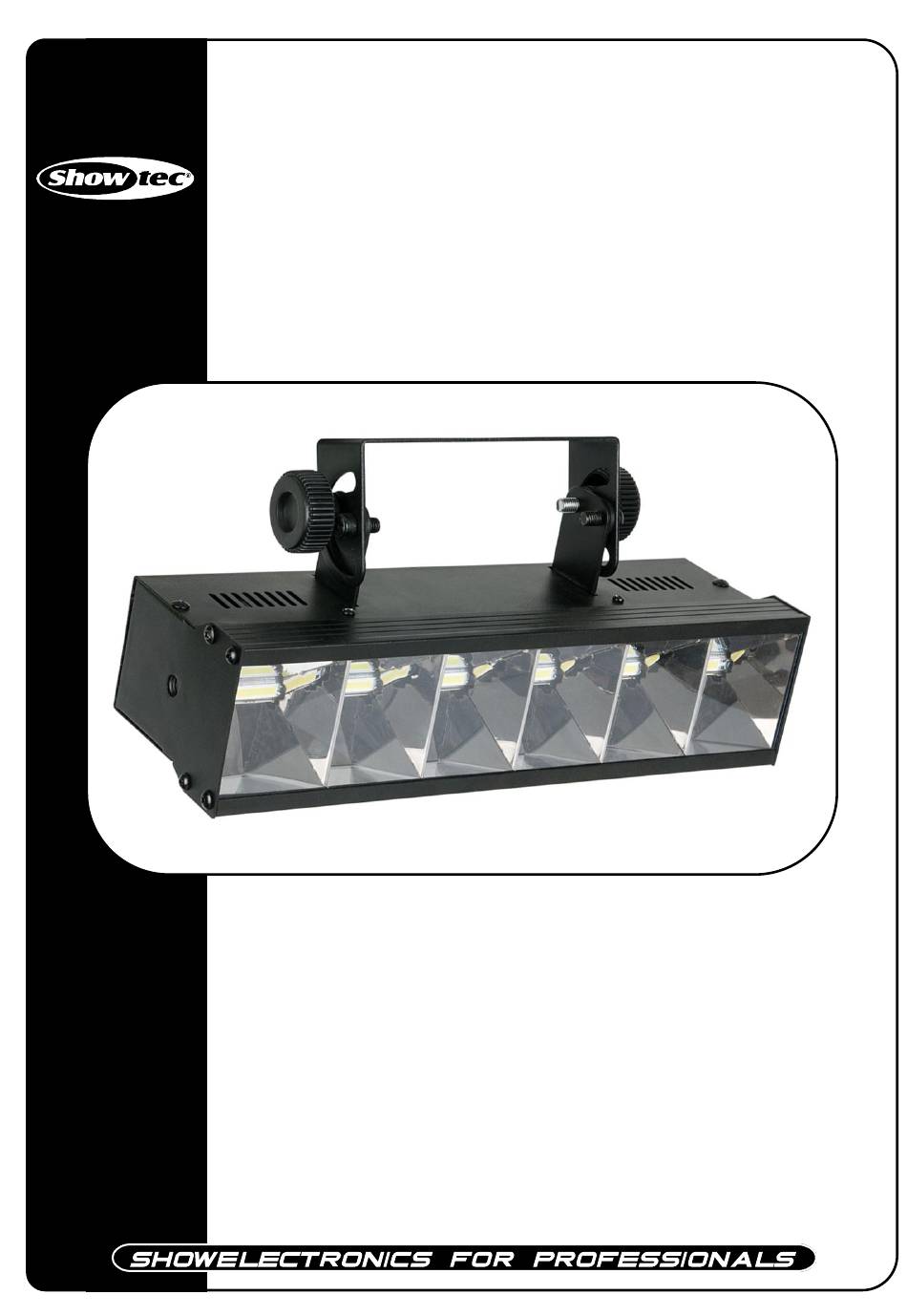

- Page 1 Ignitor-6 Section Strobe ORDERCODE 40292 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Installation ................................... 7 Set Up and Operation ............................... 7 Control Modes ................................7 One Ignitor-6 Section Strobe (Built-in Programs) ....................7 One Ignitor-6 Section Strobe (Sound-control) ....................7 Multiple Ignitor-6 Section Strobes (Master/Slave control) ................8 Multiple Ignitor-6 Section Strobe (DMX Control)....................8 Fixture Linking ................................. -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Ignitor-6 Section Strobe with power cable 0,75m • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. - Page 5 For replacement use fuses of same type and rating only. The user is responsible for correct positioning and operating of the Ignitor-6 Section Strobe. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 6: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure: If the Ignitor-6 Section Strobe is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the Ignitor-6 Section Strobe, with the mounting-bracket, to the trussing system. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device

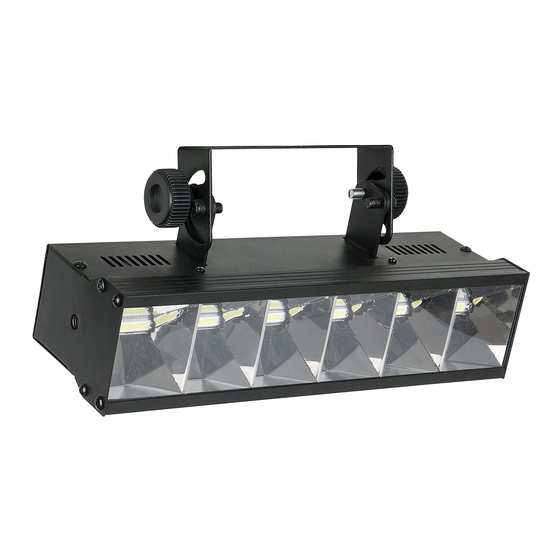

Description of the device Features The Showtec Ignitor-6 Section Strobe is a light effect with high output and great effects. • Total control of all individual strobe sections • Reflectors have been improved to give more output • LED System: Cool White •... -
Page 9: Backside
Plug the end of the electric mains power cord into a proper electric power supply socket. 3) When the Ignitor-6 Section Strobe is not connected by a DMX-cable, it functions as a stand-alone device. Please see page 12 for more information about the built-in programs. -
Page 10: Multiple Ignitor-6 Section Strobes (Master/Slave Control)
1) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. Plug the end of the electric mains power cord into a proper electric power supply socket. Use a 3-p XLR cable to connect the Ignitor-6 Section Strobe. The pins:... -
Page 11: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 12: Control Panel
When using multiple Ignitor-6 Section Strobe’s, make sure you set the DMX addresses right. Therefore, the DMX address of the first Ignitor-6 Section Strobe should be 1(001); the DMX address of the second Ignitor-6 Section Strobe should be 1+8=9; the DMX address of the third Ignitor-6 Section Strobe should be 9+8=17, etc. -
Page 13: Menu Overview
Menu Overview Main Menu Options 1. DMX Mode 2. Master/ Slave 3. Channel Mode (3CH/8CH) 4. Sound-controlled 5. Built-in Programs 6. Display On/Off 7. Display normal/Reverse 8. Version... -
Page 14: Dmx Mode
1) Press the Up / Down buttons on the device, until the display shows 2) Press Enter to enter the Built-in Program Menu. With this menu you can set the Built-in Program Mode of the Ignitor-6 Section Strobe. You can choose 3 built-in programs and the dimmer of each program. Built-in Program 1... -
Page 15: Led Display Mode
LED display upside-down. 8. Version Number With this menu you can view the version number of your Ignitor-6 Section Strobe. 1) Press the Up / Down buttons on the device, until the display shows 2) Press Enter to show the version number. -
Page 16: Dmx Channels
DMX Channels 3 Channels Channel 1 – Static LEDs and Built-in Programs 0-10 No Function 11-40 LED 1 On 41-70 LED 2 On 71-100 LED 3 On 101-130 LED 4 On 131-160 LED 5 On 161-190 LED 6 On 191-210 LED 1,2, 3, 4, 5, 6 On 211-230 Running Light from from left to right... -
Page 17: Maintenance
Maintenance The Showtec Ignitor-6 Section Strobe requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. - Page 18 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 19: Product Specification
Product Specification Model: Showtec Ignitor-6 Section Strobe • Total control of all individual strobe sections • Reflectors have been improved to give more output • LED System: Cool White • Power Supply: 100-240V AC • Power Consumption: 45W • Light source: 6 x 5W LEDs •...
