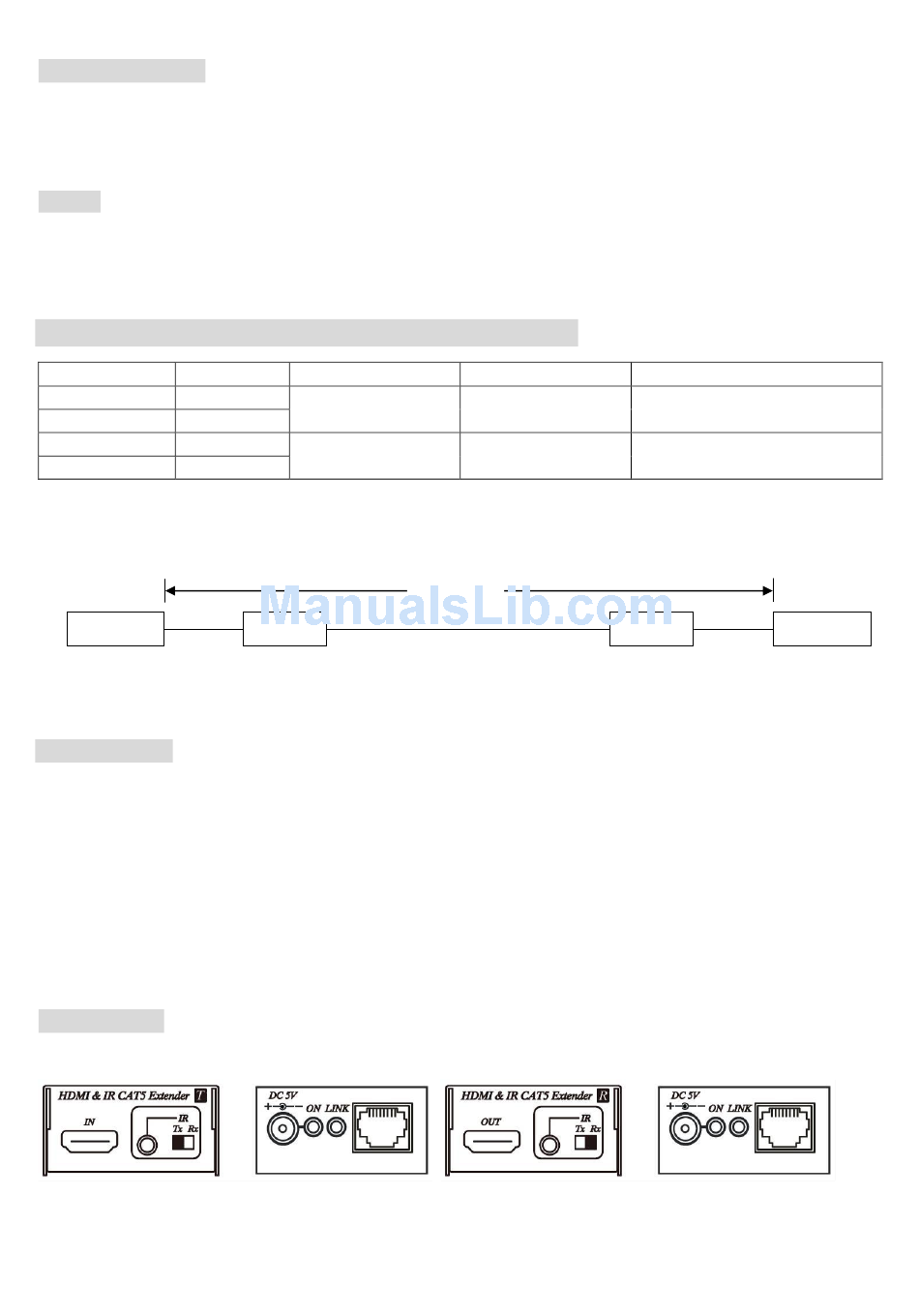

LED Indication:

Power GREEN
Link BLUE
Cable:
Link cable recommend use high quality Cat.5e 、 Cat.6 、 Cat.6a 、 Cat.7 UTP / STP or FTP cable.
Poor quality cable or network connection or improper construction will cause unstable
connection, video or sound disruptions, picture noise appears.
HDBaseT Distance chart by different cable:
Cable Type Range
CAT.5e / CAT.6
CAT.6a / CAT.7
CAT.5e / CAT.6
CAT.6a / CAT.7
If connection through the wall socket, the cable length must less 5 meters between HDMI
extender and wall jack, as below drawing:
Transmitter
< 5M
10/100Mbps network connection using general CAT5e cable and working distance up to 60M.
RJ45 Define:
Video Link (TIA/EIA-568-B)
1. Orange-white
2. Orange
3. Green-white
4. Blue
5. Blue-white
6. Green
7. Brown-white
8. Brown

Panel view:

HE02EIT
on (power)
on (linking)
Flash (low-power mode)
Pixel Clock Rate
60 M
≦ 225MHz
70 M
35 M
> 225MHz
40 M
Wall Jack
DATA0 +
DATA0 -
DATA1 +
DATA2 +
DATA2 -
DATA1 -
DATA3 +
DATA3 -
Video Data Rate
≦ 5.3Gbps (Full HD
Video)
> 5.3Gbps (Ultra HD
Video)
CAT6a 70M
HE02EIR
Supported Video
1080p 60Hz 36 bit
1080p 60Hz 48 bit
1080p 60Hz 3D，4K x 2K 30Hz
Wall Jack Receiver
< 5M
