Valcom 12" & 16" Wireless Clock Installation Manual
INSTRUCTIONS
1. Connect the wiring as shown on the wiring diagram (110V or 24V
ONLY).
2. Mount both plastic anchors in the wall.
3. Insert the sheet metal screws (#10) through the mounting bracket into
the plastic anchors.
4. Plug the connector into the movement (110V or 24V ONLY).
5. Hang the clock on the mounting bracket.
6. Put the screw (4mm) through the hole on the top of the clock into the
hole at the top of the mounting bracket.
Valcom 5614 Hollins Road Roanoke, VA 24019 Phone: (540) 563-2000 Fax: (540) 362-9800 www.valcom.com Valcom 5614 Hollins Road Roanoke, VA 24019 Phone: (540) 563-2000 Fax: (540) 362-9800 www.valcom.com

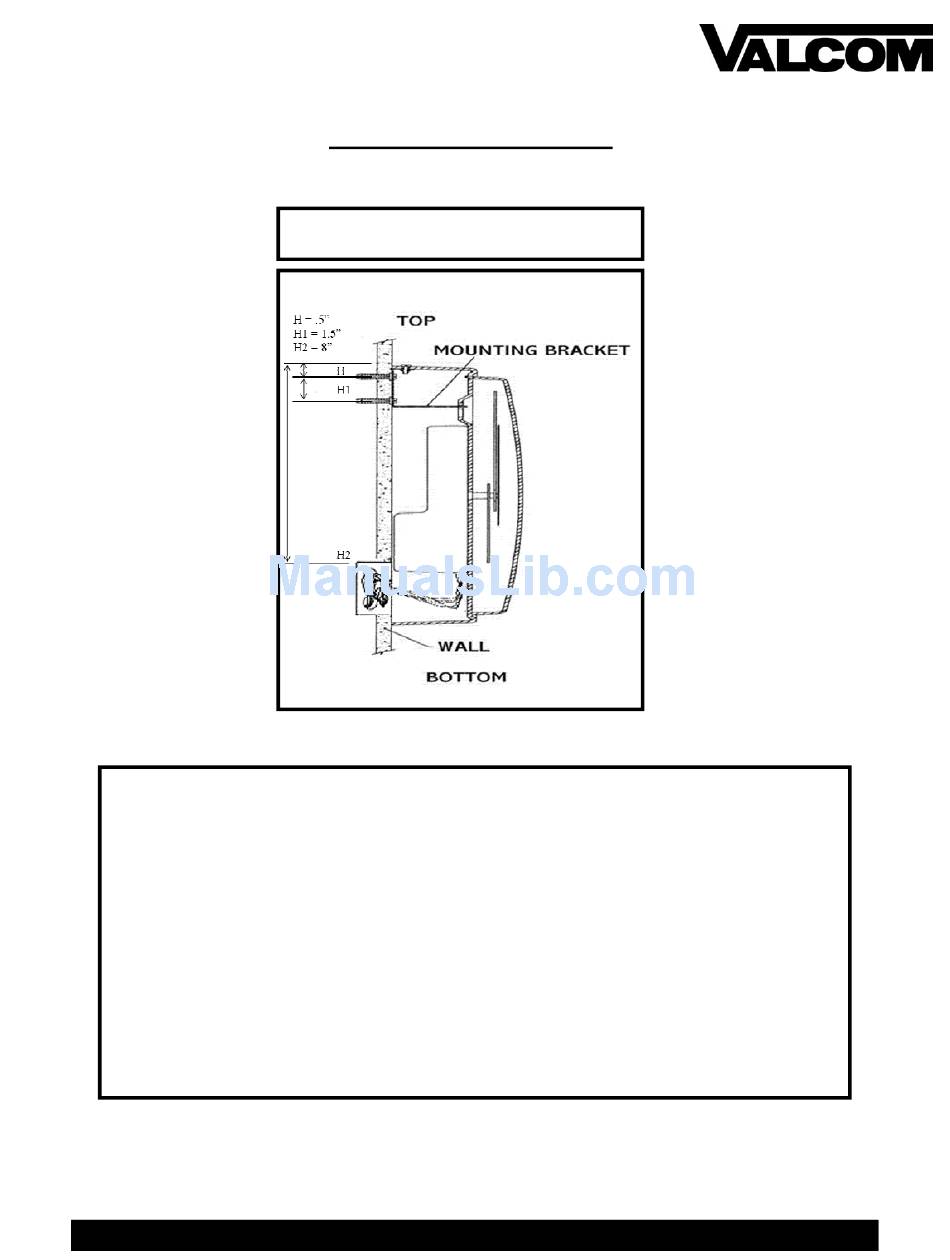

Wall Mount Installation

24 Volt/110 volt options shown in diagram
12" CLOCK
(Rev 1.02)
