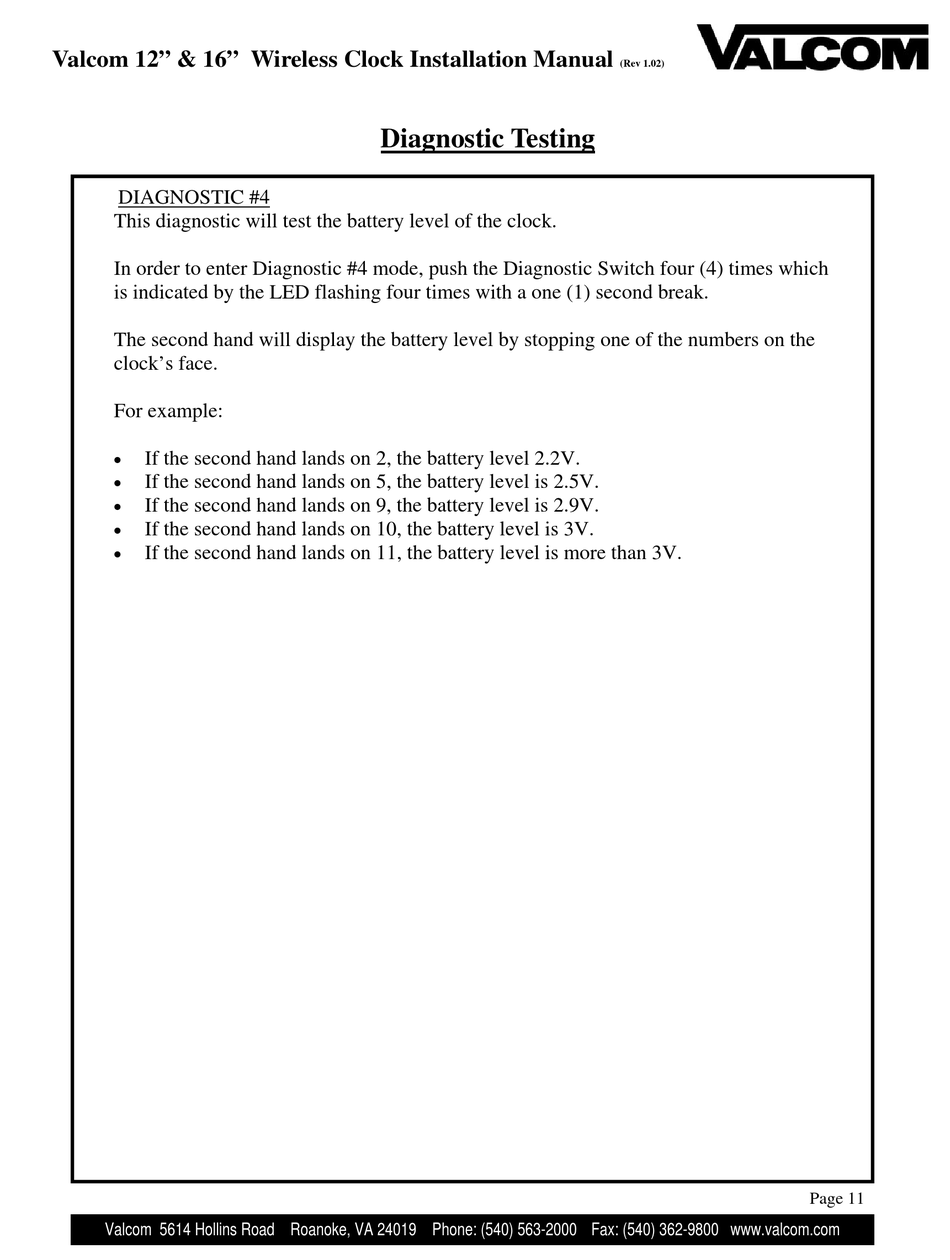

DIAGNOSTIC #4
This diagnostic will test the battery level of the clock.
In order to enter Diagnostic #4 mode, push the Diagnostic Switch four (4) times which
is indicated by the LED flashing four times with a one (1) second break.
The second hand will display the battery level by stopping one of the numbers on the
clock's face.
For example:

If the second hand lands on 2, the battery level 2.2V.

If the second hand lands on 5, the battery level is 2.5V.

If the second hand lands on 9, the battery level is 2.9V.

If the second hand lands on 10, the battery level is 3V.

If the second hand lands on 11, the battery level is more than 3V.
