Double Mount Installation - Valcom 12” Installation Manual

Valcom 12" & 16" Wireless Clock Installation Manual
INSTRUCTIONS

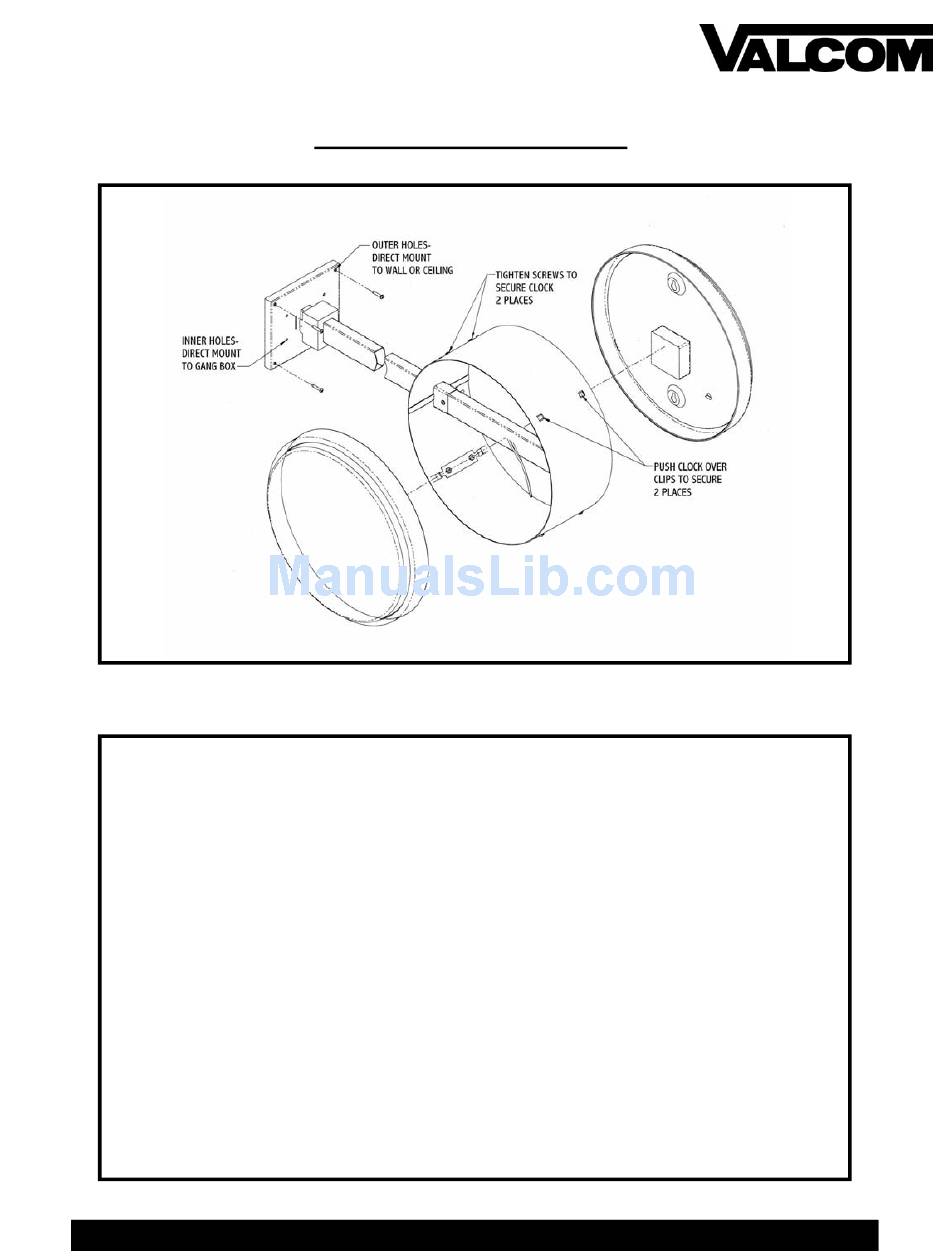

1. Screw the mounting bracket to the double gang box using four (4) inner
holes on mounting bracket, or mount the mounting bracket directly to
the wall or ceiling using the four (4) outer holes.
2. Insert the wires through the mounting bracket (110V or 24V ONLY).
3. Route the wires through the clock hanging rod.
4. Secure hanging rod to mounting bracket with screws supplied, and place
cover over connection.
5. Connect the wiring as shown on the wiring diagrams.
6. Plug the connectors into the movements (110V or 24V ONLY).
7. Place the clocks on the double mount housing and tighten the screws to
secure clocks as shown above.
