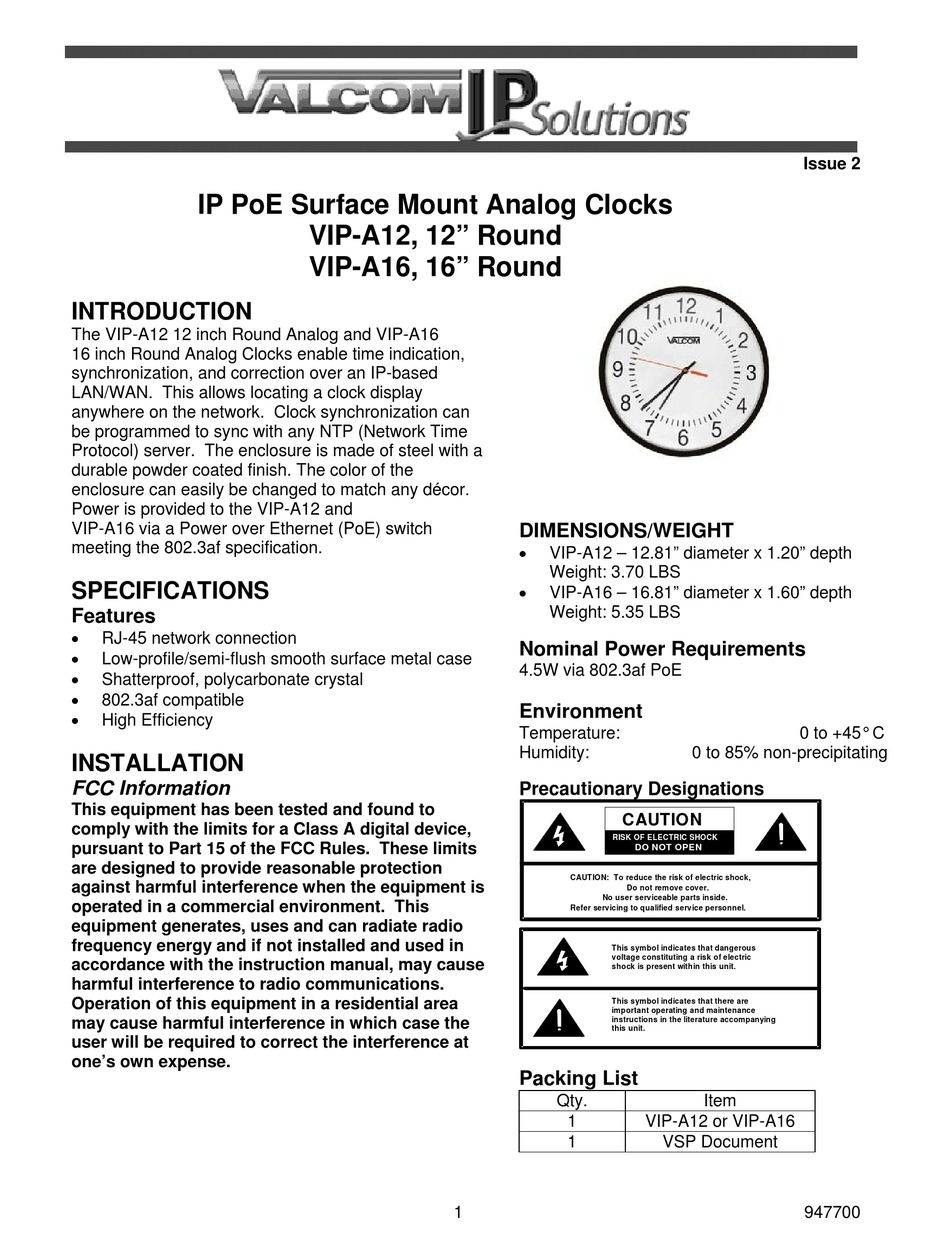

Valcom VIP-A12 Manual

IP PoE Surface Mount Analog Clocks
INTRODUCTION

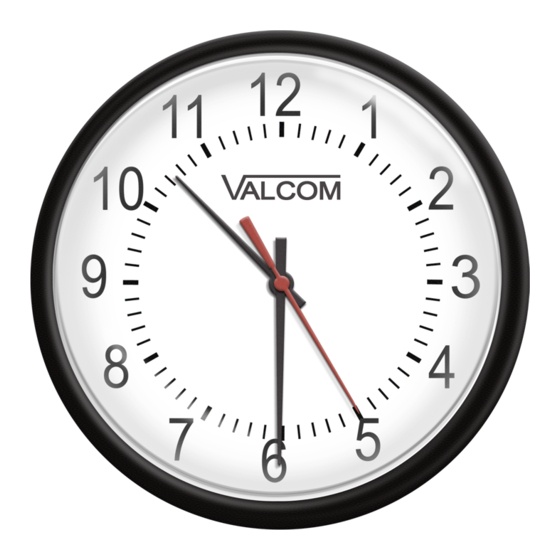

The VIP-A12 12 inch Round Analog and VIP-A16
16 inch Round Analog Clocks enable time indication,
synchronization, and correction over an IP-based
LAN/WAN. This allows locating a clock display
anywhere on the network. Clock synchronization can
be programmed to sync with any NTP (Network Time
Protocol) server. The enclosure is made of steel with a
durable powder coated finish. The color of the
enclosure can easily be changed to match any décor.
Power is provided to the VIP-A12 and
VIP-A16 via a Power over Ethernet (PoE) switch
meeting the 802.3af specification.

SPECIFICATIONS

Features

RJ-45 network connection

Low-profile/semi-flush smooth surface metal case

Shatterproof, polycarbonate crystal

802.3af compatible

High Efficiency
INSTALLATION

FCC Information

This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference when the equipment is
operated in a commercial environment. This
equipment generates, uses and can radiate radio
frequency energy and if not installed and used in
accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of this equipment in a residential area
may cause harmful interference in which case the
user will be required to correct the interference at
one's own expense.
VIP-A12, 12" Round
VIP-A16, 16" Round
1
DIMENSIONS/WEIGHT

VIP-A12 – 12.81" diameter x 1.20" depth
Weight: 3.70 LBS

VIP-A16 – 16.81" diameter x 1.60" depth
Weight: 5.35 LBS
Nominal Power Requirements
4.5W via 802.3af PoE
Environment
Temperature:
Humidity: 0 to 85% non-precipitating
Precautionary Designations
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To reduce the risk of electric shock,
Do not remove cover.
No user serviceable parts inside.
Refer servicing to qualified serv ice personnel.
This symbol indicates that dangerous
voltage constituting a risk of electric
shock is present within this unit.
This symbol indicates that there are
important operating and maintenance
instructions in the literature accompanying
this unit.

Packing List

Qty.
1 VIP-A12 or VIP-A16
1 VSP Document
Issue 2
0 to +45° C
Item
947700
