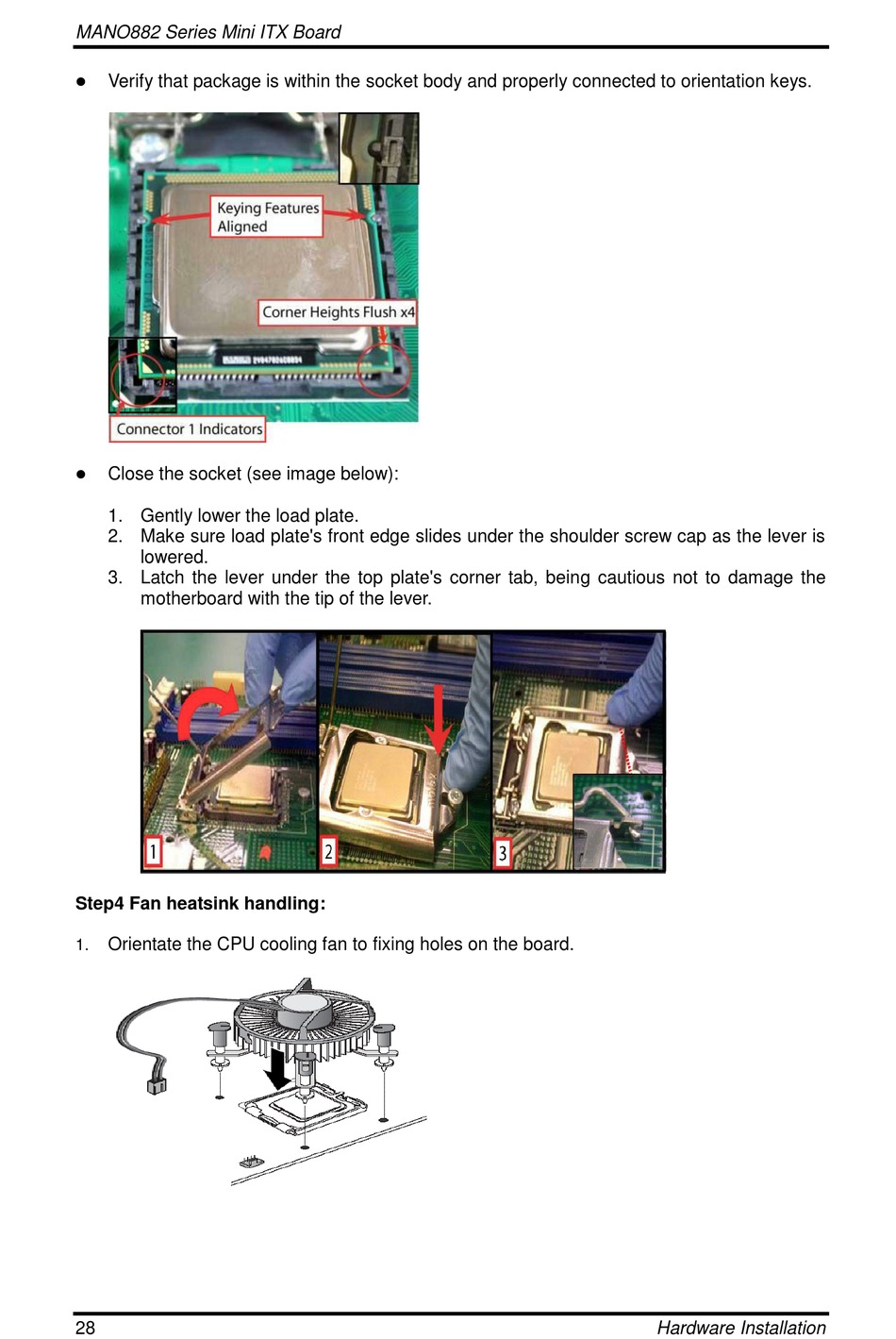

 Verify that package is within the socket body and properly connected to orientation keys.
 Close the socket (see image below):
1. Gently lower the load plate.
2. Make sure load plate's front edge slides under the shoulder screw cap as the lever is
lowered.
3. Latch the lever under the top plate's corner tab, being cautious not to damage the
motherboard with the tip of the lever.
Step4 Fan heatsink handling:
Orientate the CPU cooling fan to fixing holes on the board.
1.
