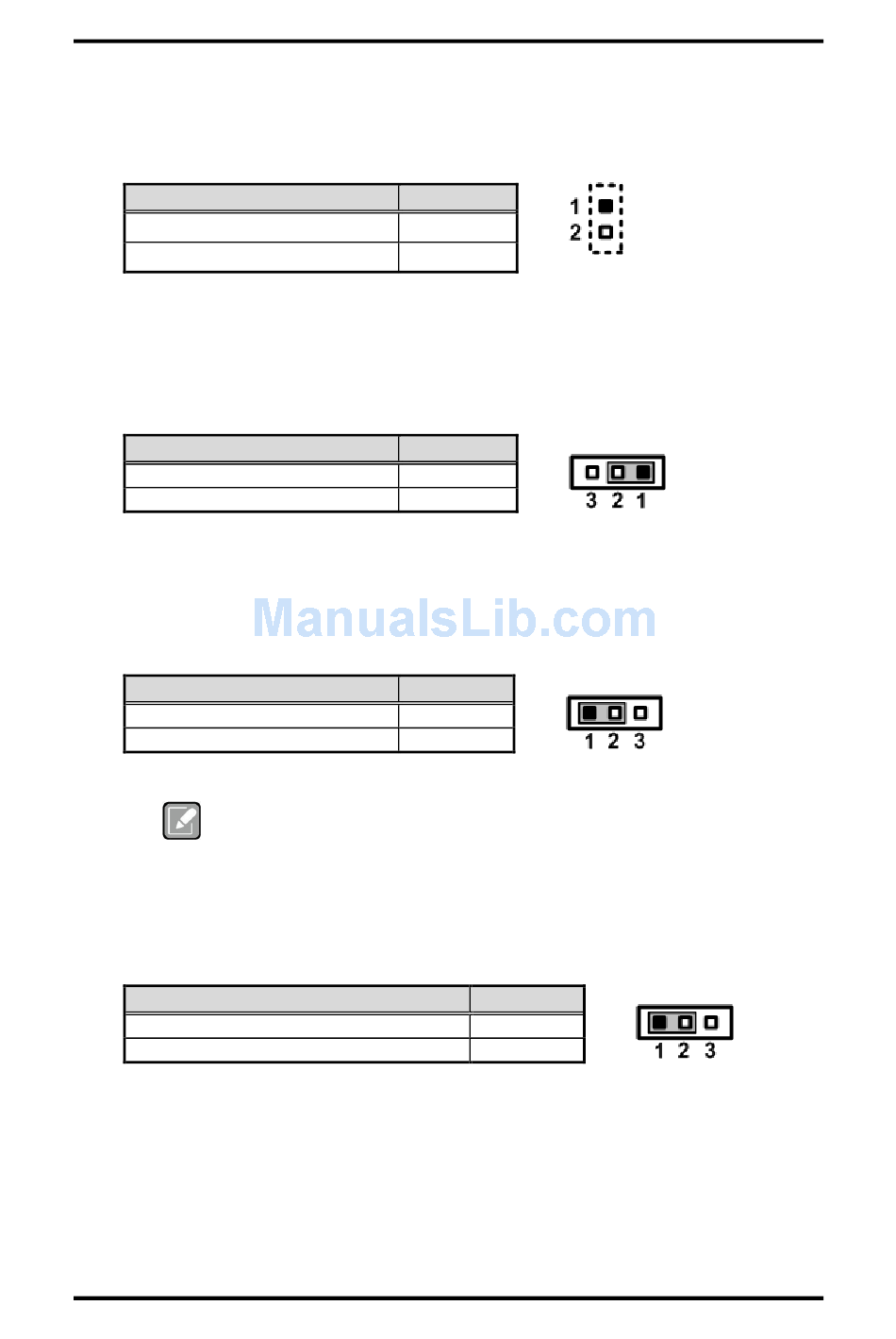

LVDS +12V Voltage Selection (JP7) (Optional)

The board supports voltage selection for flat panel displays. Use JP7 to set LVDS
connector (CN19) pin 1~6 VCCM to +12V level. To prevent hardware damage, before
connecting please make sure that the input voltage of flat panel is correct.
Function
+12V level
NA (Default)
2.3.6

LVDS +3.3V/+5V Voltage Selection (JP8)

The board supports voltage selection for flat panel displays. Use JP8 to set LVDS
connector (CN19) pin 1~6 VCCM to +3.3V or +5V. To prevent hardware damage, before
connecting please make sure that the input voltage of flat panel is correct.
Function
+3.3V (Default)
+5V
2.3.7

Auto Power On (JP9)

If this jumper is enabled for power input, the system will be automatically power on
without pressing soft power button. If this jumper is disabled for power input, it is
necessary to manually press soft power button to power on the system.
Function
Disable auto power on (Default)
Enable auto power on
Note
2.3.8

PCI-Express Bifurcation Setting (JP10)

JP10 is for PCI-Express bifurcation setting. See table below for detailed information.
Function
Set CN15 to one x16 PCI-Express (Default)
Set CN15 to two x8 PCI-Express
10
Setting
1-2 close
1-2 open
Setting
1-2 close
2-3 close
Setting
1-2 close
2-3 close
This function is similar to the feature of power on after power failure,
which is controlled by hardware circuitry instead of BIOS.
Setting
1-2 close
2-3 close
