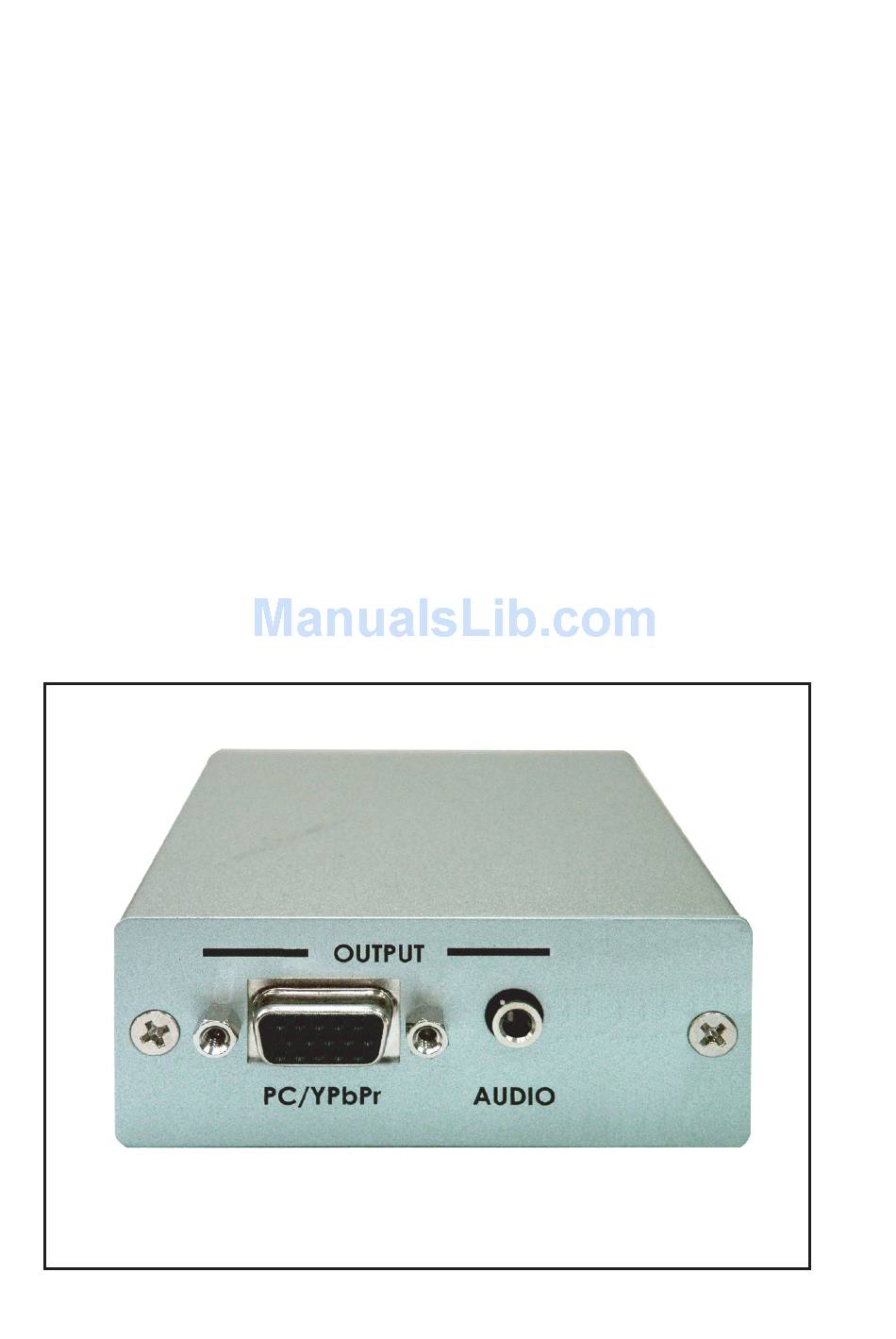

- Page 1 HDMI to PC/HD Format Converter With Audio The CP-262H converts digital HDMI to analog PC/RGB or HD YPbPr with audio. It enables you to connect your new HDMI sources to the older analog PC monitor, Projector or TV. Operation Manual...
-
Page 2: Operation Controls And Functions
4. Output format switch: - Set the switch to YPbPr when the output of CP-262H is connected to your display TV through 3 RCA component input.(Using VGA to 3 RCA adaptor cable) - Set the switch to RGB when the output of CP-262H is connected to your display TV through HD-15 D-sub PC input. -
Page 3: Output Format
A. HDMI Connector Pin Assignment Function Assignment Function Assignment Pin# Pin# TMDS Data2+ TMDS Data2 Shield TMDS Data2- TMDS Data1+ TMDS Data1 Shield TMDS Data1- TMDS Data0+ TMDS Data0 Shield TMDS Data0- TMDS Clock+ TMDS Clock Shield TMDS Clock- Reserved (N.C. on device) DDC/CEC Ground +5V Power Hot Plug Detect... - Page 4 Specification * HDMI is compliant with HDMI 1.2 * PC Output：HD-15 ( RGBHV/YP * Analog Audio Output：Analog L.R stereo * Operation frequency：up to 165MHz * Input/Output resolution： PC：VGA@60、VGA@72、VGA@75、VGA@85 SVGA@60、SVGA@72、SVGA@75、SVGA@85 XGA@60、XGA@70、XGA@75、XGA@85、XGAi@87 SXGA@60、SXGA@75、SXGA@85、UXGA@60 1152@70、1152@75、1152@85 HD：480i@60、576i@50、480P@60、576P@50、720P@60、 720P@50、1080i@60、1080i@50、1080P@60、 1080P@50、1080P@30、1080P@25、1080P@24 * Using switch to select output Format between RGB and YP * Dimensions (WxHxD)：76 * 30 * 105mm * Power：5V 2A Center-positive Installation...
