Summary of Contents for CYP CP-260D

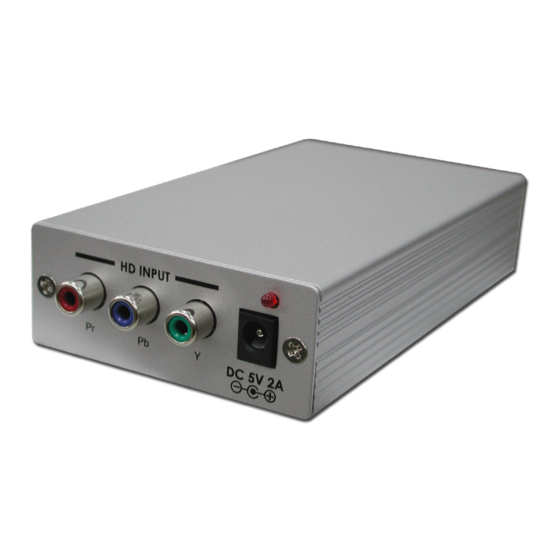

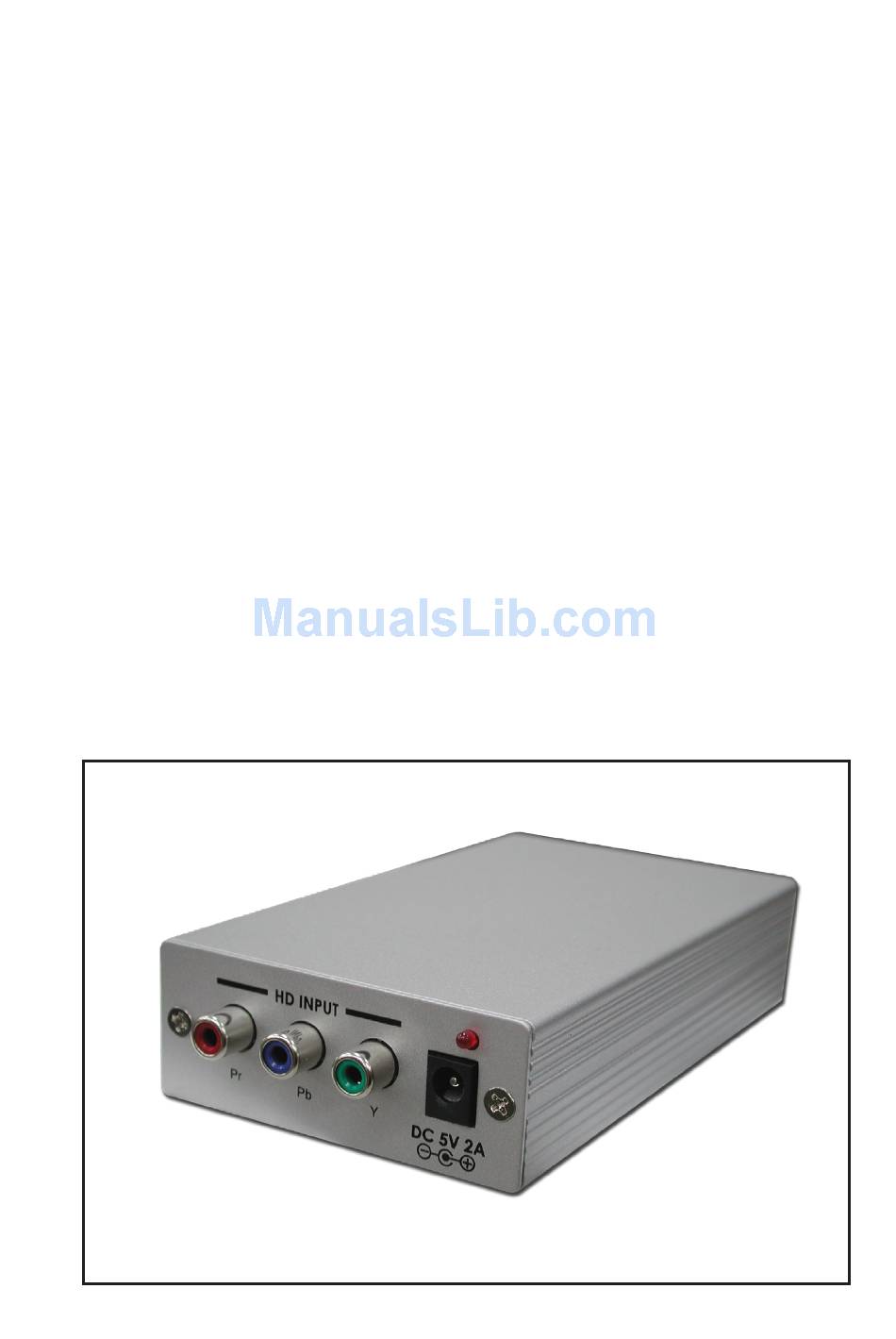

- Page 1 YPbPr to DVI-I Format Converter Operation Manual CP-260D...
-
Page 2: Operation Controls And Functions
DVI input of the monitors or projectors. Its high bandwidth capability supports a wide range of PC and HDTV resolutions. What is included 1. The CP-260D unit. 2. DC adaptor 5V 500mA~2A center-positive. 3. User manual. Features: * It enables you to connect DVD or set top box with YPbPr output to the DVI input of your new monitors or projectors. -
Page 3: Specifications
Specifications * Input: Analog YPbPr on 3 RCA connectors * Input signal: : 1 Vp-p 75 ohm, Pb/Pr: 0.7 Vp-p, 75 ohm * Output: DVI-I connector * Output signal: Digital RGB or YPbPr data bitstream * Compliant with DVI Rev 1.0 * Operation frequency: up to 165MHz * Input/ Output resolution: PC：VGA@60、VGA@72、VGA@75、VGA@85... -
Page 4: Connection And Installation
Connection and Installation LCD Monitor YPbPr to DVI-I Format converter YPbPr/YCbCr DVD, Set-Top box D-Sub to 3 RCA Cable...
