CP-293N
PC/HD to HDMI Scaler
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-293N and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CYP CP-293N

Summary of Contents for CYP CP-293N

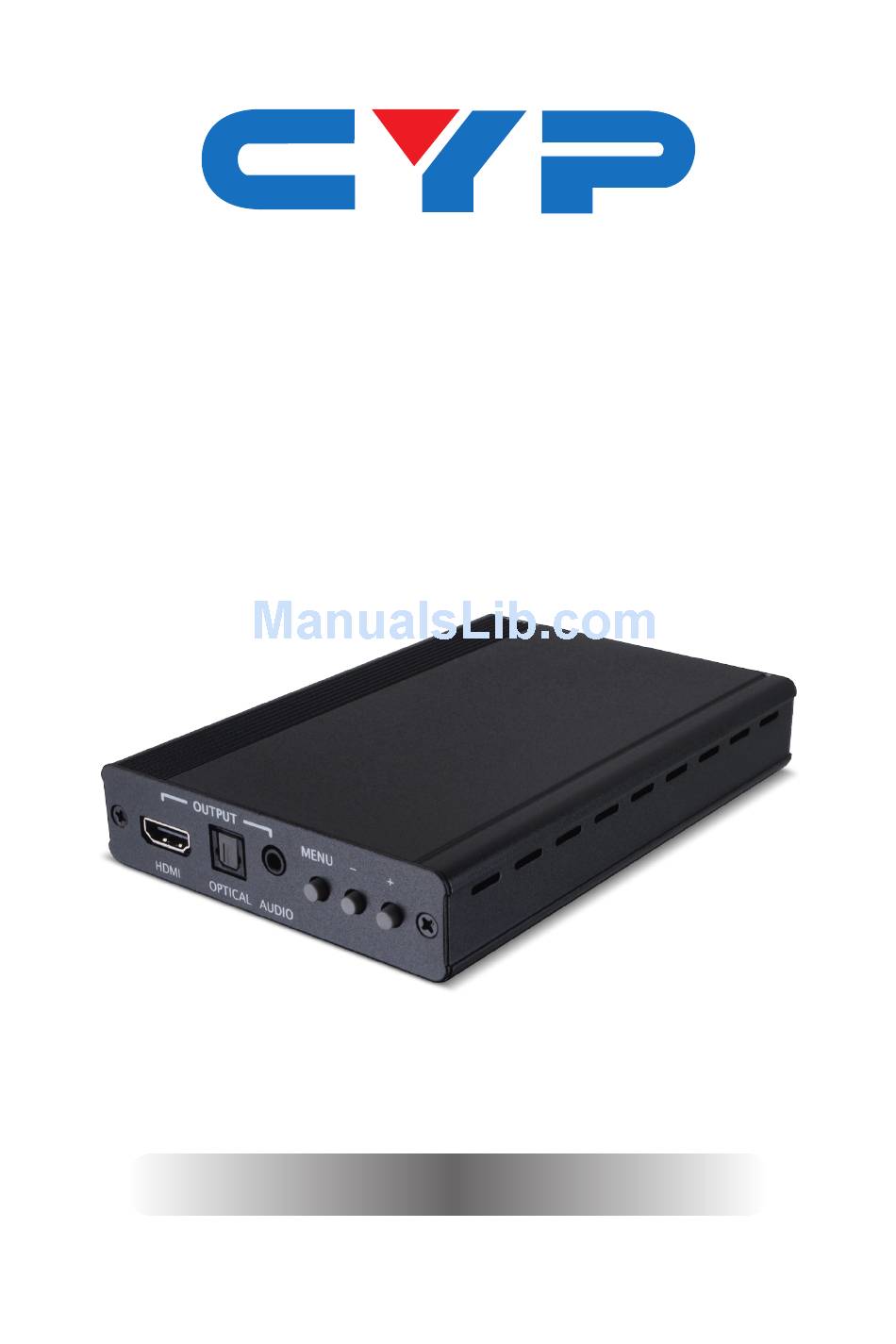

  • Page 1 CP-293N PC/HD to HDMI Scaler Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.

  • Page 4: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu .........5 7.

  • Page 6: Introduction

    1. INTRODUCTION The PC to HDMI Scaler is designed to upscale an analog video signal from a PC (VGA) or HD (Component Video) source device to digital HDMI output in a wide range of HDTV and PC resolutions up to 1080p/WUXGA (RB).

  • Page 7: Features

    5. FEATURES • HDMI, HDCP and DVI compliant • Supports a wide range of PC resolutions from VGA to WUXGA (RB) and HD resolutions from 480i to 1080p • Automatically detects the display settings of the connected display and outputs the correct resolution and refresh rate when the NATIVE output option is selected •...

  • Page 8: Operation Controls And Functions

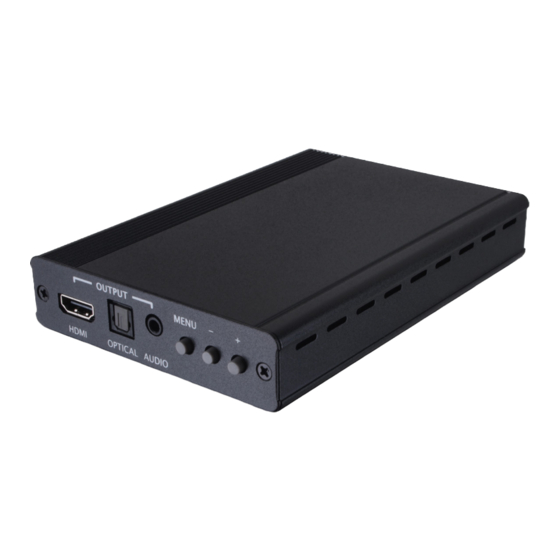

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel HDMI OUTPUT: Connect to a HDMI equipped display or AV receiver for video and audio output. OPTICAL OUTPUT: Connect to an amplifier or active speakers with an optical cable for LPCM 2 channels digital audio output. AUDIO OUTPUT: Connect to an amplifier or active speakers with a 3.5mm mini-jack cable for analog audio output.

  • Page 9: Rear Panel

    6.2 Rear Panel PC INPUT: Connect to the D-sub/VGA output of a source device such as a PC/Laptop with 15-pin D-sub cable or a DVD player with the supplied 15-pin D-sub to 15-pin D-sub adaptor cable. AUDIO INPUT: Connect to the analog audio output of the source device such as a PC/Laptop with a 3.5mm mini-jack cable.

  • Page 10: Osd Menu

    6.3 OSD Menu MAIN MENU 1ST LAYER 2ND LAYER PICTURE CONTRAST 0~100 (50) SETTING BRIGHTNESS 0~100 (50) EXIT FINETUNE PHASE 0~100 (100) (PC input CLOCK 0~100 (50) only) H-POSITION 0~100 (50) V-POSITION 0~100 (50) EXIT FINETUNE 0~100 (50) (HD input SATURATION 0~100 (50) only)
  • Page 11 MAIN MENU 1ST LAYER 2ND LAYER OUTPUT SIZE FULL, OVERSCAN, UNDERSCAN, SETTING LETTER BOX, PANSCAN, ASPECT (FULL) RESOLUTION 640×480@60, 800×600@60, 1024×768@60, 1280×1024@60, 1400×1050@60, 1600×1200@60, 1280×800@60, 1440×900@60, 1680×1050@60, 1920×1200@60RB, 1600×900@60, 480p, 720p@60, 1080i@60, 1080p@60, 576p, 720p@50, 1080i@50, 1080p@50, NATIVE EXIT AUDIO DELAY OFF, 40ms, 110ms, 150ms (OFF) SETTING...

  • Page 12: Connection Diagram

    7. CONNECTION DIAGRAM PC/Laptop D-sub/VGA Analog Audio Digital Optical Input Input Audio Input Power Supply HDMI Output Digital Optical Analog Audio Audio Output Output HDTV AV Receiver...

  • Page 13: Specifications

    8. SPECIFICATIONS 8.1 Technical Specifications Video Bandwidth 225 MHz/6.75 Gbps Input Ports 1×VGA (15-pin D-sub), 1×3.5mm Mini-jack, 1×Optical (TOSLINK), 1×USB (Service only) Output Ports 1×HDMI, 1×3.5mm Mini-jack, 1×Optical (TOSLINK) HDMI Output Resolutions Up to 1080p & WUXGA@60 (RB) HDMI and Optical Audio Up to 48 kHz Sampling Rates Power Supply...

  • Page 14: Input And Output Resolutions

    8.2 Supported Resolutions INPUT OUTPUT RESOLUTION 640×480@60/72/75/85 Hz 60 Hz  800×600@56/60/72/75/85 Hz 60 Hz  1024×768@60/70/75/85 Hz 60 Hz  1280×1024@60/75/85 Hz 60 Hz  1400×1050@60 Hz   1600×1200@60 Hz   1280×800@60 Hz   1440×900@60 Hz ...

  • Page 15: Audio Specifications

    8.3 Audio Specifications INPUT LEVEL/ OUTPUT OUTPUT FREQUENCE FREQ. TERMINAL LEVEL THD+N RESPONSE CROSSTALK Digital Digital 0dB ~ −1dB <0.01% ±3dB >70dB <-80dB 0dB/1kHz Analog 0dB ~ Digital <0.1% ±3dB >70dB <−60dB 1Vrms/1kHz −1.5dB Digital 0.5Vrms Analog <0.1% ±3dB >70dB <−60dB 0dB/1kHz ±10%...
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CP293N...
