DVI w/digital audio
to HDMI
Converter

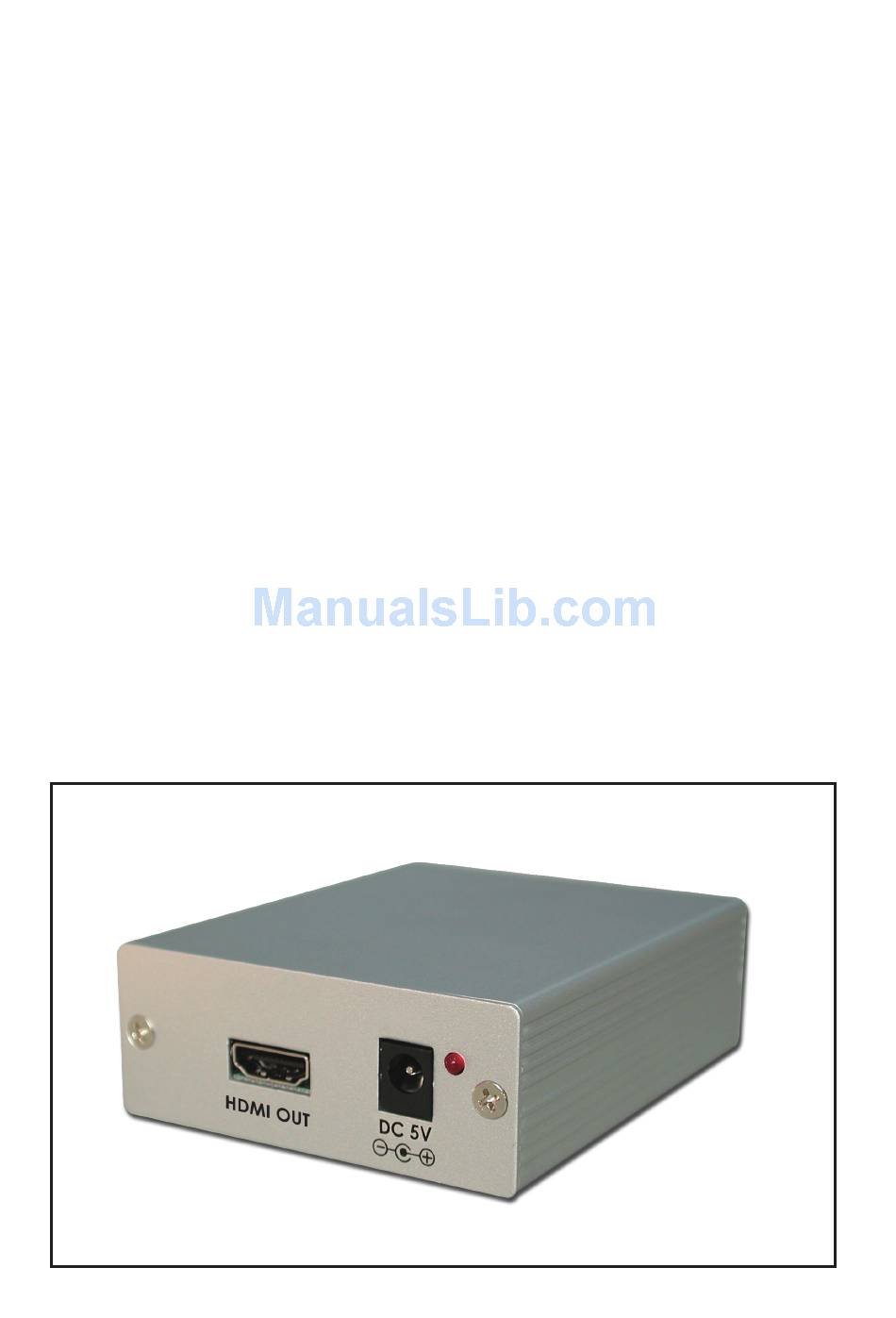

The CP-268 combines your digital video(DVI) and audio(SPDIF) input
and converts it to HDMI output. It adds the HDMI output capability
to your DVI sources so new HDMI TVs can be used with your DVI
sources with sound.
Operation Manual
CP-268
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CYP CP-268
Summary of Contents for CYP CP-268
- Page 1 DVI w/digital audio to HDMI Converter The CP-268 combines your digital video(DVI) and audio(SPDIF) input and converts it to HDMI output. It adds the HDMI output capability to your DVI sources so new HDMI TVs can be used with your DVI sources with sound.
-
Page 2: Operation Controls And Functions
This package includes: - One CP-268 unit. - One switching power supply. - User manual. Features: * Combines your digital A/V signal and converts it to HDMI output format. * Adds the HDMI output capability to your DVI sources such as PC or DVD player. - Page 3 Pin Configuration A. DVI-D Input Pin Assignment DVI-Digital(DVI-D): Supports digital-only connections between the host computer and display. This interface is designed for a 12 or 24-pin connection to enable single or dual-link mode activation. 8 C1 C2 Digital only connector pin assignments Signal Assignment Signal Assignment Signal Assignment...
- Page 4 Connection and Installation (1) HDMI display HDMI Plasma, LCD or DLP TVs Computer DVI cable HDMI cable SPDIF Cable (2) HDMI switcher HDMI Plasma, LCD or DLP TVs Computer DVI cable HDMI Switcher HDMI cable HDMI cable SPDIF Cable...
