CP-293N
PC/HD to HDMI Scaler
Operation Manual
Operation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP-293N and is the answer not in the manual?

Questions and answers

Related Manuals for CYP CP-293N

Summary of Contents for CYP CP-293N

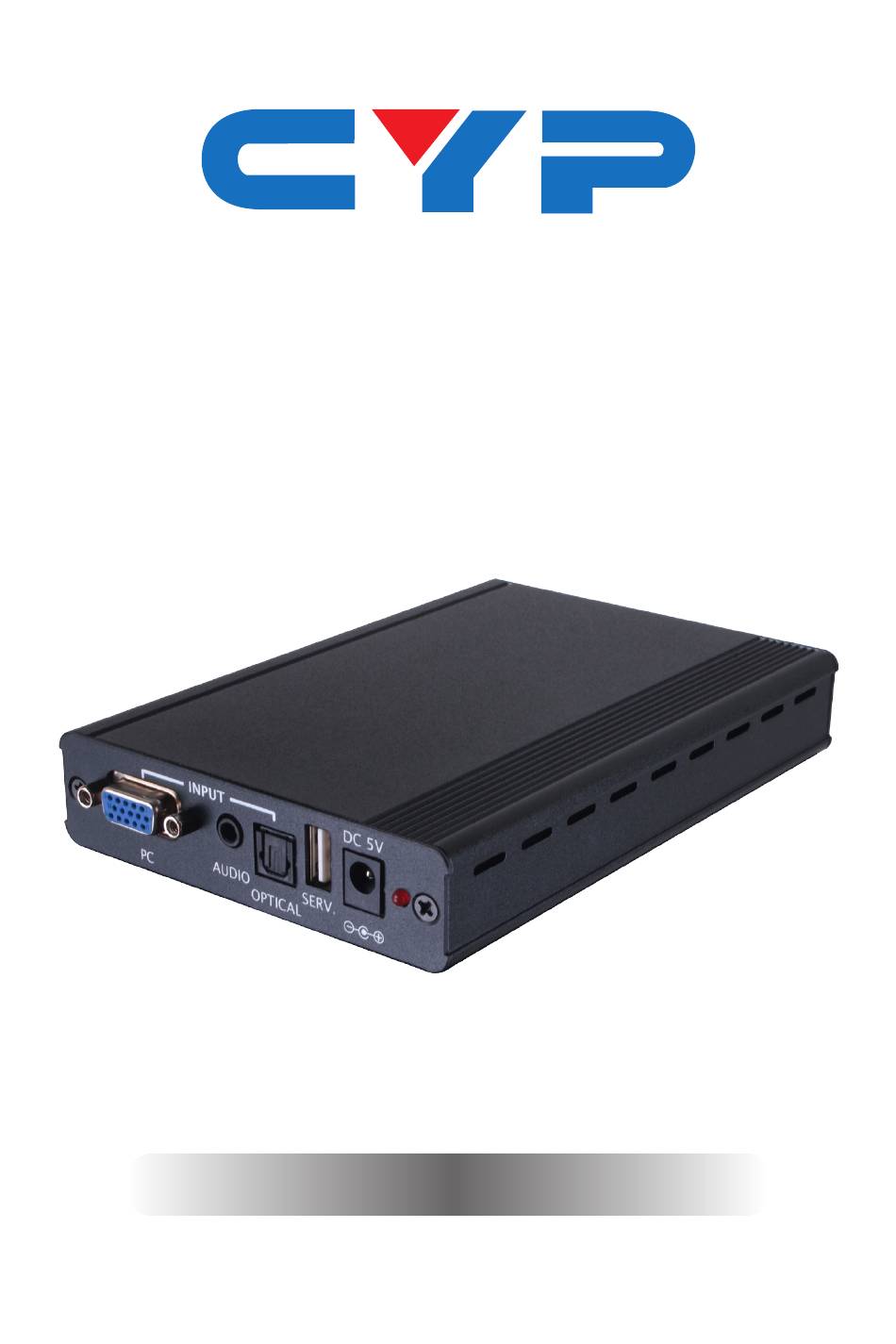

  • Page 1 CP-293N PC/HD to HDMI Scaler Operation Manual Operation Manual...
  • Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.

  • Page 5: Table Of Contents

    CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel ........3 6.2 Rear Panel .........4 6.3 OSD Menu .........5 7.

  • Page 6: Introduction

    1. INTRODUCTION This Scaler Box is designed to upscale analog video signal from PC/ HD input source to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p/WUXGA. Besides video upscaling, the scaler box also converts input audio signal from Optical or L/R to both digital and analog formats, then output to HDMI combining with the video, Optical and phone jack (L/R audio) simultaneously.

  • Page 7: Features

    5. FEATURES • HDMI, HDCP and DVI compliant • Supports full range of PC resolution from VGA ~ WUXGA (RB) and HD resolution from 480i~1080p • Automatically detect the factory setting of the connected display and output the corresponding resolution and refresh rate, when the NATIVE output is selected •...

  • Page 8: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DC 5V INPUT AUDIO SERV. OPTICAL PC INPUT: Connect from source equipment such as PC/Laptop with D-Sub 15-pin cable or DVD player with D-Sub to RCA adaptor. AUDIO INUPT: Connect from the audio source equipment such as DVD/PC with 3.5mm phone jack for analog audio signal input.

  • Page 9: Rear Panel

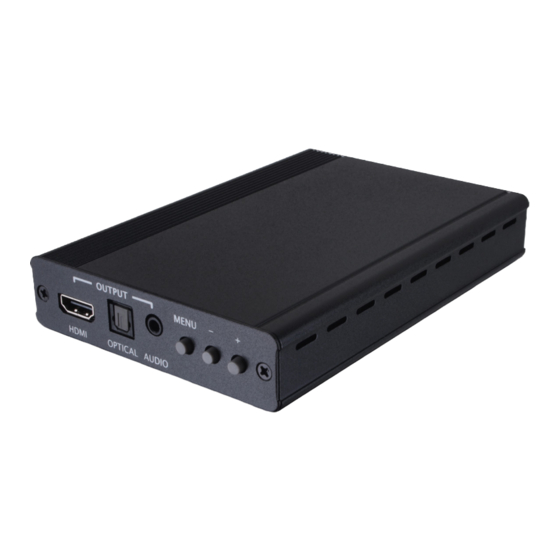

    6.2 Rear Panel OUTPUT MENU HDMI OPTICAL AUDIO HDMI OUTPUT: This slot is to connect with HDMI TV/Monitor for output image display. OPTICAL OUTPUT: Connect to an amplifier or active speaker with optical cable for audio output. AUDIO OUTPUT: Connect to an amplifier or active speaker with 3.5mm phone jack for audio output.

  • Page 10: Osd Menu

    6.3 OSD Menu Main Menu Layer Layer CONTRAST 0~100 (50) PICTURE SETTING BRIGHTNESS 0~100 (50) EXIT 　 PHASE 0~100 (100) CLOCK 0~100 (50) FINETUEN H-POSITION 0~100 (50) PC Mode Only V-POSITION 0~100 (50) EXIT 　 0~100 (50) SATURATION 0~100 (50) FINETUEN HD/SD Mode SHARPNESS...
  • Page 11 Main Menu Layer Layer FULL/OVERSCAN/UNDERSCAN/ SIZE LETTER BOX/ PANSCAN/ASPECT (FULL) 640x480@60 / 800x600@60 / 1024x768@60 / 1280x1024@60 / 1400x150@60 / 1600x1200@60 / OUTPUT SETTING 1280x800@60 / 1440x900@60 / RESOLUTION 1680x1050@60 / 1920x1200@60RB / 1600x900@60 / 480P / 720P@60 / 1080I@60 / 1080P@60 / 576P / 720P@50 / 1080I@50 / 1080P@50 EXIT 　...

  • Page 12: Connection Diagram

    7. CONNECTION DIAGRAM D-Sub Audio/Optical DC 5V INPUT AUDIO SERV. OPTICAL OUTPUT MENU HDMI OPTICAL AUDIO HDMI Audio/Optical Amplifier...

  • Page 13: Specifications

    8. SPECIFICATIONS Video Bandwidth 225MHz / 6.75Gbps Input Ports 1 x D-Sub 15-pin, 1 x 3.5mm Phone Jack, 1 x Optical, 1 x USB (service only) Output Ports 1x HDMI, 1 x Optical, 1 x 3.5mm Phone Jack HDMI output Resolution Up to 1080p &...

  • Page 14: Audio Specification Chart

    8.1 Audio Specification Chart Input Output Frequence Output Level THD+N Crosstalk Level/Freq. Terminal Response Digital Digital 0dB ~ -1dB <0.01% ±3dB >70dB <-80dB 0dB/1kHz Analog Digital 0dB ~ -1.5dB <0.1% ±3dB >70dB <-60dB 1Vrms/1kHz Digital Analog 0.5Vrms ±10% <0.1% ±3dB ±3dB <-60dB 0dB/1kHz...

  • Page 15: Acronyms

    9. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface WUXGA (RB) Widescreen Ultra Extended Graphics Array (Reduce blanking)
  • Page 16 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-CP293N...
