- Page 1 CP-298H HDMI to HDMI Scaler Box Operation Manual CP-298H...
- Page 2 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction…………………………………………………..………. Applications……………………..…………………………....…. Package Contents…………………………..…………….....… System Requirements……...…………………..….…………..……. Features……………………………………………..……..……… Specifications..………………………………………...………...…. Hardware Description………………...……..….....…… Front Panel ................Rear Panel …………………………………………..…….… Top Panel ………………………….………………..…….… 8. Connection and Installation....…………..…..…..…... Acronyms …….………....…………..…..…...…... -
Page 5: Introduction
1. Introduction This Scaler Box is designed to display your HD images on a HDTV. It can upscale HDMI input sources to HDMI output for a wide-range of HD resolutions; the reso- lution supported include XGA/UXGA/720p/1080p/1366 x 768/1440 x 900/1400 x 1050. -
Page 6: Specifications
6. Specifications TMDS Clock Frequency 225MHz Input port 1 x HDMI Output port 1 x HDMI Power Supply 5V/1A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 114 (W) x 65 (D) x 26 (H) Weight(g) Chassis Material Plastic Silkscreen Color Black Power Consumption 2.7W... -
Page 7: Hardware Description

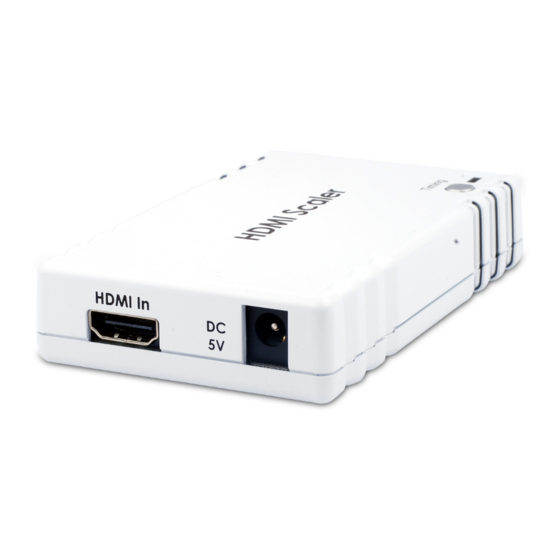

7. Hardware Description The following sections describe the hardware components of the unit. 7.1 Front Panel ① HDMI IN: This slot is where you plug in your input source device with an HDMI cable in order for your source to send a signal. ②... -
Page 8: Top Panel
7.3 Top Panel TIMING ① Timing button: Press this button once to show both the input and output displays resolution and while the OSD is still on press it again to select the output resolution from 720p to 1080p/1280 x 800/1366 x 768/1920 x1200(RB). ② Power LED: This LED will turn on when power is connected. -
Page 9: Connection And Installation
8. Connection and Installation Notebook / PC DVD / Blu Ray Set-Top-Box HDTV / LCD Monitor... -
Page 10: Acronyms
Acronyms Acronym Complete Term HDCP High-bandwidth Digital content protection HDMI High-Definition Multimedia Interface Video Graphics Array WUXGA Wide Ultra Extended Graphics Array... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20100225 MPM-CP298H...
