- Page 1 CP-293 PC to HDMI 1080p Scaler Box Operation Manual CP-293...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Features..................3. Package Contents..............4. Operation Controls and Functions.......... 4.1 Front Panel................4.2 Rear Panel................4.3 OSD Operation..............5. Reset Functionality..............6. Specifications................6.1 General Specifications............6.2 Supports Resolution.............. 7. Connection and Installation............. -
Page 3: Introduction
1.Introduction This Scaler Box is designed to upscale analog video signal from PC input source to digital HDMI output of wide-range HDTV and PC resolutions, up to 1080p/WUXGA. Besides video upscaling, the scaler box also converts input audio signal from TOSLink or L/R to both digital and analog formats, then output to HDMI combining with the video, TOSLink (optical fiber), and phone jack (L/R audio) simultaneously. -
Page 4: Front Panel

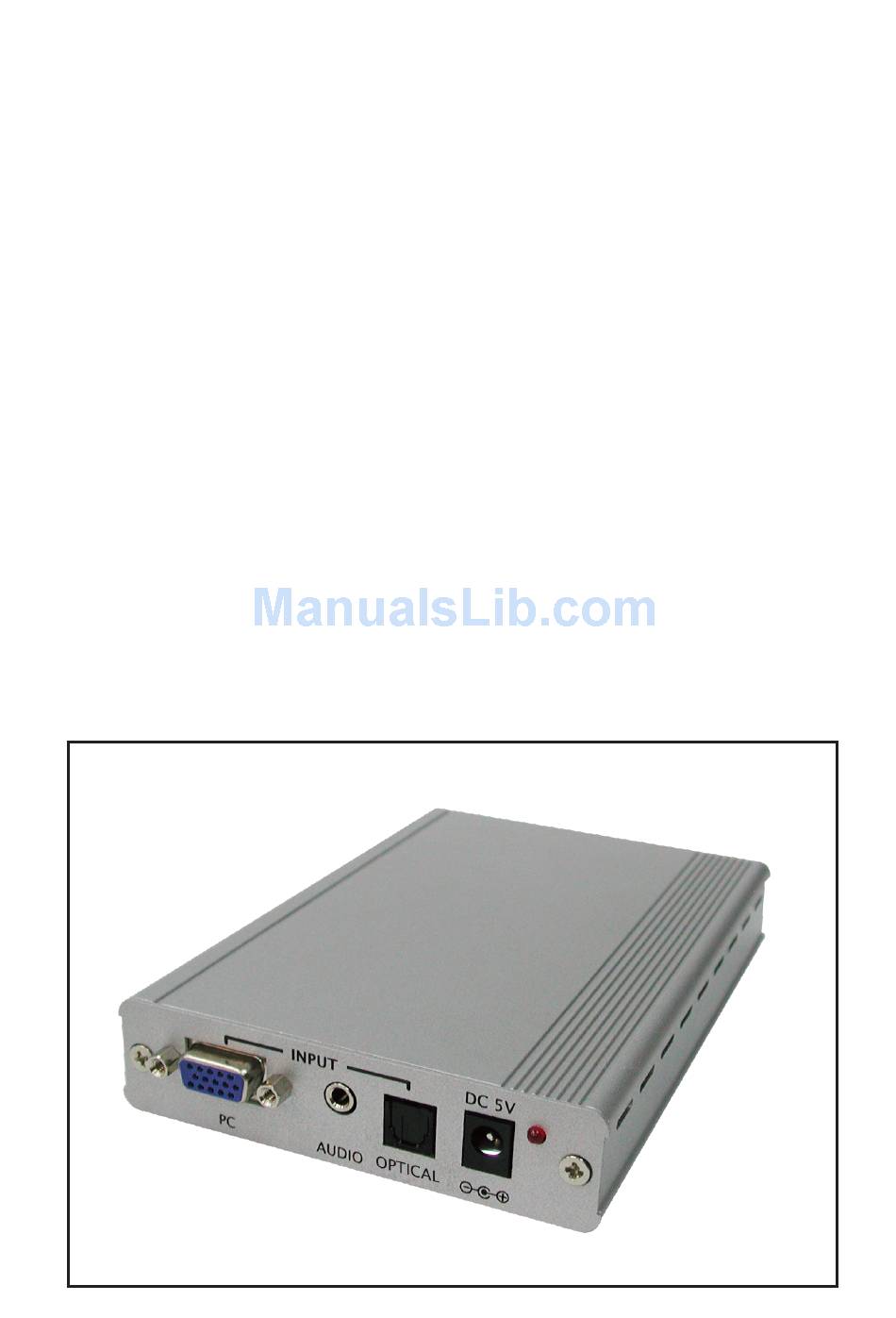

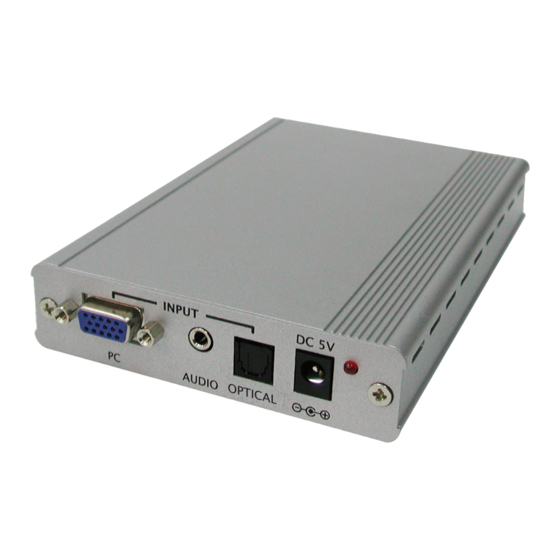

4. Operation Controls and Functions 4.1 Front Panel INPUT DC 5V AUDIO OPTICAL PC Input: Connect the PC input D-Sub (15-pin) port to the D-Sub output port of your source equipment such like PC. Audio Input: Connect the PC 3.5mm phone jack input port to the analog audio output port of your source equipment. -
Page 5: Rear Panel
4.2 Rear Panel OUTPUT MENU HDMI OPTICAL AUDIO HDMI Output: Connect the HDMI output port to the HDMI input port of your display such like HDTV. TOSLink (optical fiber) Output: Connect the optical output port to the digital audio input port of your amplifier. Audio Output: Connect the PC 3.5mm phone jack output port to the analog audio input port of your equipment. -
Page 6: Osd Operation
4.3. OSD Operation Tier Option Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level FINETUNE - SHARPNESS 0 ~ 100 of Sharpness Level - EXIT Back to 1... -
Page 7: Specifications
6. Specifications 6.1. General Specification Input Ports 1 x PC, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical fiber) Output Ports 1 x HDMI, 1 x 3.5mm Phone Jack, 1 x TOSLink (optical fiber) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 154(D) x 100(W) x 25(H) Weight(g) - Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20080229 MPM-CP293...
