Summary of Contents for CYP CP-252

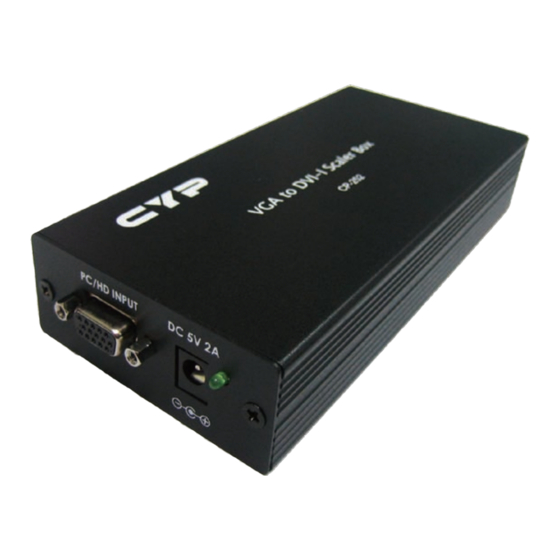

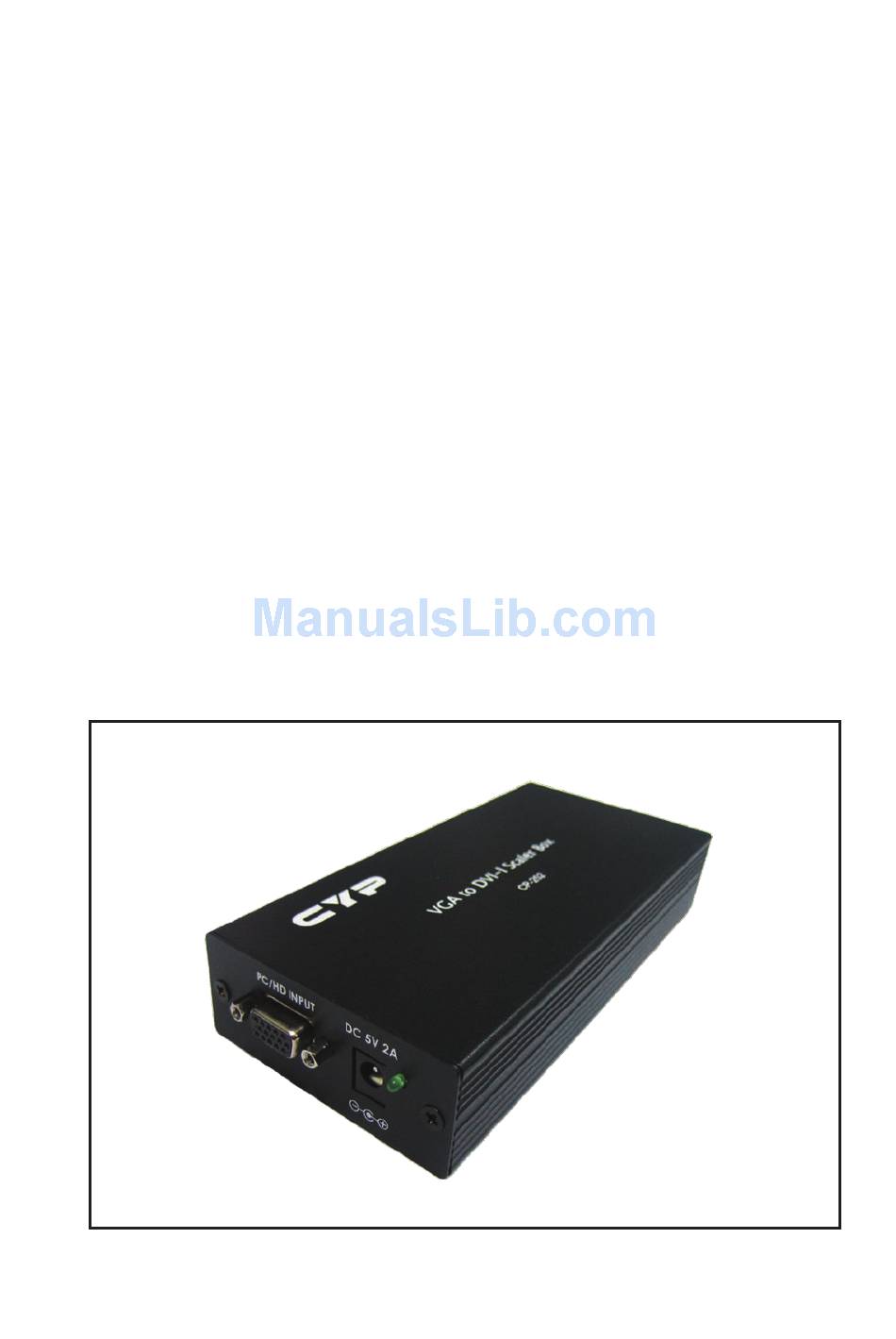

- Page 1 VGA to DVI-I Scaler Box CP-252 Operation Manual...
-
Page 3: What's Included
RGB input(VGA) and converters to DVI-I (digital + analog RGB) output. 2. The input to the CP-252 is analog PC or HDTV signal in the format either RGBHV, YPbPr, or(YCbCr). 3. The output of the CP-252 is digital + analog PC or HDTV signal in the format of digital RGBHV bitstream plus analog RGBHV, known as DVI-I(Integrated digital and analog). -
Page 4: Installation
To use CP-252's digital output select DVI-D in the Output Setup of the menu, and use DVI cable to connect the DVI output of the CP-252 to the DVI input of a display monitor, or HDTV device. See 3.3A... -
Page 5: Connection Block Diagram
A. For digital RGB (DVI) output, (Select DVI-D in the Output Setup of the menu). (a) PC in to Digital PC or HDTV out PC Resolutions PC/Monitor Cable CP-252 Plasma TV Cable Projector PC input HDTV Resolutions (b) HDTV in to Digital PC or HDTV out... - Page 6 (a) PC in to PC or HDTV out VGA cable Analog PC output DVI to Adaptor PC in CP-252 cable VGA to YPbPr Cable Analog HDTV output (b) HDTV in to PC or HDTV out VGA cable YPbPr/YCbCr...
-
Page 7: Configuration And Operation
Press Menu(Enter) again to leave the setting. Move the arrow to exit then press Menu/Enter to Exit. YPbPr The CP-252 will automatically detect and show the input signal format as YPbPr or RGB. You can also manually select the YPbPr or RGB to match the format of your input. - Page 8 XXXX-XX Mode Select DVI-A when you would like to use analog output of CP-252. Select DVI-D when you would like to use digital output of CP-252. When DVI-A is selected, it give you choice for the output mode as follow: Output modes under DVI-A.
- Page 9 System information-When it is selected, it shows the input/output resolution and their vertical refresh rate on the screen. Auto adjust- When it is selected the CP-252 will automatically adjust all the parameter to the factory preset value. Exit- Select to exit from the current menu page.
-
Page 10: Specifications
5. Specifications 70/75 Hz 60 Hz Digital 70/75 Hz Input format: Analog RGBHV, YPbPr, YCbCr Input signal: RGBHV: 0.7 Vp-p, 75 ohm H/V: 3 to 5 Vp-p TTL Y: 1 Vp-p 75 ohm Pb/Cb, Pr/Cr: 0.7 Vp-p 75 ohm Input connector: HD-15 female VGA connector. Output format: Digital RGBHV + Analog RGBHV or YPbPr (through DVI to HD-15 adaptor) Output signal: Digital data bitstream...
