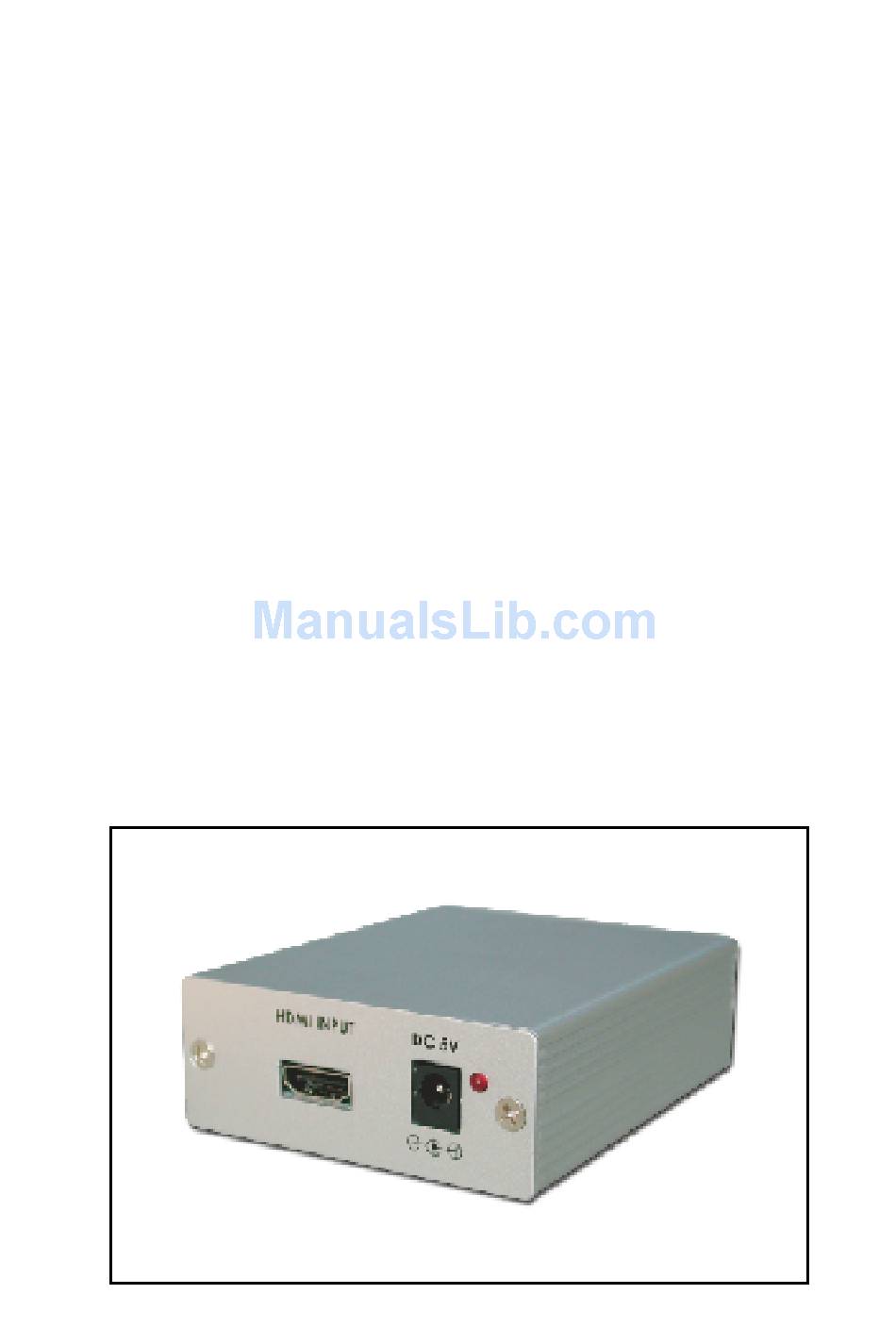

- Page 1 HDMI to DVI Converter w/Digital Audio The CP-267 converts digital HDMI to digital video (DVI-D) and audio (SPDIF) output. It enables you to connect your HDMI source to a DVI digital display and the digital audio receiver. Operation Manual CP-267...
-
Page 2: Operation Controls And Functions
This package includes: - One CP-267 unit. - One switching power supply. - User manual. Features: - Let you watch your HDMI source signal on DVI digital display and enjoy high quality digital audio at the same time. - Input format auto detection: Digital RGB or YPbPr. - Page 3 Specifications: * HDMI input is compliant with HDMI 1.1 * Digital video output: Via DVI-I connector (RGB or YPbPr pass through) * Digital audio output:Coaxial (S/PDIF) * Operation frequency: Up to 165MHz * Input/Output resolutions: PC: VGA@60Hz, VGA@72Hz, VGA@75Hz, VGA@85Hz, SVGA@60Hz, SVGA@72Hz, SVGA@75Hz, SVGA@85Hz, XGA@60Hz, XGA@70Hz, XGA@75Hz, XGA@85Hz, XGAi@87Hz, SXGA@60Hz, SXGA@75Hz, SXGA@85Hz, UXGA@60Hz, 1152@70Hz, 1152@75Hz, 1152@85Hz...
-
Page 4: Connection And Installation
DVI-D Output Pin Assignment DVI-Digital(DVI-D): Supports digital-only connections between the host computer and display. This interface is designed for a 12 or 24-pin connection to enable single or dual-link mode activation. 8 C1 C2 Digital only connector pin assignments Signal Assignment Signal Assignment Signal Assignment T.M.D.S Data2-...
