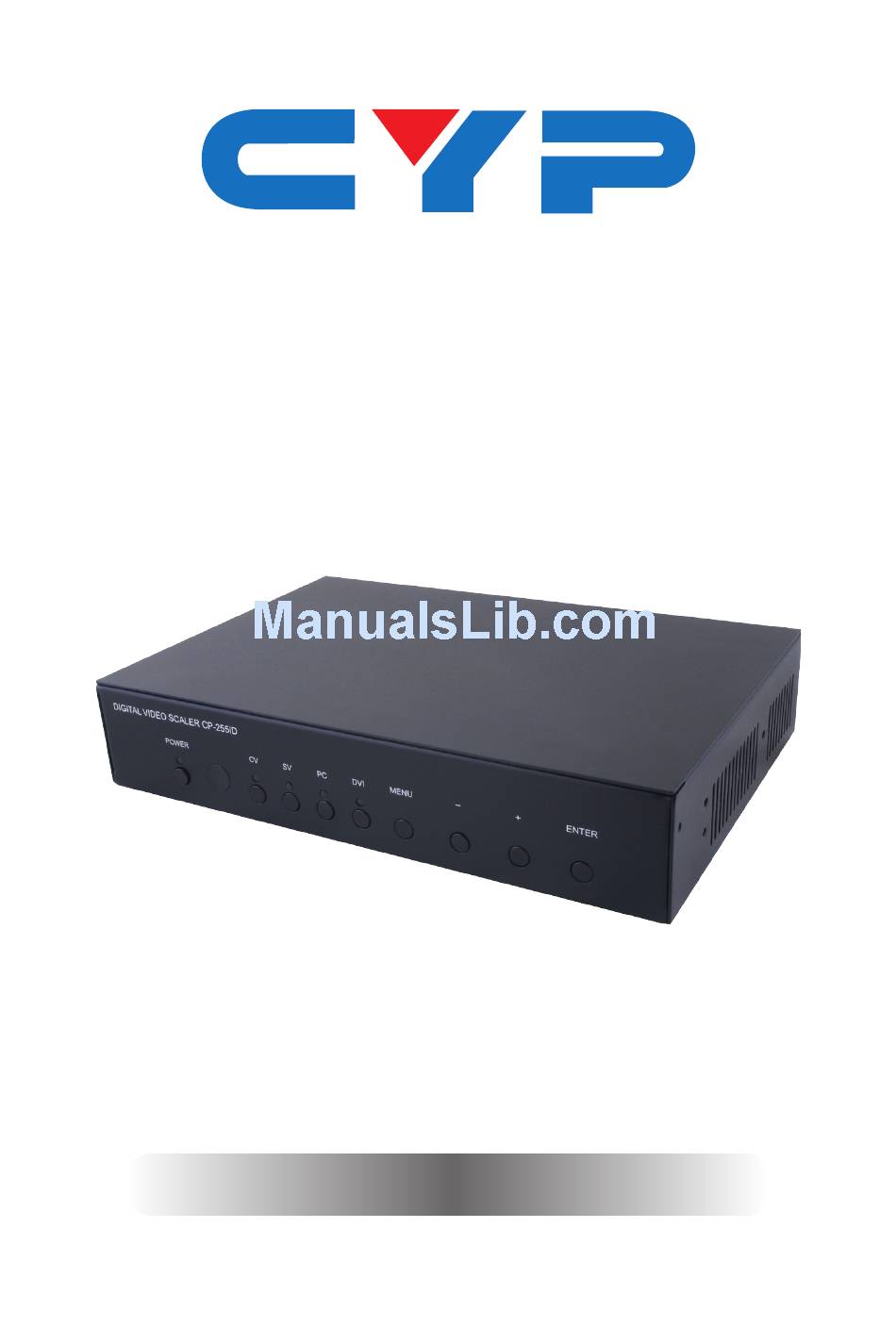

- Page 1 CP-255ID Digital Video Scaler Operation Manual Operation Manual...
- Page 3 DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. Cypress Technology assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 7. Remote Control ........4 7.1 RS-232 Protocols .......5 7.2 RS-232 Command ......5 7.3 OSD MENU .........8... -
Page 6: Introduction
1. INTRODUCTION The Digital Video Scaler has CV, SV, PC & DVI inputs and can scale the signal into DVI with audio output. This high performance digital video scaler supports all the functions of DVI with resolution up to 1080p / WUXGA a wide range of AV signal to be insert to a high-Definition signal and displaying. -
Page 7: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel DIGITAL VIDEO SCALER CP-255ID POWER MENU ENTER POWER & LED: Press this button to switch ON or set the device to standby mode. Once the device is connected with power supply the LED will illuminate and the device will switch to ON automatically. -
Page 8: Rear Panel
6.2 Rear Panel SERVICE L/R OUT DC 5V RS232 DVI OUT SERVICE 1: Reserved for factory use only. RS-232: Connect with PC/NB and use RS-232 command to control the device. DVI OUTPUT: Connect to DVI display for video or graphical display. Compatible with HDMI to DVI adaptor. -
Page 9: Remote Control
7. REMOTE CONTROL POWER POWER: Press this button to switch ON or set the device to standby mode. Once the device is connected with power supply it is on automatically. CV/SV/PC/DVI: EXIT MENU Press these hot keys to switch input source instantly. AUTO EXIT: RESET... -
Page 10: Rs-232 Protocols
7.1 RS-232 Protocols CP-255ID Remote Control Assignment Assignment ► ◄ Baud Rate: 19200bps Data bit: 8 bits Parity: None Flow Control: None Stop Bit: 1 7.2 RS-232 Command Command Description Contents Start RS-232 S SOURCE 1~4 Select input source DVI(1) / VIDEO(2) / SVIDEO(3)/... - Page 11 S OUTPUT 1~25 Select output timing Native(0)/ 640*480(1)/ 800*600(2)/ 1024*768(3)/ R OUTPUT Inquire output timing 1280*768(4)/ 1360*768(5)/ 1280*720(6)/ 1280*800(7)/ 1280*1024(8)/ 1440*900(9)/ 1400*1050(10)/ 1680*1050(11)/ 1600*1200(12)1920*1080(13)/ 1920*1200(16)/ 480p(17)/ 720p 60(18)/ 1080p 60(19)/ 1080i 60(20)/ 576p(22)/ 720p 50(23)/ 1080p 50(24)/ 1080i 50(25) S SIZE 0~6 Select output size OVERSCAN(0) / FULL(1) /BEST FIT(2) / PAN SCAN(3)/LETTER...
- Page 12 S AUDIODELAY Audio delay setting OFF(0) / 40ms (1) / 110ms(2) / 150ms(3) R AUDIODELAY Inquire audio delay setting S AUDIOMUTE 0/1 Audio mute setting ON(0) / MUTE(1) RAUDIOMUTE Inquire audio mute setting S KEY LOCK 0/1 Key lock setting ENABLE(0) / DISABLE(1) R KEY LOCK Inquire key lock setting...
-
Page 13: Osd Menu
7.3 OSD MENU Layer layer Layer DISPLAY OUTPUT Native 640X480 60 800x600 60 1024x768 60 1360x768 60 1280x720 60 1280x800 60 1280x1024 60 1440x900 60 1400x1050 60 1680x1050 60 1600x1200 60 1920x1080 60 1920x1200 60 720X480P 60 1280X720P 60 1920X1080I 60 1920X1080P 60 720X576P 50 1280X720P 50... - Page 14 SIZE (VIDEO mode OVER SCAN only) FULL BEST FIT PAN SCAN LETTER BOX UNDER 2 UNDER 1 INFO MODE INFO PC(PC mode only) AUTO SETUP H_POSITION 0~60 (30) V_POSITION 0~60 (30) PHASE CLOCK WXGA/XGA WXGA RESET...
- Page 15 COLOR COLOR 0~1023 (512) 0~1023 (512) 0~1023 (512) R OFFSET 0~1023 (512) G OFFSET 0~1023 (512) B OFFSET 0~1023 (512) CONTRAST 0~60 (30) BRIGHTNESS 0~60 (30) HUE (VIDEO mode 0~60 (30) only) SATURATION (VIDEO 0~60 (30) mode only) SHARPNESS (VIDEO 0~30 (0) mode only) NR.
- Page 16 SETUP FACTORY RESET KEY LOCK POWER SAVE INFORMATION INPUT OUTPUT REVISION Note: Bold Italian fonts are the Factory default setting. ( ) are default settings...
-
Page 17: Connection Diagram
8. CONNECTION DIAGRAM RS-232 Equipped PC or Laptop SERVICE L/R OUT DC 5V RS232 DVI OUT S-Video/Composit Video and stereo audio from Blu-ray player... -
Page 18: Specifications
9. SPECIFICATIONS Video Bandwidth 165MHz Input Port 1 x Composite, 1 x S-Video, ,1 x VGA, 1 x DVI, 1 x L/R, 1 x LR, 1 x USB (service only), 1 x RS-232 (Control Only) Output Port 1 x DVI, 1 x L/R Supports Input Up to UXGA &... - Page 19 1280*720 @60Hz √ √ 1280*768 @60Hz √ √ 1280*800 @60Hz √ √ 1280*960 @60Hz √ √ 1280*1024 (@60/75Hz) √ √ 1360*768 @60Hz √ √ SXGA+1400*1050 @60Hz √ √ WXGA+1440*900 @60Hz √ √ UXGA1600*1200 @60Hz √ √ WSXGA1680*1050 RB √ √ @60Hz 1920*1080 @60Hz √...
-
Page 20: Acronyms
1280*720@60Hz 1280*800@60Hz 1280*1024@60Hz 1440*900@60Hz 1400*1050@60Hz 1680*1050@60Hz 1600*1200@60Hz 1920*1080@60Hz 1920*1200@60Hz 480P 576P 720P(@50/60Hz) 1080I(@50/60Hz) 1080P(@50/60Hz) 10. ACRONYMS ACRONYM COMPLETE TERM COMP Component Composite Video Digital Visual Interface Red Green Blue Serial Digital Interface Video Graphics Array UXGA Ultra Extended Graphics Array WUXGA Widescreen Ultra Extended Graphics Array... - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw 20120620 MPM-CP255ID...
