- Page 1 CP-292 DVI-I to Component (HD) Scaler Box Operation Manual CP-292...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................2. Main Features................3. Operation Controls and Functions.......... 3.1 Front Panel................3.2 Rear Panel................4. OSD Operation................5. Connection and Installation............. 6. Specifications................7. Support Resolution.............. -
Page 3: Main Features
1.Introduction This Scaler Box is designed to upscale DVI-I input sources to HD output of wide-range HDTV resolutions; the resolution is up to 1080p. This unit has a comprehensive OSD menu that allows user to select a variety of output resolutions and adjust for best picture quality. -
Page 4: Operation Controls And Functions

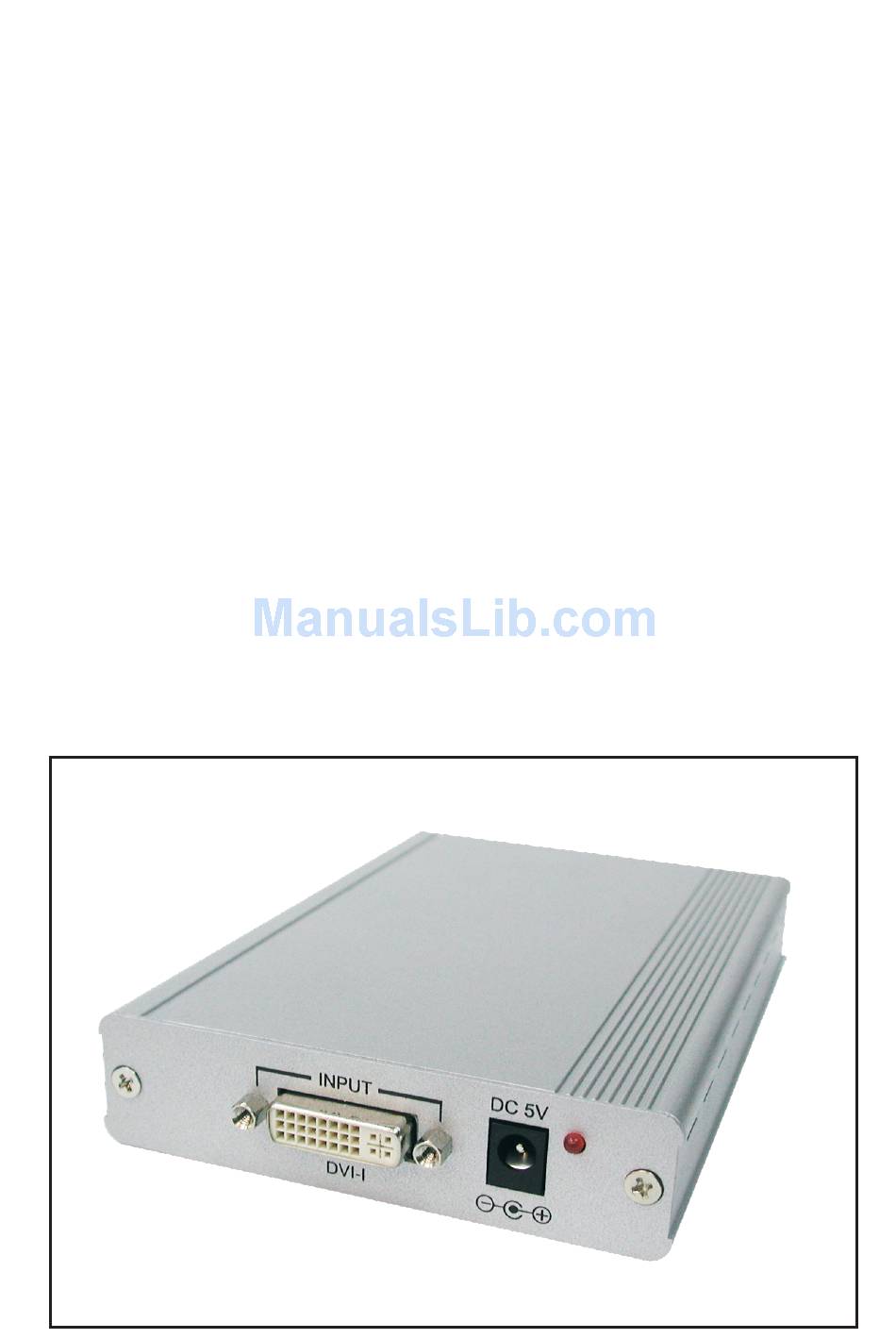

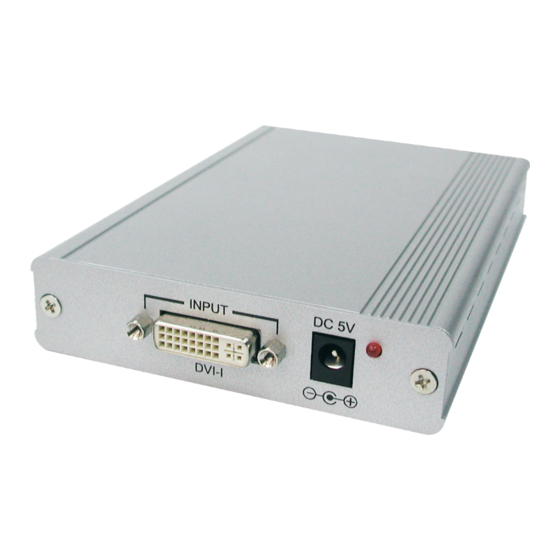

3. Operation Controls and Functions 3.1 Front Panel DC 5V INPUT DVI-I DVI-input: Connect the DVI-I input port to the output port of your source equipment. Power: Plug the 5VDC power supply into the unit and connect the adaptor to AC wall outlet. 3.2 Rear Panel OUTPUT MENU... -
Page 5: Osd Operation
4. OSD Operation 1 st Tier Option 2 nd Tier Option Adjustment CONTRAST 0 ~ 100 of Contrast Level BRIGHTNESS 0 ~ 100 of Brightness Level - HUE 0 ~ 100 of Hue Level - SATURATION 0 ~ 100 of Saturation Level FINETUNE - SHARPNESS 0 ~ 100 of Sharpness Level... -
Page 6: Connection And Installation
5. Connection and Installation DVI-I Componect DVD Player 6. Specifications Input ports 1 x DVI-I (DVI-D,PC) Output port 1 x Component (Y/Pb/Pr) Power Supply 5V/2.6A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 157(D) x 102(W) x 25(H) Weight(g) Chassis Material Aluminum Silk Skin Color Silver... - Page 7 20080806 MPM-CP292...
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
