Basic Installation

RF Output
+45 dBmV
Coax cable connects
to coax network
WARNING: +45 dBmV
Do not connect directly to HDTV
Factory default settings allow HDb2840 units to broadcast
up to 4 unencrypted HDMI sources on RF channels 2, 3, 5,
and 6 for reception at connected HDTVs.
We recommend using the most updated version of
firmware. You can find the latest version on the Support
section of our website.

Beginning setup

1. Apply power.
2. Connect an HDMI video source to the HDMI input port
of the HDb2840, using an HDMI cable (which is sold
separately). For Closed Captioning, connect a composite
(yellow) cable from the video source to the Caption port.
3. Optional – Connect the Analog Audio if the digital audio is
not present on HDMI or if you want to implement the delay
matched audio feature.

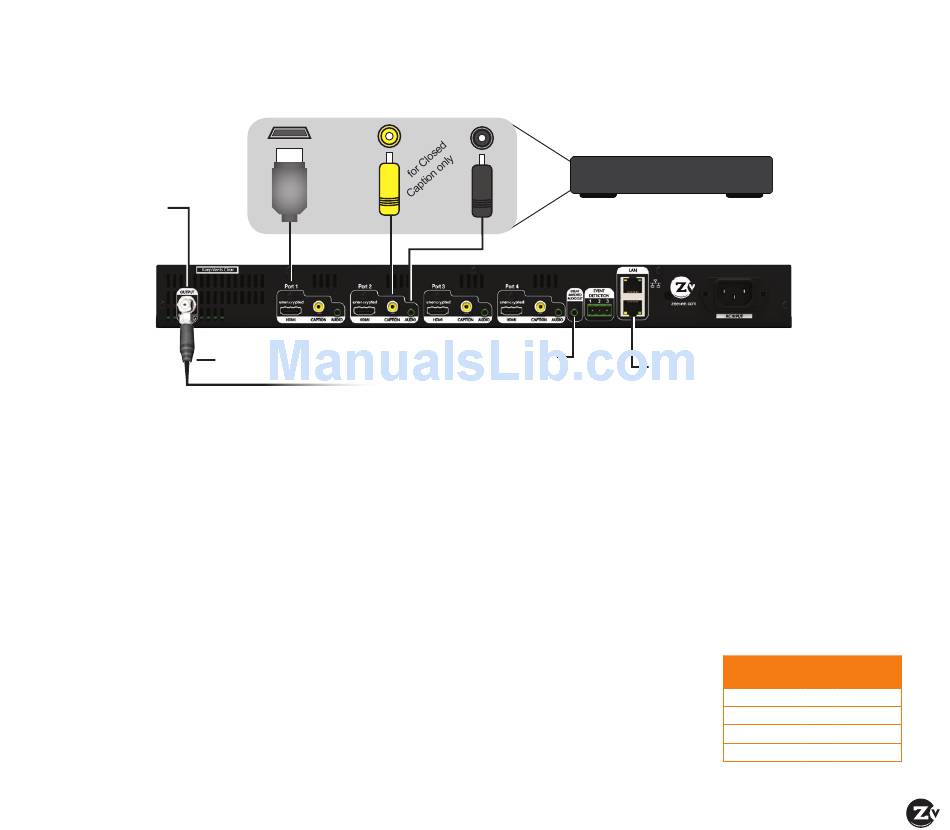

Unencrypted Composite
HDMI Out Video
Optional Delay Matched
Analog Audio Out to
Analog
Audio
Unencrypted HDMI
Video Source
Video Source
Back of HDb2840 Modulator
audio system

Tuning your channel at the HDTV (Auto Scan)

1. Connect the Coaxial Output of the HDb2840 to your
RF network.
If the RF power for your network is too high, you will
observe video breakup.
2. Specify Cable (not Air or Antenna) setting in your TV menu.
3. Enter the RF number to tune directly to the channel. For
default channel lineup information, refer to the Default
Channel Lineup table.
If you cannot tune directly to
the channel at this point, it is
because most TVs will require
you to run a full Auto Scan.
4. Run the Auto Scan through
the menu system of your
HDTV to find the channels.
H D bri dg e 28 40 C on f ig urat i on G u id e
Ethernet to network or
directly to computer
DEFAULT CHANNEL LINEUP
AV Input RF
#
AV Input 1 2
AV Input 2 3
AV Input 3 5
AV Input 4 6
|
HDTV
Channel
2.1
3.1
5.1
6.1
Pag e 5
