Basic Installation

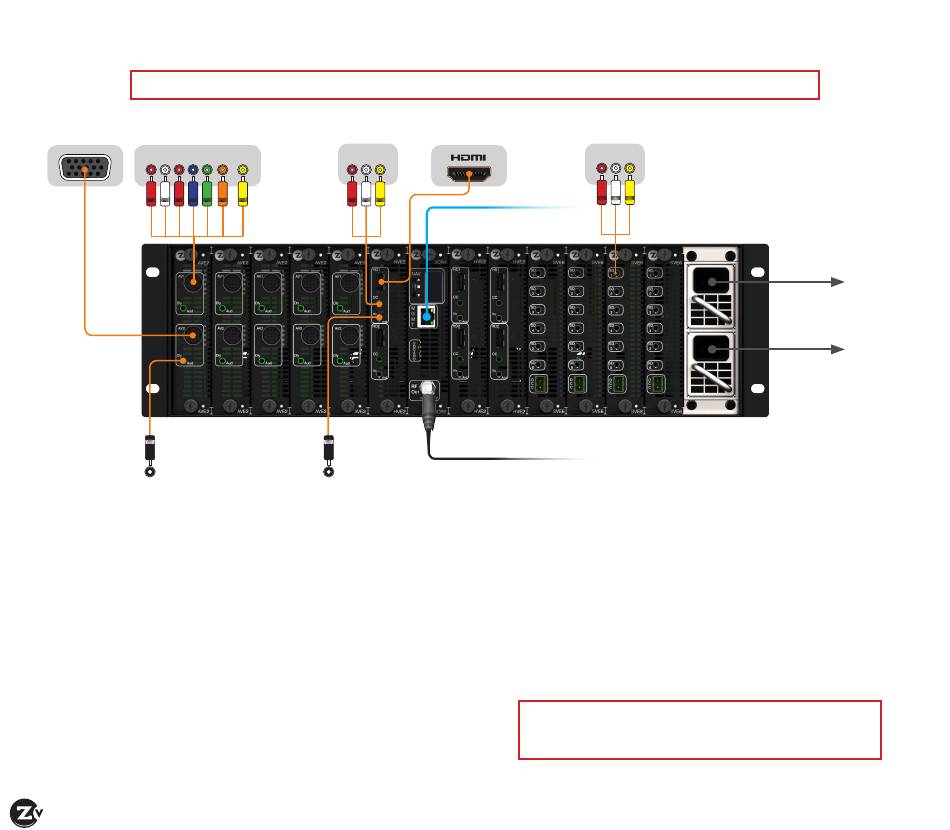

NOTE: Illustration shows HDbridge3000 with HDMI, Component/VGA, and Composite cards, which are sold separately.
Component and/or VGA cable
Analog Component Digital
Audio Out Video Out Audio
Optional Delay Matched
Analog Audio Out to
audio system
Dly
Before operating the HDbridge3000, it is recommended to
update to the latest version of firmware, which can be found
on the Support section of the ZeeVee website.

Beginning Setup

1. Install the desired module in each slot. Screws should
be hand-tightened. Do not use pliers or other high-torque
devices.
2. Connect each source device to each card using
the required cables. See the illustration, above, for
information.
3. Connect an Ethernet cable from the MGMT port to the IP
network or directly to the PC.
|
Page 6 H D br i dge 300 0 C o n f ig u r a t io n G u id e
(Requires ZeeVee CAVC6 3.5mm plug to RCA
Composite AV cable)
CC CC
x 2
per card
Dly
(Requires ZeeVee CAVC6 3.5mm plug to RCA
Composite AV cable)
Composite
x 2
Video Out
per card
Ethernet cable
connects to LAN
Coax cable connects to
coax network
4. Connect a coaxial cable from the RF Out port to the RF
network.
5. Connect the included AC power cords from both power
supplies to available AC outlets.

Tuning your channel at the HDTV (Auto Scan)

1. Select the Cable setting (not Air or Antenna) in your TV
menu.
2. Enter the RF number to tune directly to the channel.
If you cannot tune directly to the channel at this point, it is
because most TVs will require you to run a full Auto Scan.
NOTE: Defaults are RF # 2 through 25 with matching channel
numbers (e.g. 2/2/1, 3/3.1, etc). Composite cards use three
sub-channels per RF # (e.g. 2 / 2.1, 2.2, 2.3).
x 6
per card
Power cords
to available
AC outlets
