Basic Installation
Factory default settings in the product allow ZvBox® 170 to broadcast a component HD source with analog audio on
channel 2.1 over coax cabling, for reception at connected HDTVs.

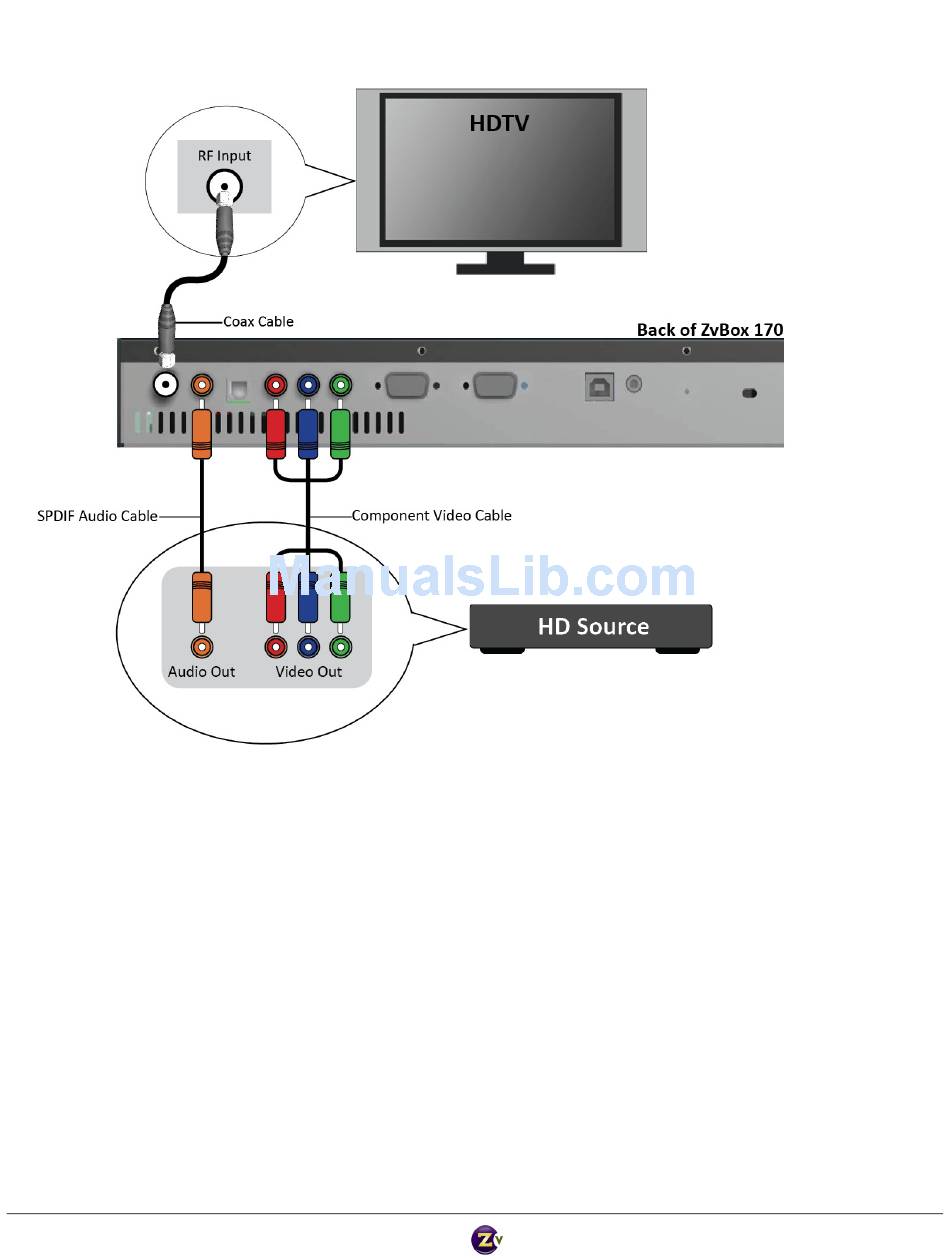

1. Plug ZvBox® 170 power cord into AC outlet.
2. Connect Component Video output of HD source to Component Video Input of ZvBox® 170.
3. Connect SPDIF audio output of HD source to Digital Audio Input of ZvBox® 170.
4. Connect coaxial output of ZvBox® 170 to HDTV RF Input.
5. Tune HDTV to channel 2.1.
®
ZvBox
170
Get Going Guide
v.1.0
Page 4
