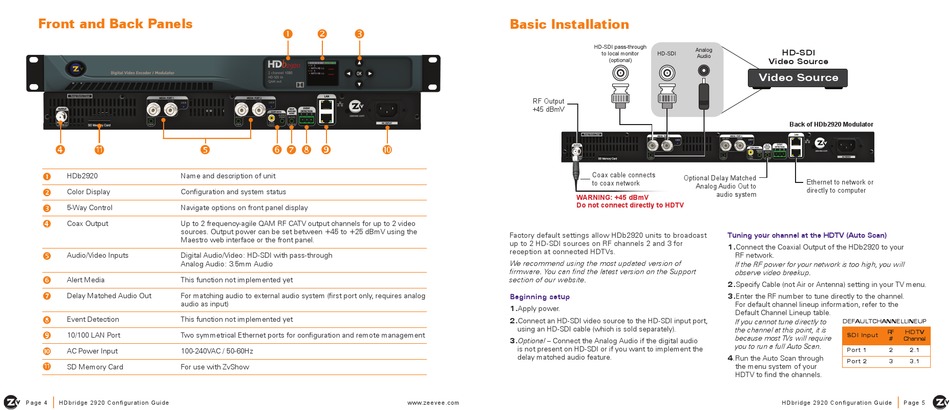

Front and Back Panels

 
1 1
 HDb2920 Name and description of unit

Color Display Configuration and system status

5-Way Control Navigate options on front panel display
 Coax Output Up to 2 frequency-agile QAM RF CATV output channels for up to 2 video
sources. Output power can be set between +45 to +25 dBmV using the
Maestro web interface or the front panel.
 Audio/Video Inputs Digital Audio/Video: HD-SDI with pass-through
Analog Audio: 3.5mm Audio
 Alert Media This function not implemented yet

Delay Matched Audio Out For matching audio to external audio system (first port only, requires analog
audio as input)

Event Detection This function not implemented yet
 10/100 LAN Port Two symmetrical Ethernet ports for configuration and remote management

AC Power Input 100-240VAC / 50-60Hz
1 1 SD Memory Card For use with ZvShow
|
Pa ge 4 H D br i dg e 29 2 0 Co n fi g u ra tio n Gu id e
  
    
w ww.z eev ee.c om

Basic Installation

HD-SDI pass-through
to local monitor HD-SDI
(optional)
RF Output
+45 dBmV
Coax cable connects
Optional Delay Matched
to coax network
WARNING: +45 dBmV
Do not connect directly to HDTV
Factory default settings allow HDb2920 units to broadcast
up to 2 HD-SDI sources on RF channels 2 and 3 for
reception at connected HDTVs.
We recommend using the most updated version of
firmware. You can find the latest version on the Support
section of our website.

Beginning setup

1. Apply power.
2. Connect an HD-SDI video source to the HD-SDI input port,
using an HD-SDI cable (which is sold separately).
3. Optional – Connect the Analog Audio if the digital audio
is not present on HD-SDI or if you want to implement the
delay matched audio feature.
Analog
HD-SDI
Audio
Video Source
Video Source
Back of HDb2920 Modulator
Ethernet to network or
Analog Audio Out to
directly to computer
audio system

Tuning your channel at the HDTV (Auto Scan)

1. Connect the Coaxial Output of the HDb2920 to your
RF network.
If the RF power for your network is too high, you will
observe video breakup.
2. Specify Cable (not Air or Antenna) setting in your TV menu.
3. Enter the RF number to tune directly to the channel.
For default channel lineup information, refer to the
Default Channel Lineup table.
If you cannot tune directly to
DEFAULT CHANNEL LINEUP
the channel at this point, it is
SDI Input
because most TVs will require
you to run a full Auto Scan.
Port 1
4. Run the Auto Scan through
Port 2
the menu system of your
HDTV to find the channels.
H D bri d ge 2 92 0 Co n f ig u ra t io n Gu id e
R F HDTV
# Channel
2 2.1
3 3.1
|
Pa g e 5
