Basic Installation

HD-SDI pass-through
RF Output
+45 dBmV
Coax cable connects
to coax network
WARNING: +45 dBmV
Do not connect directly to HDTV
Factory default settings allow HDb2920i units to broadcast
up to 2 HD-SDI sources on RF channels for reception at
connected HDTVs, and in IP for distribution over Ethernet
networks.
We recommend using the most updated version of
firmware. You can find the latest version on the Support
section of our website (zeevee.com).

Beginning setup

1. Apply power.
2. Connect an HD-SDI video source to the HD-SDI input port,
using an HD-SDI cable (which is sold separately).
3. Optional – Connect the Analog Audio if the digital audio
is not present on HD-SDI or if you want to implement the
delay matched audio feature.

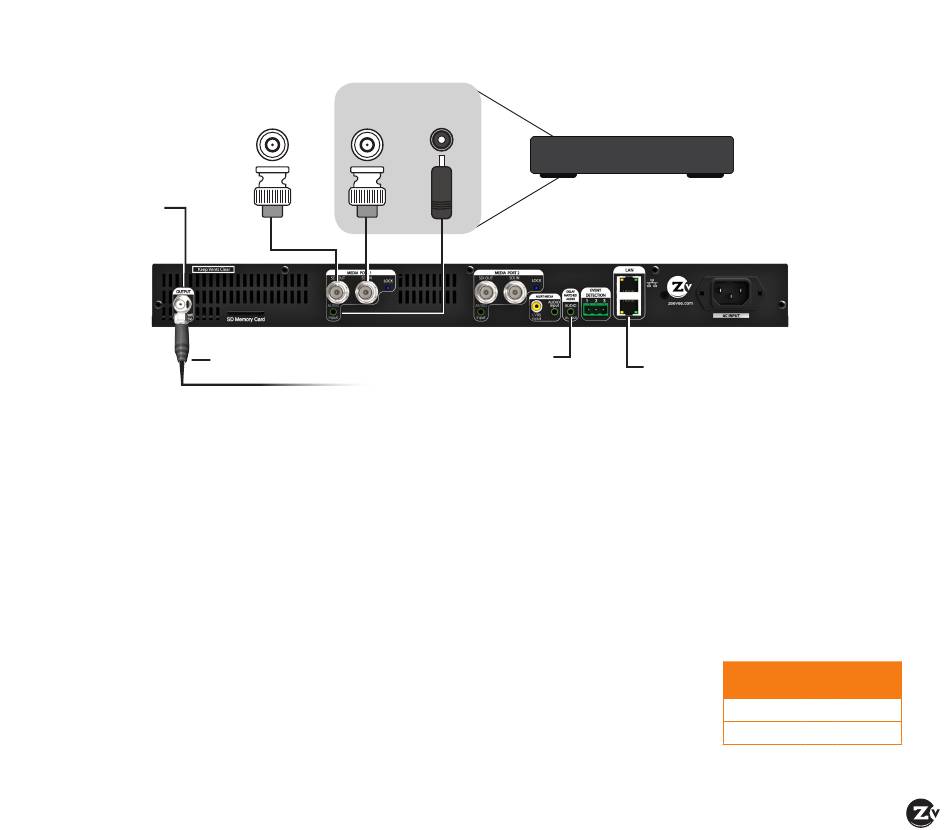

to local monitor HD-SDI
(optional)
Analog
HD-SDI
Audio
Video Source
Video Source
Delay Matched
Analog Audio Out to
audio system

Tuning your channel at the HDTV (Auto Scan)

1. Connect the Coaxial Output of the HDb2920i to your
RF network.
If the RF power for your network is too high, you may
observe video breakup.
2. Specify Cable (not Air or Antenna) setting in your TV menu.
3. Enter the RF number to tune directly to the channel.
For default channel lineup information, refer to the
Default Channel Lineup table.
If you cannot tune directly to
the channel at this point, it is
because most TVs will require
you to run a full Auto Scan.
4. Run the Auto Scan through
the menu system of your
HDTV to find the channels.
H D bri dg e 29 20i C onf i gu rat io n G ui de
Back of HDb2920i Modulator
Ethernet to network or
directly to computer
DEFAULT CHANNEL
SETTINGS
SDI Input
Port 1
Port 2
RF HDTV
# Channel
2 2.1
3 3.1
|
