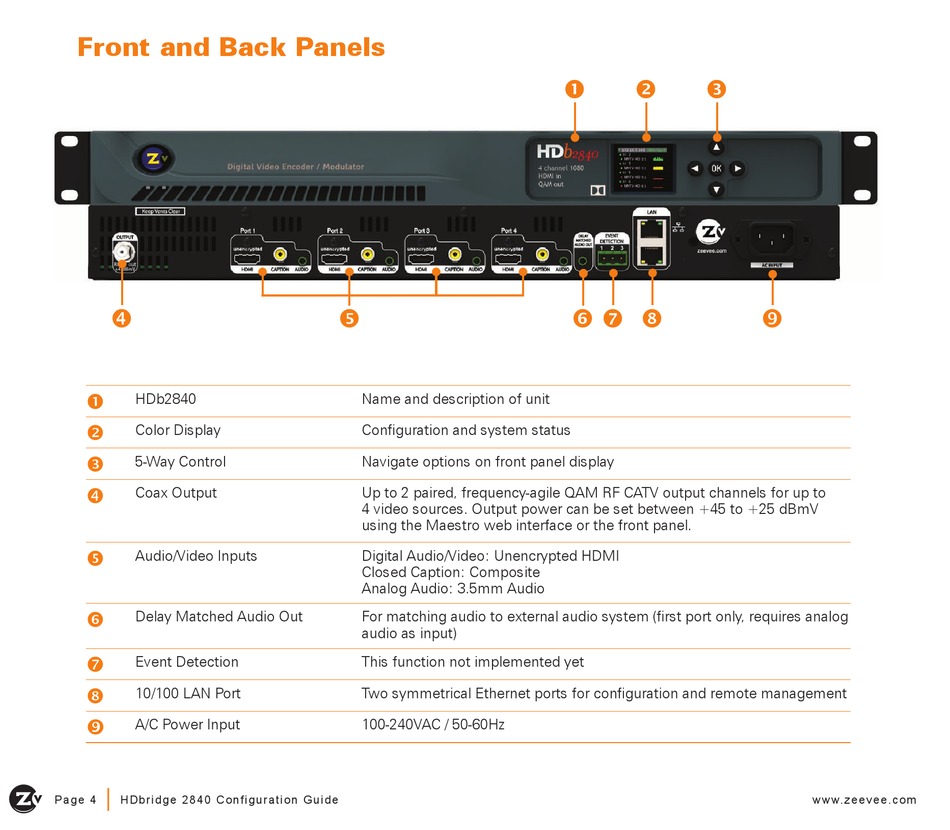

Front and Back Panels


 HDb2840
 Color Display
 5-Way Control
 Coax Output
 Audio/Video Inputs
 Delay Matched Audio Out
 Event Detection
 10/100 LAN Port
 A/C Power Input
|
Page 4 H D br i dge 28 4 0 Co n f i g u r a ti o n Gu i d e

Name and description of unit
Configuration and system status
Navigate options on front panel display
Up to 2 paired, frequency-agile QAM RF CATV output channels for up to
4 video sources. Output power can be set between +45 to +25 dBmV
using the Maestro web interface or the front panel.
Digital Audio/Video: Unencrypted HDMI
Closed Caption: Composite
Analog Audio: 3.5mm Audio
For matching audio to external audio system (first port only, requires analog
audio as input)
This function not implemented yet
Two symmetrical Ethernet ports for configuration and remote management
100-240VAC / 50-60Hz
  
   
