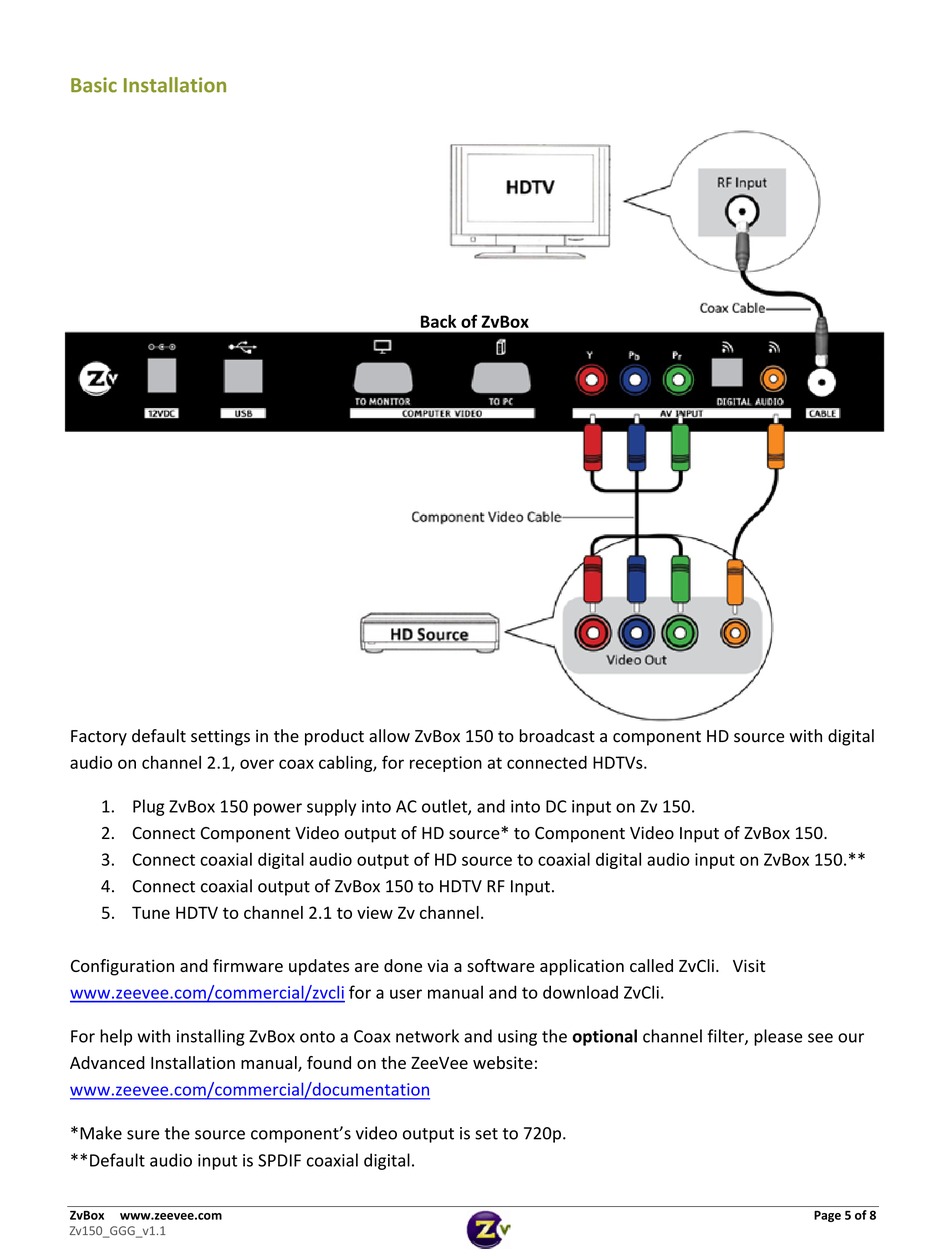

Basic Installation
Factory default settings in the product allow ZvBox 150 to broadcast a component HD source with digital
audio on channel 2.1, over coax cabling, for reception at connected HDTVs.
1. Plug ZvBox 150 power supply into AC outlet, and into DC input on Zv 150.
2. Connect Component Video output of HD source* to Component Video Input of ZvBox 150.
3. Connect coaxial digital audio output of HD source to coaxial digital audio input on ZvBox 150.**
4. Connect coaxial output of ZvBox 150 to HDTV RF Input.
5. Tune HDTV to channel 2.1 to view Zv channel.
Configuration and firmware updates are done via a software application called ZvCli. Visit
www.zeevee.com/commercial/zvcli for a user manual and to download ZvCli.
For help with installing ZvBox onto a Coax network and using the optional channel filter, please see our
Advanced Installation manual, found on the ZeeVee website:
www.zeevee.com/commercial/documentation
*Make sure the source component's video output is set to 720p.
**Default audio input is SPDIF coaxial digital.
