Chapter 1 Using The Mobile Computer

1.3 KEYPAD

The mobile computer is equipped with a keypad of 29/39 keys for system setup, user
entry and so on. The keypad comes with programmable LED backlight for illumination
that makes the key characters easier to read when ambient light gets weaker. Refer to
1.4 LCD for screen & backlight settings.
The key click can be configured through programming or via System Menu. Refer to
3.2.6 Key Click.
1.3.1 29-KEY & 39-KEY LAYOUT
The layout of the 29-key keypad is similar to that of a telephone, which includes
alphanumeric, navigation and function keys, as well as assorted characters. Refer to
Appendix III — Key Reference Table for color-coded keys.

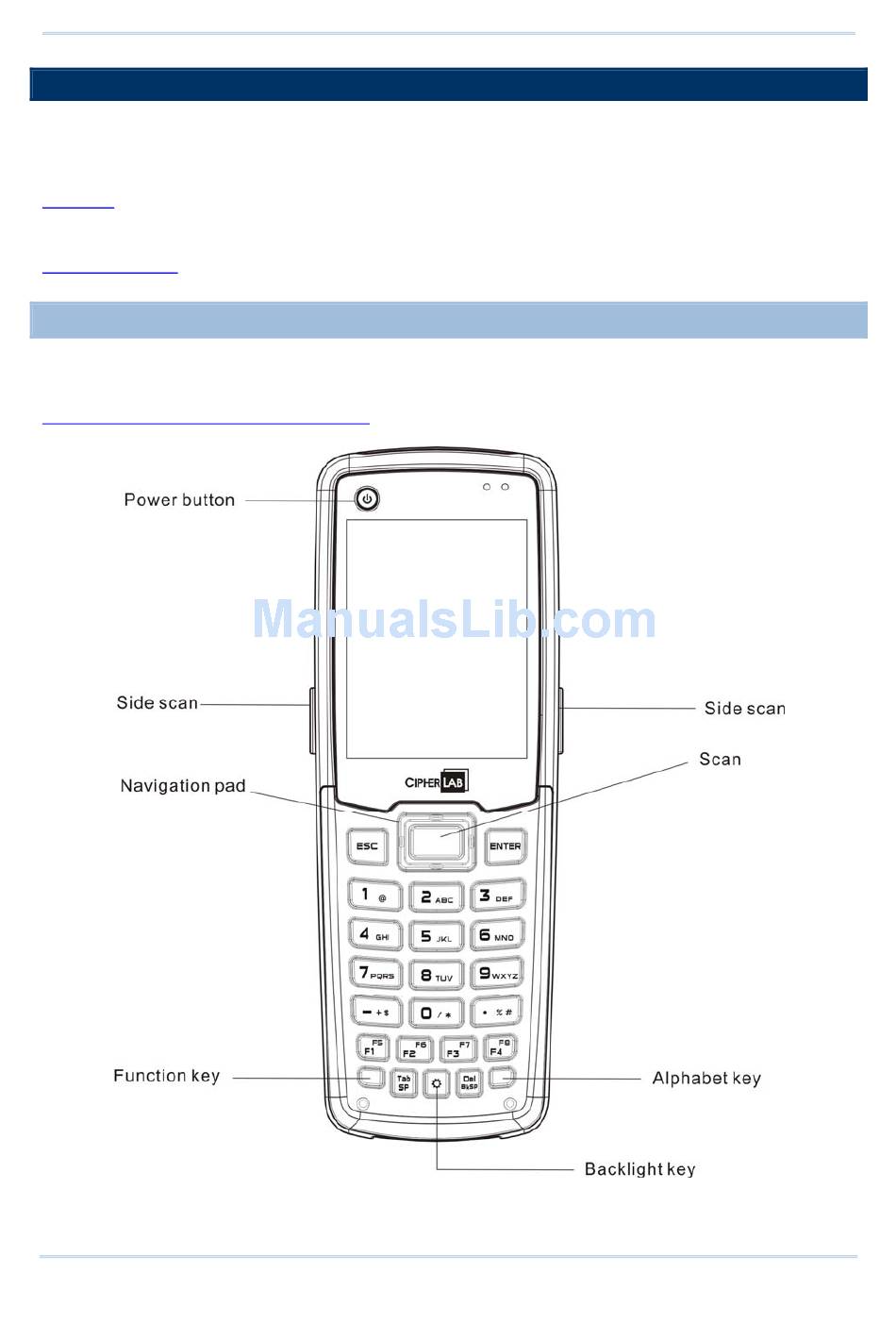

Figure 4: 29-key Layout
