1.3 KEYPAD
For input device, the mobile computer keeps 2 keypad layouts optional, either a 24-key
type or a 44-key one. Both keypad gets programmable LED backlight as the screen does.
Refer to
1.4 LCD
for screen & backlight settings.
Silicon rubber has been chosen for the keys due to durability and easy activation. The
key click sound is configurable through programming or via System Menu. Refer to
3.2.5 Key
Click.
1.3.1 24-KEY LAYOUT
The layout of the 24-key keypad is similar to a telephone keypad. It wedges
alphanumeric, navigation, function keys, and a few symbol keys. Refer to
Appendix III —
Key Reference Tables
for all the characters it enters.

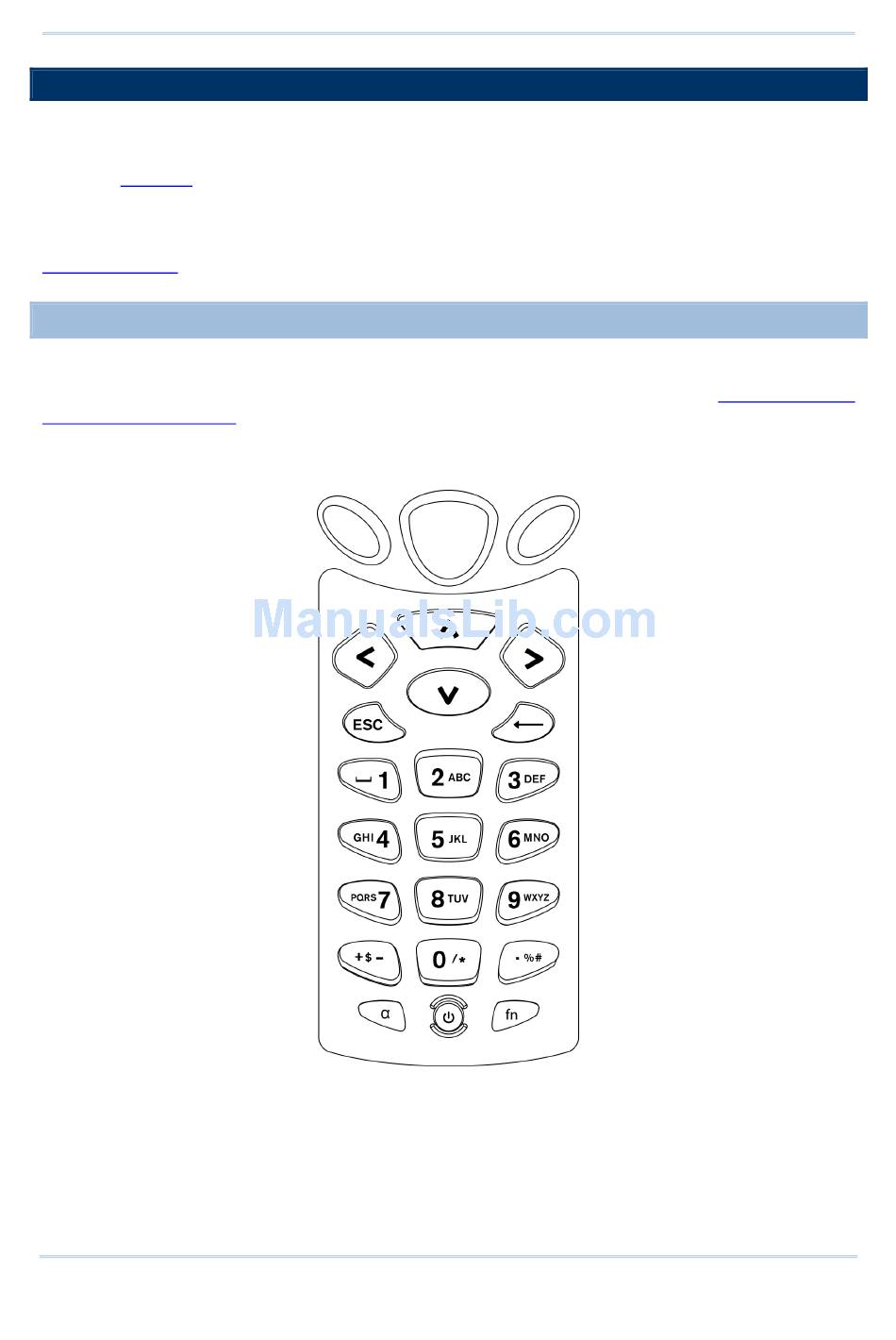

Figure 4: 24-key Layout
14
