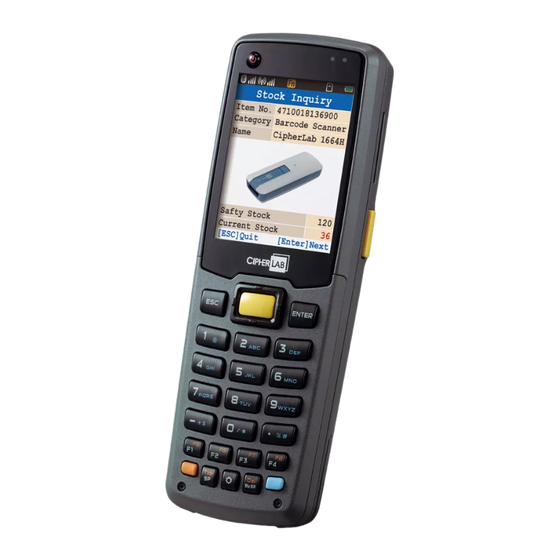

CipherLab 8600 Reference Manual

8600 series
Hide thumbs Also See for 8600:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , User Manual

8600 Series Mobile Computer

8600/8630/8660
Version 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8600 and is the answer not in the manual?

Questions and answers

Related Manuals for CipherLab 8600

Summary of Contents for CipherLab 8600

  • Page 1: Series Mobile Computer

    8600 Series Mobile Computer 8600/8630/8660 Version 1.00...

  • Page 2: Important Notices

    Due to continued product development this information may change without notice. The information and intellectual property contained herein is confidential between CIPHERLAB and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find any problems in the documentation, please report them to us in writing.

  • Page 3: For Usa

    FOR USA This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

  • Page 4: For Europe- Eu Declaration Of Conformity

    FOR EUROPE– EU DECLARATION OF CONFORMITY This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN 60950-1: 2006+A11:2009+A1:2010+A12:2011 Safety of Information Technology Equipment EN 301 489-1 V1.8.1: 2008...
  • Page 5 This device is a 2.4 GHz wideband transmission system (transceiver), intended for use in all EU member states and EFTA countries, except in France and Italy where restrictive use applies. In Italy the end-user should apply for a license at the national spectrum authorities in order to obtain authorization to use the device for setting up outdoor radio links and/or for supplying public access to telecommunications and/or network services.

  • Page 6: For Product With Laser

    DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. The use of any batteries or charging devices, which are not originally sold or manufactured by CipherLab, will void your warranty and may cause damage to human body or the product itself.
  • Page 7 1.00 Oct. 17, 2013 Initial release...

  • Page 9: Table Of Contents

    CONTENTS IMPORTANT NOTICES ........................... - 2 - For USA ..............................- 3 - For Canada ............................- 3 - For Hand-held Product with RF Functions ..................- 3 - For Europe– EU Declaration of Conformity ..................- 4 - For Product with Laser ........................- 6 - Safety Precautions ..........................
  • Page 10 8600 Series Mobile Computer Reference Manual 1.6.1 Barcode Scanner ........................21 1.6.2 RFID Reader .......................... 22 1.7 Charging & Communications ...................... 24 1.7.1 Interface Cable Options ....................... 26 1.7.2 Cradle Options ........................27 1.8 SD Card ............................30 1.8.1 File System ..........................30 1.8.2 Directory ..........................
  • Page 11 8600 Series Mobile Computer Reference Manual 3.6 Load Program ..........................51 3.7 DoFTP Menu ........................... 54 3.7.1 Local ............................55 3.7.2 Manual ........................... 55 3.8 Storage Menu ..........................56 3.8.1 Run as USB Disk ........................56 3.8.2 Access SD Card ........................56 3.9 Bluetooth Menu ..........................
  • Page 12 8600 Series Mobile Computer Reference Manual LED indicators seem not working ...................... 97 LCD seems not working ........................97 Keypad seems not working ........................ 98 Vibrator seems not working ....................... 98 Mobile computer seems not working ....................98 Cannot scan barcodes ......................... 98 Low battery condition ........................

  • Page 13: Introduction

    802.11b/g/n connectivity is also equipped enabling the mobile computer have access to the Internet. The 8600 Series Mobile Computer is bundled with powerful and rich features to ensure success in timely processing of information, and thus, makes an ideal choice for inventory control, shop floor management, warehousing and distribution operations.

  • Page 14: Terminal Models

    8600 Series Mobile Computer Reference Manual TERMINAL MODELS The wireless capabilities of 8600 Mobile Computer Series may vary depending on the specifications implemented. Please refer to the table below. Model WLAN (802.11 b/g/n) WPAN (Bluetooth 4.0) 8600 8630 √ √...

  • Page 15: Accessories

    Introduction ACCESSORIES Rich choices of optional accessories are available for you to enhance the total performance of the mobile computer. Swappable Keypad Hard-shell Pistol Grip (detachable) Spare Rechargeable Li-ion battery Snap-on RS-232 Cable Snap-on USB Cable Snap-on VCOM Cable Charging & Communication Module (CRD-SCC-8S) Cradle Cup (CRD-SCP-86)

  • Page 16: Getting Started

    8600 Series Mobile Computer Reference Manual GETTING STARTED COMPONENT NAMES Figure 1: Overview...

  • Page 17: Inserting Battery & Memory Card

    Introduction INSERTING BATTERY & MEMORY CARD For shipping and storage purposes, save the mobile computer and the main battery in separate packages. This will keep both batteries in good condition for future use. Note: Any improper handling may reduce the battery life. 1) Hold the mobile computer still and slide the release latch to the right to unlock the battery cover.
  • Page 18 8600 Series Mobile Computer Reference Manual Note: For a new battery, make sure it is fully charged before use. Always prepare a spare battery pack, especially when you are on the road.
  • Page 19 Introduction Figure 2: Installing the Memory Card & Main Battery...

  • Page 20: Installing Pistol Grip

    8600 Series Mobile Computer Reference Manual INSTALLING PISTOL GRIP This contoured pistol grip enables intuitive trigger-and-scan operation, which is very helpful in scan intensive applications. When a pistol grip is necessary, install it to the mobile computer by following these steps: 1) Place the terminal computer into the holder of the pistol grip.

  • Page 21: Initial Charging

    Introduction INITIAL CHARGING The main and backup batteries may not be charged to full for shipment. When you first receive the package, you will need to charge the batteries to full before use. Please refer 1.7 Charging & Communications. For the first time charge, it takes approximately 2.5 hours to charge the main battery to full.

  • Page 23: Using The Mobile Computer

    Chapter 1 USING THE MOBILE COMPUTER This chapter explains the features and usage of the 8600 Series Mobile Computer. IN THIS CHAPTER 1.1 Battery ..............12 1.2 Memory ..............14 1.3 Keypad ..............15 1.4 LCD ................. 18 1.5 Notifications .............. 19 1.6 Data Capture ............

  • Page 24: Battery

    8600 Series Mobile Computer Reference Manual 1.1 BATTERY 1.1.1 MAIN BATTERY The mobile computer is powered by a rechargeable 3.7V 1100/2200 mAh Li-ion battery pack that may not be charged to full for shipment. When you first receive the package, you will need to charge the battery to full before use.

  • Page 25: Backup Battery

    Chapter 1 Using The Mobile Computer 1.1.2 BACKUP BATTERY The backup battery, a 3.0V/18mAh rechargeable Lithium button cell on the main board, takes charge of the retention of data in SRAM, real-time clock, and calendar when the main battery is removed or drained. When fully charged, the backup battery can work for at least 25 days without the main battery.

  • Page 26: Memory

    8600 Series Mobile Computer Reference Manual 1.2 MEMORY The collected data can be sent back to a host computer immediately over wireless networks, or stored in memory (SRAM) and uploaded later. The mobile computer is equipped with a calendar chip for accurate time/date logging. When the main battery is...

  • Page 27: Keypad

    Chapter 1 Using The Mobile Computer 1.3 KEYPAD The mobile computer is equipped with a keypad of 29/39 keys for system setup, user entry and so on. The keypad comes with programmable LED backlight for illumination that makes the key characters easier to read when ambient light gets weaker. Refer to 1.4 LCD for screen &...
  • Page 28 8600 Series Mobile Computer Reference Manual This alphanumeric keypad is set to numeral mode by default. Press the blue key at the bottom-right to toggle between upper-case alphabet, lower-case alphabet, and numeral modes. Press the orange key at the bottom-left to toggle between function and numeral modes.
  • Page 29 Chapter 1 Using The Mobile Computer Below briefly describes the functions of common keys on the mobile computer. SCAN The yellow key located at the top center is used to trigger the scan engine so that it can read the barcode.

  • Page 30: Lcd

    8600 Series Mobile Computer Reference Manual 1.4 LCD The mobile computer comes with a TFT graphic LCD, 240 by 320 pixels resolution, which can be programmed to display text or graphics, such as specific font and company logo, to meet varying application needs.

  • Page 31: Notifications

    Chapter 1 Using The Mobile Computer 1.5 NOTIFICATIONS 1.5.1 STATUS LED There are two dual-color LED indicators located at the upper-right of the screen. Both can be programmed to provide information that helps diagnosing. For example, if you are using AG runtime, you will be informed of the scanning result immediately. By default, LED1 is defined to light solid green for a single "Good Read"...

  • Page 32: Audio

    8600 Series Mobile Computer Reference Manual LED1: Red/Green Green User Power ON User definable User definable Solid green for Good Read by default Power Off, Battery System default System default Charging Flashing red: Charging Flashing green: Charging done Charging Error...

  • Page 33: Data Capture

    Chapter 1 Using The Mobile Computer 1.6 DATA CAPTURE 1.6.1 BARCODE SCANNER A wide variety of scan engines is available for delivering flexibility to meet different requirements. Depending on the scan engine integrated, the mobile computer is capable of scanning barcodes of a number of symbologies that are enabled by default while running the preloaded AG runtime.

  • Page 34: Rfid Reader

    8600 Series Mobile Computer Reference Manual Interleaved 25 Enabled Enabled Matrix 25 Disabled Disabled Chinese 25 Disabled Coop 25 Disabled Code 3 of 9 Code 39 Enabled Enabled Trioptic Code 39 Disabled Italian Pharmacode (Code 32) Disabled Disabled French Pharmacode...
  • Page 35 Chapter 1 Using The Mobile Computer HF Tag Protocol UID Only Read Page Write Page ISO 14443A Mifare Standard 1K (Mifare S50) Mifare Standard 4K (Mifare S70) Jcop 41 (only Mifare 1K & 4K compatible) Mifare Ultralight Mifare Ultralight C Mifare ProX Mifare DESFire Mifare Plus...

  • Page 36: Charging & Communications

    Charging USB direct charging 500 mA: USB icon 100 mA: Highlighted USB icon 0 mA: Disable charging for 8600 5 V charging from the adaptor (Plug icon) Communications USB Virtual COM — If using FORGE Application Generator software, you may use a download utility to receive data on your computer; otherwise, run HyperTerminal.exe to receive data directly.
  • Page 37 Chapter 1 Using The Mobile Computer RS-232 Interface Cable Task RS-232 Cable Charging 5 V charging from the adaptor (Plug icon) Communications If using FORGE Application Generator software, you may use a download utility receive data your computer; otherwise, HyperTerminal.exe to receive data directly. Cradle Task Cradle Interface...

  • Page 38: Interface Cable Options

    8600 Series Mobile Computer Reference Manual 1.7.1 INTERFACE CABLE OPTIONS For charging via the USB cable, the standard charging current is 500 mA. However, we recommend that you connect the power adaptor to speed up charging the battery. If you connect the mobile computer to a USB hub, the charging current may be insufficient.

  • Page 39: Cradle Options

    Chapter 1 Using The Mobile Computer 1.7.2 CRADLE OPTIONS A variety of cradles are developed for the mobile computer and ship on your option. These cradles employ different data connections, but they all support charging the mobile computer while transmitting data at the same time. Choose a cradle type that best suits your needs.
  • Page 40 8600 Series Mobile Computer Reference Manual Figure 7: Setting up cradle Charging & Communication Cradle...
  • Page 41 Chapter 1 Using The Mobile Computer Description Description Status LED (POWER) Cable Connector (USB or RS-232) Power Jack Battery Charger Description Description Status LEDs (POWER, CHARGE) Power Jack...

  • Page 42: Sd Card

    (n=1~6). 1.8.1 FILE SYSTEM For 8600 Series, it supports FAT12/FAT16/FAT32 and allows formatting the card through C programming or via System Menu | 8. Next Page | 1. Storage Menu | 2. Access SD Card. Based on the capacity of the card, it will automatically decide the FAT format:...
  • Page 43 Chapter 1 Using The Mobile Computer DAT Filename DAT file #1 TXACT1.DAT DAT file #2 TXACT2.DAT DAT file #3 TXACT3.DAT DAT file #4 TXACT4.DAT DAT file #5 TXACT5.DAT DAT file #6 TXACT6.DAT DBF Filename DBF file #1 Record file F1.DB0 System Default F1.DB1 Index...

  • Page 44: File Name

    8600 Series Mobile Computer Reference Manual \AG\DBF Application Generator (a.k.a. AG) Store DAT, DBF, and Lookup files that are created and/or accessed Application \AG\DAT Generator to this folder. \AG\EXPORT \AG\IMPORT 1.8.3 FILE NAME A file name must follow 8.3 format (= short filenames) — at most 8 characters for filename, and at most three characters for filename extension.

  • Page 45: Learning Software Architecture

    Chapter 2 LEARNING SOFTWARE ARCHITECTURE This chapter mainly describes the software inside the mobile computer. It consists of three modules — Kernel, System, and Application; each has a function menu. When a menu is displayed, you may select an item by either of the following ways: Press the arrow keys [Up] and [Down] to move the highlight bar.
  • Page 46 8600 Series Mobile Computer Reference Manual Figure 8: Software Architecture IN THIS CHAPTER 2.1 Application Module ............. 35 2.2 System Configuration & Core ........37...

  • Page 47: Application Module

    Chapter 2 Learning Software Architecture 2.1 APPLICATION MODULE The mobile computer ships with software package on the CD-ROM including FORGE Application Generator (Batch and WLAN versions), MIRROR Emulator (VT and 5250 versions), and download utilities. 2.1.1 FORGE APPLICATION GENERATOR (AG) FORGE Application Generator (AG) software package includes: Forge.exe/AG8600WLAN.exe on the host computer AG Runtime on the mobile computer...

  • Page 48: Mirror Emulator (Ciphernet)

    Companion Tool on PC End VT100/220 82xx-VT.SHX CipherNet-VT.exe IBM 5250 82xx-5250.SHX CipherNet-5250.exe 2.1.3 USER PROGRAM You may need to develop your own application program. For developing custom applications, CipherLab provides BASIC and C compilers through licensing. For detailed information, please contact your sales representative.

  • Page 49: System Configuration & Core

    For managing system configurations and multiple programs, each mobile computer comes with System Menu, Program Manager, and Kernel Menu. Refer to the following chapters on how to configure the 8600 Series Mobile Computer, regarding system configurations and program download. 2.2.1 SYSTEM MENU...
  • Page 50 8600 Series Mobile Computer Reference Manual...

  • Page 51: System Menu

    Chapter 3 SYSTEM MENU System Menu offers an interface for engineers (programmers or system integrator) to view system information, change the configuration parameters, download programs and run diagnostics. This menu is designed for engineering tests and maintenance ONLY. For this reason, it provides password protection to prevent unauthorized users from accidentally changing system settings.

  • Page 52: Information

    8600 Series Mobile Computer Reference Manual IN THIS CHAPTER 3.1 Information ............... 40 3.2 Settings ..............42 3.3 Tests ............... 46 3.4 Memory ..............49 3.5 Power ..............50 3.6 Load Program ............51 3.7 DoFTP Menu .............. 54 3.8 Storage Menu ............56 3.9 Bluetooth Menu ............

  • Page 53: Understanding Device Code

    Chapter 3 System Menu 3.1.1 UNDERSTANDING DEVICE CODE Device Code Modular Component Types 1st digit Reader module 0= none 1= CCD scan engine 2= Laser scan engine 3= 2D scan engine 2nd digit Wireless module 0= none 5= Bluetooth only 8= Bluetooth + 802.11b/g/n 3rd digit Reserved...

  • Page 54: Settings

    8600 Series Mobile Computer Reference Manual 3.2 SETTINGS You can change the default settings here. System Settings Default Values Clock Current time Backlight 20 seconds at level 2, backlight shade enabled Contrast Level 4 Auto Off 10 minutes Power On Options...

  • Page 55: Contrast

    Chapter 3 System Menu 3.2.3 CONTRAST Set the contrast level for the LCD. Press the arrow keys [Up] and [Down] to adjust the contrast level. 3.2.4 AUTO OFF The mobile computer will be turned off automatically when no operation is taking place during a specified period of time.

  • Page 56: Key Click

    By default, it is set to use one virtual COM port for all (=FIXED), regardless of how many 8600 mobile computers are connected to PC when USB Virtual COM is in use. This setting requires you to connect one 8600 at a time, and will facilitate configuring a great amount of 8600 mobile computers via the same virtual COM port (for administrators’...

  • Page 57: System Password

    Chapter 3 System Menu 3.2.11 SYSTEM PASSWORD Set a password to control user access to System Menu, Program Manager and Kernel Menu. The password can be up to eight alphanumeric characters. Note: The password is case-sensitive. To disable a previous password, enter blank on the "Input new password"...

  • Page 58: Tests

    8600 Series Mobile Computer Reference Manual 3.3 TESTS Here provides functional tests for key parts. 3.3.1 READER Test the reading performance of the scanner. The supported symbologies depend on the scan engine you use. Refer to 1.6 Data Capture for symbologies that are enabled by default.

  • Page 59: Echo Test

    Chapter 3 System Menu Warning! The contents of the data memory (SRAM) will be wiped out after test. 3.3.6 ECHO TEST After a physical connection is established properly, run a test utility on your computer and start the test on your mobile computer. Select a desired baud rate if necessary. To stop and exit the test, press [ESC].
  • Page 60 8600 Series Mobile Computer Reference Manual Satellite Number Displays how many GPS satellites are in view. Signal/Noise Ratio measured in dB.

  • Page 61: Memory

    Chapter 3 System Menu 3.4 MEMORY Here provides information and initialization function of the memory. 3.4.1 SIZE INFORMATION — onboard SRAM for data memory Flash — program memory 3.4.2 INITIALIZE Initialize the data memory. Warning! The contents of the data memory (SRAM) will be wiped out after memory initialization.

  • Page 62: Power

    8600 Series Mobile Computer Reference Manual 3.5 POWER Here shows current voltage consumption. Main (battery) It shows dynamic status of the battery pack, which is used as the main power source. Backup (battery) It shows dynamic status of the button cell, which is used to retain data in SRAM.

  • Page 63: Load Program

    Chapter 3 System Menu 3.6 LOAD PROGRAM Here you can access the Load Program service provided by the kernel. Because the kernel will take over the job, you will not be able to return to System Menu by pressing [ESC]. After downloading, restart the mobile computer to activate the new program. Refer to Appendix I Download Utility.
  • Page 64 8600 Series Mobile Computer Reference Manual SETTINGS Interface Options Description RS-232 Proceed to configure baud rate settings on your computer and the mobile computer. USB VCOM Connect the USB cable between your computer and the mobile computer. Bluetooth Approach the target Bluetooth enabled device.
  • Page 65 Chapter 3 System Menu LOAD PROGRAM VIA SD CARD Press the arrow keys to select a file. Then, press [ENTER] to view information of the program file. 1) If you have copied the desired program file(s) to your SD card, go to System Menu | 6.

  • Page 66: Doftp Menu

    8600 Series Mobile Computer Reference Manual 3.7 DOFTP MENU This submenu is for the FTP client connection. It will log the mobile computer into an FTP server via Wi-Fi or Ethernet Cradle for the following tasks. Execute and/or update the script file “FTP.dat”...

  • Page 67: Local

    Chapter 3 System Menu 3.7.1 LOCAL Depending on the script file “FTP.dat” saved on the mobile computer, you may update the script file or download any program update from FTP server, if necessary. SETTING Interface Options Supported Description Ethernet Cradle Seat the mobile computer in the Ethernet Cradle.

  • Page 68: Storage Menu

    8600 Series Mobile Computer Reference Manual 3.8 STORAGE MENU This submenu is for using the mobile computer equipped with SD card as a removable disk, as well as for directly accessing files on SD card. Note: When SD card is present, the card icon will appear flashing while being accessed.
  • Page 69 System Menu Check Memory For an SD card that has never been used on 8600, a message like “Found New SD Card” will be displayed allowing users to scan the card for memory check. If the action is canceled then, memory check can still be performed here.

  • Page 70: Bluetooth Menu

    8600 Series Mobile Computer Reference Manual 3.9 BLUETOOTH MENU This submenu is for the mobile computer, with built-in Bluetooth module, to work with other Bluetooth enabled devices. You must configure these parameters correctly. Bluetooth Settings Default Value HID, SPP, FTP Client...

  • Page 71: Information

    Chapter 3 System Menu 3.9.1 INFORMATION Information of network configuration can be viewed here. Bluetooth Menu | 1. Information Kernel version All user libraries reside in Kernel; no external libraries are required. MAC address of the Bluetooth module A name given to the mobile computer for identification By default, it is made up of model number and the serial number.

  • Page 72: Connect Setting

    8600 Series Mobile Computer Reference Manual 3.9.2 CONNECT SETTING Set the connection parameters if necessary. Local Name Enter a name for identifying the mobile computer. By default, it is made up of model number and the serial number. Remote Name Leave it empty unless you want to make a specific connection.

  • Page 73: Security

    Chapter 3 System Menu 3.9.3 SECURITY Set or modify security parameters. Authentication Options — Enable or Disable PIN Code Define the encryption key values. Up to 16 characters, using ASCII code. Note: When authentication is enabled without providing a pre-set PIN code, the mobile computer supports dynamic input of PIN code during pairing.

  • Page 74: Echo Tests

    8600 Series Mobile Computer Reference Manual 3.9.4 ECHO TESTS These echo tests are used for verifying connectivity to make sure the mobile computer is within coverage. Press [ESC] to stop and exit the test. SPP: Serial Port Profile It is used for ad hoc networking.
  • Page 75 Chapter 3 System Menu SPP Master Set the mobile computer as a master device. 1. Pairing with your computer (slave) must be completed first. 2. Run the utility “EchoTest.exe” on your computer. Associated settings include - Select “RS-232” for interface. - Use the Bluetooth COM port that has been paired.
  • Page 76 8600 Series Mobile Computer Reference Manual DUN GPRS The mobile computer will try to connect to a mobile phone with GPRS functionality. 1. Pairing with your mobile phone must be completed first. Select “DialUp Network” for Target Machine options. 2. Run the utility “EchoTest.exe” on your computer. Associated settings include - Select “TCP/IP –...

  • Page 77: Pairing Test

    Chapter 3 System Menu 3.9.5 PAIRING TEST The pairing procedure is for the creation and exchange of a link key between two Bluetooth-enabled devices. The devices use the link key for future authentication when exchanging information. 1) The mobile computer will start with making an inquiry so that the system can generate a list of device(s) that has been discovered nearby.

  • Page 78: Frequent Devices

    8600 Series Mobile Computer Reference Manual 3.9.6 FREQUENT DEVICES Here is a list of devices that the mobile computer has been connected to lately. After each successful pairing, the system will update it. This list can show information of one device that provides any of the following services:...

  • Page 79: Wi-Fi Menu

    Chapter 3 System Menu 3.10 WI-FI MENU This submenu accesses the settings of 802.11b/g wireless networking. You must configure these parameters correctly to be able to make the connection. Note: The menu is available only when the Wi-Fi module is present. Wi-Fi Settings Default Value Ad-hoc...

  • Page 80: Information

    8600 Series Mobile Computer Reference Manual 3.10.1 INFORMATION Information of network configuration can be viewed here. Wi-Fi Menu | 1. Information Kernel version All user libraries reside in Kernel; no external libraries are required. Firmware version of the Wi-Fi module MAC address of the Wi-Fi module A name given to the mobile computer for identification.

  • Page 81: Network Setting

    Chapter 3 System Menu 3.10.2 NETWORK SETTING Set parameters for IP networking. DHCP Options — Enable or Disable Subnet Mask Enter a new Mask IP, if necessary. Local IP Address Enter a new address for the mobile computer, if necessary. Default Gateway Enter a new address for the default Gateway, if necessary.

  • Page 82: Wlan Setting

    8600 Series Mobile Computer Reference Manual 3.10.3 WLAN SETTING Wireless networking can operate in two modes – (1) Ad-hoc mode: peer-to-peer, and (2) Infrastructure mode: point to multi-point through access points. Set the following parameters. Local Name Enter a name for identifying the mobile computer.
  • Page 83 Chapter 3 System Menu Fixed BSSID This refers to the use of a specific AP’s MAC address as the fixed Basic Service Set Identifier. The mobile computer can ONLY communicate with this one and only access point. Scan Time Specify the time period the mobile computer searches for wireless devices on the network. Normal: By default the scanning time is set to normal.

  • Page 84: Security

    8600 Series Mobile Computer Reference Manual 3.10.4 SECURITY Set or modify security parameters. WEP: Wired Equivalent Privacy EAP: Extensible Authentication Protocol WPA: Wi-Fi Protected Access Authentication Default authentication type [1] Open System This requires implementing WEP key. [0] Share Key...

  • Page 85: Scan Devices

    Chapter 3 System Menu WPA Passphrase Enter a phrase as your password (8 ~ 63 characters) 3.10.5 SCAN DEVICES Select this command to launch the scanning for the Wi-Fi hotspots within range. The mobile computer will first produce a scanning screen and then a result screen that displays all the WiFi hotspots discovered whether open or secured.

  • Page 86: Profile

    8600 Series Mobile Computer Reference Manual 3.10.6 PROFILE This function allows users to create up to four Wi-Fi profiles. SSID Enter the SSID (up to 32 characters). Ad-Hoc This refers to peer-to-peer mode, without going through access points. Options — Enable or Disable...
  • Page 87 Chapter 3 System Menu Enable WPA Setting Disable (default) Enable WPA2 Setting Disable (default) WPA Passphrase Enter a phrase as your password (8 ~ 63 characters)

  • Page 88: Echo Tests

    8600 Series Mobile Computer Reference Manual 3.10.7 ECHO TESTS This function is used to measure the coverage of the range, estimate the number of APs and mobile computers needed, and determine the topology of deploying APs. Client Mode Set the mobile computer as a client. Enter the IP address of a server to which the mobile computer connects.
  • Page 89 Chapter 3 System Menu The changing icon indicates 8600 is processing a pre-share key. Wait for a few seconds. The antenna icon will become ready and flashes to indicate 8600 is connecting to an access point under the same SSID.
  • Page 90 8600 Series Mobile Computer Reference Manual Once the connection of echo test is established, the details will be displayed as illustrated below. SNR (dB) RSS (-dBm) NF (-dBm) (Signal to Noise ratio) (Transmit Speed) (Received Signal (Noise Floor Level) Strength Level)

  • Page 91: Program Manager & Kernel

    Chapter 4 PROGRAM MANAGER & KERNEL This chapter explains Program Manager and Kernel that manage multiple programs and firmware upgrade. IN THIS CHAPTER 4.1 Program Manager ............79 4.2 Kernel ..............86 4.1 PROGRAM MANAGER The mobile computer supports multiple applications and languages. In the menu of Program Manager, it allows storing up to six programs and has one activated for the current use.

  • Page 92: Download Program

    8600 Series Mobile Computer Reference Manual 4.1.1 DOWNLOAD PROGRAM Here provides a list of programs currently stored on the mobile computer with size information. Multiple application programs can be downloaded through a variety of interfaces. Upon completion of downloading, you are allowed to input a name for the program.
  • Page 93 Chapter 4 Program Manager & Kernel SPARE MEMORY SECTORS (1 ~ 6) Additional program files can be directly downloaded to these sectors. Download a program file to an empty sector: 1. Press the arrow keys [Up] and [Down] to select an empty sector, and then press [ENTER]. 2.

  • Page 94: Activate Program

    8600 Series Mobile Computer Reference Manual 4.1.2 ACTIVATE PROGRAM The list shows the entire spare programs stored on the mobile computer. From the list, you can select from the memory sector (1 ~ 6) or SD card. The selected program will be copied to the active memory sector and replace the current one.

  • Page 95: Upload Program

    Chapter 4 Program Manager & Kernel 4.1.3 UPLOAD PROGRAM You may duplicate one of the programs from the mobile computer to a host computer or another mobile computer. This can be used to clone software on mobile computers. The procedures are similar to that for downloading programs. If the target is “Terminal”, only the “RS232”...

  • Page 96: Download Font

    8600 Series Mobile Computer Reference Manual 4.1.4 DOWNLOAD FONT The terminal computer can be loaded with up to 6 font files. Users can input characters in fonts loaded on the device. 4.1.5 UPLOAD FONT You may duplicate one of the fonts from the mobile computer to a host computer or...

  • Page 97: Upload All

    Chapter 4 Program Manager & Kernel 4.1.6 UPLOAD ALL You may duplicate all of the programs/fonts from the mobile computer to another one or a host computer. Note: To clone all of the programs, the target mobile computer cannot have any other program downloaded except the active one;...

  • Page 98: Kernel

    8600 Series Mobile Computer Reference Manual 4.2 KERNEL The kernel resides in the innermost core of the system. It has the highest security and is always protected by the system. When the application program is corrupted and System Menu fails at the same time, Kernel Menu provides an access to fix the system.

  • Page 99: Kernel Information

    Chapter 4 Program Manager & Kernel 4.2.1 KERNEL INFORMATION Here provides important system information to help diagnose the system. Kernel Menu | 1. Information Hardware version Serial number of the mobile computer Manufacturing date Bootloader version Kernel version 4-digit code for optional hardware configurations Refer to Understanding Device Code.

  • Page 100: Kernel Update

    8600 Series Mobile Computer Reference Manual 4.2.2 KERNEL UPDATE The kernel and bootloader might need to be updated to improve performance or due to other considerations. Refer to Appendix I Download Utility. The procedure of downloading a kernel (K8600.shx) or bootloader (BL8600.shx) update is like downloading a program.
  • Page 101 Chapter 4 Program Manager & Kernel KERNEL UPDATE VIA BLUETOOTH 1) Go to Kernel Menu | 4. System Menu | 8. Next Page | 2. Bluetooth Menu | 3. Security, and configure the following Bluetooth settings first. Authentication PIN code 2) Go to Kernel Menu | 2.

  • Page 102: Burn-In Test

    8600 Series Mobile Computer Reference Manual 4) Press [ENTER] to confirm downloading the program file to the mobile computer. Press [ESC] to abort the download task. 4.2.3 BURN-IN TEST This tool is provided for manufacturing use. Warning! You should not perform this test.

  • Page 103: Specifications

    SPECIFICATIONS Model Designation 8600 8630 8660 Performance ARM Cortex-M3, 180 MHz Memory Program memory – 8 MB flash Data memory – onboard SRAM, options include 8 or 16 MB Expansion micro SD Slot with SDHC support Main Battery Rechargeable Li-ion battery – 3.7 V, 1100/2200 mAh...
  • Page 104 8600 Series Mobile Computer Reference Manual User Environment Operating Temperature -10 ~ 60 °C (14 ~ 140 °F) Storage Temperature -20 ~ 70 °C (-4 ~ 158 °F) Humidity (non-condensed) 10% to 90% (operating) / 5% to 95% (storage) Ingress Protection...

  • Page 105: Download Utility

    Appendix I DOWNLOAD UTILITY For easy development of applications, the mobile computer ships with FORGE Application Generator programs, batch and WLAN versions, as well as a download utility. FILE TYPES Depending on the file type, you may download a program or font file via System Menu, Program Manager or Kernel Menu.

  • Page 106: Basic Programs

    8600 Series Mobile Computer Reference Manual BASIC PROGRAMS First, download a BASIC runtime (e.g. B8600.SHX) via System Menu or Program Manager. Then, it will allow you to download a BASIC program (.SYN) via System Menu.

  • Page 107: Progload.exe

    Any BASIC program after BASIC Runtime has been installed first. .BIN file Any C program Use PC utility “SHX2Bin.exe” to convert the program (.SHX .BIN). Note: (1) For 8600, USB Virtual COM shares the interface option of RS-232/IrDA. (2) Cradle-IR is not supported on 8600.
  • Page 108 8600 Series Mobile Computer Reference Manual...

  • Page 109: Troubleshooting

    Try to re-charge the battery and monitor the charging status. Warning! Only use batteries or charging device manufactured by CipherLab. The use of wrong battery or charging device could result in damage to human body or the product itself, and will void your warranty.

  • Page 110: Keypad Seems Not Working

    8600 Series Mobile Computer Reference Manual KEYPAD SEEMS NOT WORKING Perform the keyboard test. (See 3.3.4 Keyboard.) If the problem persists, reload the battery pack and perform the test again. VIBRATOR SEEMS NOT WORKING Perform the vibrator test. (See 3.3.7 Vibrator.)

  • Page 111: Out Of Scanning Range

    Appendix III Troubleshooting OUT OF SCANNING RANGE Try adjusting the scanning distance from the scanner to the barcode. CANNOT TRANSMIT/RECEIVE DATA USING RS-232 CABLE Check if the RS-232 connection is correct and secured. Make sure the serial port parameters on the host are configured to match the serial parameters on the mobile computer.

  • Page 112: Key Reference Table

    8600 Series Mobile Computer Reference Manual KEY REFERENCE TABLE 29-KEY KEYPAD SYSTEM DEFAULTS Blue Blue Orange key Orange key pressed pressed pressed pressed once twice once twice BkSp BkSp PQRS pqrs WXYZ wxyz...

  • Page 113: Extended Function Keys

    Appendix III Key Reference Table EXTENDED FUNCTION KEYS Blue Blue Orange key Orange key pressed pressed pressed pressed once twice once twice PQRS pqrs WXYZ wxyz Extended Function Keys must be enabled through programming! BkSp BkSp...

  • Page 114: 39-Key Keypad

    8600 Series Mobile Computer Reference Manual 39-KEY KEYPAD SYSTEM DEFAULTS Blue Blue Orange key Orange key pressed pressed pressed pressed once twice once twice < > &...
  • Page 115 Appendix III Key Reference Table Blue Blue Orange key Orange key pressed pressed pressed pressed once twice once twice BKSP BkSp BkSP BkSp BkSp NCC 警語： 依據低功率電波輻射性電機管理辦法: 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號使用者均不得擅自變更頻率、加大 功率或變更原設計之特性及功能。 第 十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾現象時，應立即停 用，並改善至無干擾時方得繼續使用。 前項合法通信，指依電信法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫 療用電波輻射性電機設備之干擾。...
  • Page 116 8600 Series Mobile Computer Reference Manual FCC: THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

This manual is also suitable for:

86308660
