Wireless Smart Scan
For 8230/8260/8630 Mobile Computers
& 166x Scanners
DOC Version 1.06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8230 and is the answer not in the manual?

Questions and answers

Related Manuals for CipherLab 8230

Summary of Contents for CipherLab 8230

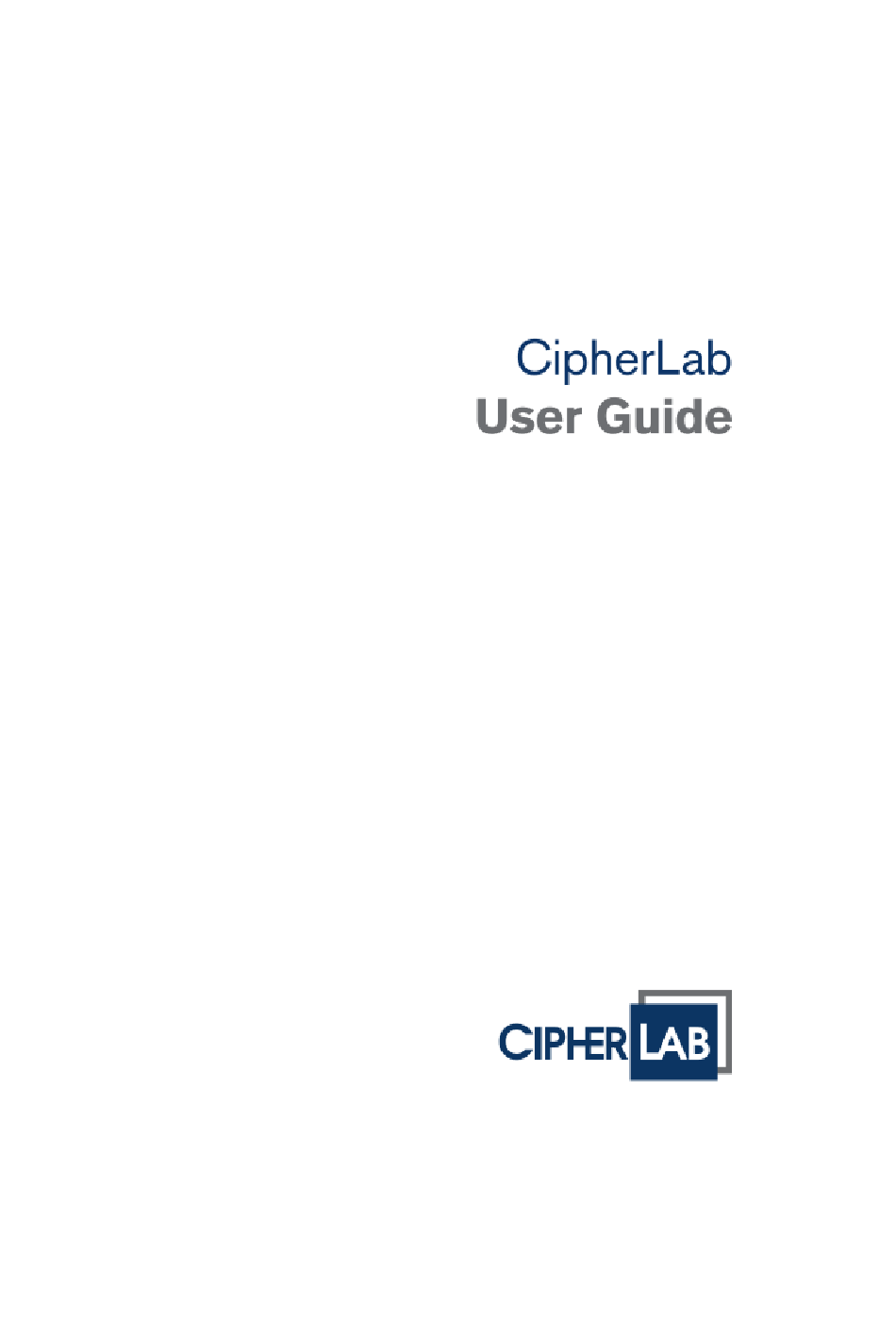

  • Page 1 Wireless Smart Scan For 8230/8260/8630 Mobile Computers & 166x Scanners DOC Version 1.06...
  • Page 2 Due to continued product development this information may change without notice. The information and intellectual property contained herein is confidential between CIPHERLAB and the client and remains the exclusive property of CIPHERLAB CO., LTD. If you find any problems in the documentation, please report them to us in writing. CIPHERLAB does not warrant that this document is error-free.
  • Page 3 RELEASE NOTES Version Date Notes  Modified: Download Settings – descriptions for Fast VPort 1.06 Sep. 14, 2016 interface (8630 only) added  Modified: 1.3 – descriptions for Fast VPort interface (8630 only) added Modified: 2.2 – picture updated  ...

  • Page 4: Table Of Contents

    System Requirements ........................2 Features ............................. 2 Getting Started ..........................3 Download Runtime ........................3 Download Settings (.WSS for 8230/8260/8630) ..............4 Working with Menus & Toolbar ......................6 File Menu ............................6 Utilities Menu ..........................7 Help Menu ............................ 7 Toolbar ............................
  • Page 5 Wireless Smart Scan User Guide WI-FI SETTINGS ..........................29 4.1 Wi-Fi Settings ..........................30 4.2 IP ..............................31 4.3 Security ............................32 4.3.1 Open System/Shared Key ....................32 4.3.2 WEP Key ..........................33 4.3.3 EAP ............................ 34 4.3.4 WPA-PSK/WPA2-PSK Passphrase................... 34 4.4 Reset ............................
  • Page 6 Wireless Smart Scan User Guide 2D Symbologies ......................... 76...

  • Page 7: Introduction

    LED indicator blinking, message displaying; naturally, clients can send collected data to the server host for kinds of business application. The client/server architecture allows multiple clients (8230/8260/8630 mobile computers and 166x series scanners) to connect wirelessly to the server host at the same time.

  • Page 8: System Requirements

    WSS Components Descriptions Wireless Smart Scan Designer WSS Designer is a windows-based graphic interface application to configure settings for 8230/8260/8630 mobile computers. Wireless Smart Scan Console WSS Console is a Windows service to accept requests from multiple clients (mobile computer/scanners).

  • Page 9: Getting Started

    Introduction GETTING STARTED DOWNLOAD RUNTIME 1) Run the ProgLoad.exe utility to download the Wireless Smart Scan runtime program (.SHX) to the mobile computer. Associated Runtime Program WSS8200-vxxxx.shx Download this program file (xxxx means the number of runtime version) to the mobile computer. 2) On the mobile computer, press [7] + [9] + [Power] simultaneously to enter System Menu | Load Program.

  • Page 10: Download Settings (.Wss For 8230/8260/8630)

    Wireless Smart Scan User Guide DOWNLOAD SETTINGS (.WSS FOR 8230/8260/8630) 1) Run WSS Designer.exe. The associated information and default settings of the mobile computer will be displayed as below. 2) Click Utilities | Edit Settings to configure the current user settings for the mobile computer.
  • Page 11 Introduction Meanwhile, turn on the mobile computer and connect to your PC with the appropriate RS-232 or USB cable. As the pictures illustrated below, select 2. Utilities | 7. Download Settings to determine download settings on the mobile computer side. After specifying download settings, return to the Utilities main menu and select 8.

  • Page 12: Working With Menus & Toolbar

    5) From the WSS runtime menu on the mobile computer, select 1. Take Data to collect data. In the case of the steps illustrated above, use the 8230/8260 mobile computer connecting to your PC over Bluetooth (configured in the .WSS file).

  • Page 13: Utilities Menu

    Introduction UTILITIES MENU Command Action… Edit Settings To configure the current user settings. Refer to each chapter.  System Settings  Form Settings  Barcode Reader Settings  Wi-Fi Settings  Prompt Customization Settings Preferences To select a language file for WSS user interface from the pop-up dialog. Download To configure the download interface, COM port and Baud rate settings between Settings...

  • Page 14: Toolbar

    Wireless Smart Scan User Guide TOOLBAR The toolbar allows quick access to commands that are available in the current stage. From left to right, they stand for the following commands: File Menu | New File Menu | Open File Menu | Save Utilities Menu | Preferences Utilities Menu | Edit Settings Utilities Menu | Download Settings...

  • Page 15: System Settings

    Chapter 1 SYSTEM SETTINGS The Wireless Smart Scan (WSS) configuration utility running on your PC offers the convenience of using the graphic interface to configure all of the settings for the mobile computer. Once the configuration file (.WSS) has been downloaded to the mobile computer, the new settings will take effect immediately.

  • Page 16: Connect Interface

    Wireless Smart Scan User Guide 1.1 CONNECT INTERFACE Connect via: Determine the wireless connection, Wi-Fi or Bluetooth, between the mobile computer and your PC. Serial Number for 3610: When you select Bluetooth as the interface, please fill in the serial number of the 3610 Bluetooth dongle which is installed on PC.

  • Page 17: Backlight

    Chapter 1 System Settings 1.2 BACKLIGHT Users can decide to have the mobile computer turn on the LCD backlight by pressing any key. This is to help read information on the screen while in dark environments. 8200 Backlight Setting 8600 Backlight Setting By default, the mobile computer LCD backlight is turned off for 8200 (backlight is turned on for 8600).

  • Page 18: Download Interface

    Wireless Smart Scan User Guide 1.3 DOWNLOAD INTERFACE Select the download interface to send configuration file (.WSS) to the mobile computer. Download Via: Click the drop-down menu to select download interfaces including RS-232, USB-VCOM, USB-VCOM-CDC, and Fast VPort (8630 only). Baud Rate: This setting needs to be configured only when you have selected RS-232 as the download interface.

  • Page 19: Encoding

    Chapter 1 System Settings 1.4 ENCODING By default, small font is applied. Data coming in from the host will be displayed accordingly. This setting also affects the default horizontal/vertical steps that the cursor moves at one time on the host screen. Users can click the Encoding drop-down menu to select a font file language.

  • Page 20: Vibrator

    Wireless Smart Scan User Guide 1.5 VIBRATOR Configure settings for the vibrator. By default, the vibrator is disabled. Click the drop-down menu to determine the vibrating time length in seconds ranging from 1 to 5. 1.6 COLOR PROPERTIES (8630 ONLY) Click the drop-down menus to respectively set colors to the background and foreground of the WSS Utilities main menu.

  • Page 21: Form Settings

    A ‘form’ means a data collecting form with multiple input fields. Data is transferred to a host computer in a real-time way when all the input fields of a form are completed. Each form allows at most eight input fields for 8230/8260, or 12 input fields for 8630. IN THIS CHAPTER 2.1 Font Size ..............

  • Page 22: Font Size

    Wireless Smart Scan User Guide 2.1 FONT SIZE Click the Font Size radio buttons to select between small and large options. Large font must be applied to double-byte languages, such as Chinese and Japanese. 2.2 DATA FIELD DELIMITER By default, a comma (,) is used to separate data fields. Click the up/down arrow button to select other punctuation marks as the delimiter.

  • Page 23: Layout

    Chapter 2 System Settings 2.4 LAYOUT A data collecting form generally consists of a series of input fields that are arranged line after line. For each input field, you need to configure its details, including Data Type, Prompt, Input Type, Min. Length, Max. Length, and Properties. With the data collecting form configured as the picture shown above, the form layout will be displayed on the mobile computer’s screen after establishing the connection.
  • Page 24 Wireless Smart Scan User Guide Data Type Prompt Input Source Length Properties on-screen Min / Max More... Text     Integer     Real     Letter     Boolean   ...
  • Page 25 Chapter 2 System Settings Boolean Only one of these sets of values are acceptable – “0 or 1”, “Y or N” and “T or F”.  If a lookup field is specified, the input value will overwrite the lookup value. ...

  • Page 26: Prompt

    Wireless Smart Scan User Guide 2.4.2 PROMPT “Prompt” is yet another element that needs your configuration for an input field. Specify a prompt string for a specific input field, if necessary. 2.4.3 INPUT TYPE Specify the source that data should be collected from. Reader ...

  • Page 27: Properties

    Chapter 2 System Settings Line Input from Keypad Screen Reading Transaction Record 12345678 12345678 12345678 1234567890 34567890 1234567890 0ABCDE 3456789E 123456789 123456789 #3, 4 123456789 123456789 123456789 NADE #5, 6 1234567890LEMO 1234567890LEMO 1234567890LEMO #7, 8 1234567890ORANGE_JUICE 1234567890ORANGE_JUICE 1234567890ORANGE_JUICE 2.4.6 PROPERTIES Specify field properties if necessary.
  • Page 28 Wireless Smart Scan User Guide Initial Value or Text Select the check box. An initial value or text, up to 9 characters, specified here will be shown in the input field. It is to be replaced by input data. For example, it can be used to prompt an initial value for quantity.

  • Page 29: Reset

    Chapter 2 System Settings 2.5 RESET Press this button to load the default settings. Note: The current settings for the form will be cleared.
  • Page 30 Wireless Smart Scan User Guide...

  • Page 31: Barcode Settings

    Chapter 3 BARCODE SETTINGS According to the requirements of a specific application, barcode settings allow users to enable or disable any of the barcode symbologies and configure the associated parameters. Supported barcodes depend on the scan engine integrated on the mobile computer. IN THIS CHAPTER 3.1 Reader Type ...............

  • Page 32: Reader Type

    Wireless Smart Scan User Guide 3.1 READER TYPE Select a reader type that matches the hardware configuration of the mobile computer. The associated barcode reader settings, as well as the barcode parameters (= symbology settings) will be displayed accordingly. For more information, please refer to the following appendixes: Appendix I –...

  • Page 33: Barcode Parameters (Symbology Settings)

    Chapter 3 Barcode Settings 3.3 BARCODE PARAMETERS (SYMBOLOGY SETTINGS) Depending on the barcode reader selected, configure the associated symbologies. Further details please refer to the Symbology Settings Table in Appendixes II and III. For a symbology along with the button, it means advanced symbology settings are available.

  • Page 34: Reset

    Wireless Smart Scan User Guide 3.4 RESET Click Reset to load the default settings. This applies to the following settings — Barcode Type & Reader Settings  Barcode Parameters  Note: The current settings will be cleared.

  • Page 35: Wi-Fi Settings

    Chapter 4 WI-FI SETTINGS To establish a Wi-Fi connection to a host, Wi-Fi networking settings must be configured correctly. Users can also configure Wi-Fi settings depending on the connection environment via the Wi-Fi Settings menu on the mobile computer.

  • Page 36: Wi-Fi Settings

    Wireless Smart Scan User Guide IN THIS CHAPTER 4.1 Wi-Fi Settings ............. 30 4.2 IP ................31 4.3 Security ..............32 4.4 Reset................. 34 4.1 WI-FI SETTINGS SSID: Type in the SSID of target WLAN to which the mobile computer tries to connect. Generate Settings Barcode: Click this button to generate a setting barcode for quick SSID configuration.
  • Page 37 Chapter 4 Wi-Fi Settings 4.2 IP By default, DHCP server is enabled where all the settings can be obtained. By default, DHCP is enable. If the DHCP function is disabled, the following information should be provided — Subnet Mask  Gateway ...

  • Page 38: Security

    Wireless Smart Scan User Guide 4.3 SECURITY Authentication and encryption help provide data protection on the 802.11b/g (8230) and 802.11b/g/n (8630) network. 4.3.1 OPEN SYSTEM/SHARED KEY Two types of network authentication methods are supported: Open System and Shared Key. Setting...

  • Page 39: Wep Key

    Chapter 4 Wi-Fi Settings sending station. The receiving station or AP will grant any request for authentication.  Open System authentication allows any device network access. If no encryption is enabled on the network, any device that knows the SSID of the access point can gain access to the network.

  • Page 40: Eap

    Wireless Smart Scan User Guide 4.3.3 EAP Select the check box to enable authentication using Extensible Authentication Protocol (EAP). It requires user name and password so that the mobile computer can identify ® itself when associating to Cisco access points. Setting Remark Identity...

  • Page 41: Prompt Customization

    Chapter 5 PROMPT CUSTOMIZATION The WSS Designer utility allows users to edit the menu titles and messages on the mobile computer for display language localization. IN THIS CHAPTER 5.1 Display Language Localization ........35 5.2 Reset................. 36 5.1 DISPLAY LANGUAGE LOCALIZATION Click any menu or message item in the tree menu to have its subitems display on the right side.

  • Page 42: Reset

    Wireless Smart Scan User Guide 5.2 RESET Click Reset to load the default settings. Note: The current settings will be cleared.

  • Page 43: Rfid Reader

    Chapter 6 RFID READER This tab is for 8630 only. With the mobile computer capable of reading RFID tags, this tab is to configure the associated RFID settings. By default, the RFID reader is enabled to read UID only. IN THIS CHAPTER 6.1 Data ................

  • Page 44: Data

    Wireless Smart Scan User Guide 6.1 DATA Read UID By default, the RFID reader is set to read tag UID (Unique Identification).  UID: a permanent factory programmed unique identification (UID) code which is unique to each tag. Read Data Select the check box so that RFID data can be read.

  • Page 45: Miscellaneous

    Chapter 7 MISCELLANEOUS This chapter is intended to explain the menu items on the mobile computer that are not included in the windows-base configuration utility. IN THIS CHAPTER 7.1 Reader Test ..............39 7.2 System Settings ............40 7.1 READER TEST As the pictures illustrated above, users can press the trigger to scan barcode labels to make sure the barcode reader is working and identify the barcode type.

  • Page 46: System Settings

    Wireless Smart Scan User Guide 7.2 SYSTEM SETTINGS 7.2.1 BACKLIGHT Users can configure backlight settings depending on ambient light conditions via the Backlight menu on the mobile computer. 7.2.2 SET DATE & TIME As the pictures illustrated below, this function is designed for users to change system date and time manually.

  • Page 47: Battery Voltage

    7.2.3 BATTERY VOLTAGE As the pictures illustrated below, this function is designed for users to monitor the battery voltage level.
  • Page 48 Wireless Smart Scan User Guide...

  • Page 49: Wireless Smart Scan Console

    Wireless Smart Scan Console is a windows-based application running as a host console to which allows multiple clients to connect. Users can connect to the console via Wi-Fi using 8230/8630 mobile computers, or via Bluetooth SPP using 166x series scanners and 8230/8260/8630 mobile computers.
  • Page 50 Wireless Smart Scan User Guide After running WSS Console, you will see the WSS Console user interface which mainly consists of the Configuration toolbar, Console, Feedback Scenarios, Input Data areas, and the Status bar.

  • Page 51: Configuration Toolbar

    8.2 CONFIGURATION TOOLBAR The toolbar allows quick access to commands including Start/Stop Server, Console Configuration, About, and Exit. From left to right, they stand for the following commands: Click the downward triangle to select between Wi-Fi and Bluetooth. With the connection selected, click the green triangle button to start the server.
  • Page 52 Wireless Smart Scan User Guide Automatically runs application at startup: Check this checkbox to have WSS Console run automatically at system startup. Automatically starts server when application starts: Check this checkbox to start the server when WSS Console starts. TCP/IP (WI-FI CONNECTION ONLY) Port: Specify the port number for WSS Console.
  • Page 53 SAVE DATA Codepage: Click the drop-down menu to select the codepage for WSS Console. File Path: Click the Browse button to determine the directory where the file of saving collected data is located. File Name: Specify the file name that saves the collected data. Save Mode: Determine whether the new collected data is appended or overwritten to the file.
  • Page 54 Wireless Smart Scan User Guide WEDGE OUTPUT (WI-FI CONNECTION ONLY) This tabbed page is available when Wi-Fi is set as the wireless connection. Configure these settings for the collected data to be output to other applications. Keyboard Type: Click the drop-down menu to select the keyboard type for wedge output.

  • Page 55: Console Area & Status Bar

    8.3 CONSOLE AREA & STATUS BAR After the device is connecting with the console, the connected device information will be displayed in the Console area. For Wi-Fi connection, the Console area displays IP address, device name, login time, elapsed time for each connected mobile computer. Besides, a checkbox labelled as ‘Wedge’...

  • Page 56: Feedback Scenarios

    Wireless Smart Scan User Guide 8.4 FEEDBACK SCENARIOS Users can have the connected device respond by beeping, vibrating, blinking, or displaying message to indicate a success scan/duplicate collected data. 8.4.1 SUCCESS SCAN Check the checkboxes and specify a value in times respectively to have the connected device respond to a success scan.

  • Page 57: Duplicate Data

    8.4.2 DUPLICATE DATA Check the checkboxes and specify a value in times respectively to have the connected device respond to a duplicate data. Beeping: With the checkbox checked, enter a value into the field. The connected device will then respond by beeping when a duplicate scan occurs. Vibrating: With the checkbox checked, enter a value into the field.

  • Page 58: Remote Control

    Wireless Smart Scan User Guide 8.4.3 REMOTE CONTROL Enter a value into the fields respectively to have the connected device respond with the specified indication to help users find the device they want when there are a lot of device are connecting to the host.

  • Page 59: Input Data

    8.5 INPUT DATA The collected data will be saved to a text file by default. Besides, the data will also be displayed in the Input Data area. Note: For Wi-Fi connection, if the Wedge checkbox is checked, the collected data will not be displayed in the Input Data area.
  • Page 60 Wireless Smart Scan User Guide...

  • Page 61: Scan Engine Settings

    Appendix I SCAN ENGINE SETTINGS The WSS allows configuring the following reader types, depending on the module equipped on the mobile computer: 8230/8260 8630 Barcode Reader 1D CCD Scan Engine   1D Laser Scan Engine   1D Long Range Laser Scan Engine (LR) ...

  • Page 62: Symbologies Supported

    Wireless Smart Scan User Guide SYMBOLOGIES SUPPORTED Varying by the scan engine installed, the supported symbologies or tag types are listed below. For details on configuring associated settings, please refer to each Appendix separately. CCD, Laser Codabar   Code 11 ...

  • Page 63: Rfid Tags Supported

    Appendix I Scan Engine Settings GS1 DataBar Expanded (RSS Expanded)   GS1 DataBar Expanded Stacked   2D Symbologies PDF417   MicroPDF417   Data Matrix   Maxicode   QR Code   Note Micro QR ...
  • Page 64 Wireless Smart Scan User Guide Dual ISO 14443A compliant  ISO 14443B compliant  ISO 15693 EM4135    ICode SLI    LRI12    LRI64    LRI128    LRI2k   ...
  • Page 65 Appendix I Scan Engine Settings Mifare S50  SLE44R35  SLE66R35  ISO 15693 ICODE SLI    SRF55V02P    SRF55V02S  SRF55V10P    TI Tag-it HF-I    ST LRI64    ST LRI512 ...
  • Page 66 Wireless Smart Scan User Guide...

  • Page 67: Ccd/Laser Scan Engine

    Appendix II CCD/LASER SCAN ENGINE The tables below list reader settings as well as symbology settings for the CCD or Laser scan engine. READER SETTINGS TABLE CCD/Laser Engine Description Default Scan Mode Laser mode Continuous Mode Non-stop scanning  To decode the same barcode repeatedly, move away the scan beam and target it at the barcode for each scanning.
  • Page 68 Wireless Smart Scan User Guide One time, Two times, The higher the reading security is (that is, the more redundancy the user or Three times selects), the slower the reading speed gets.  If "Three Times" is selected, it will take a total of four consecutive successful decodings of the same barcode to make the reading valid.

  • Page 69: Symbology Settings Table

    Appendix II CCD/Laser Scan Engine SYMBOLOGY SETTINGS TABLE CCD/Laser Engine Description Default Codabar Enable Transmit Start/Stop Decide whether to include the start/stop characters in the Character data being transmitted. If "Transmit Start/Stop Characters" is desired, select one set:  abcd / abcd ...
  • Page 70 Wireless Smart Scan User Guide  One or two fixed lengths Select Length 1~126  Range Matrix 25 Disable Start/Stop Selection Refer to Industrial 25. Matrix 25 Verify Check Digit Decide whether to verify the check digit. If the check digit is incorrect, the barcode will not be accepted.
  • Page 71 Appendix II CCD/Laser Scan Engine Disable Verify Check Digit Select one of the three calculation formulas to verify the Single Modulo check digit. If the check digit is incorrect, the barcode will not be accepted.  Single Modulo 10  Double Modulo 10 ...
  • Page 72 Wireless Smart Scan User Guide Transmit Code ID Refer to RSS-14. EAN-8 Enable Convert to EAN-13 The EAN-8 barcode will be expanded into EAN-13, and the next processing will follow the settings configured for EAN-13. GTIN-13 Format Decide whether to convert using GTIN-13 format. Transmit Check Digit Decide whether to include the check digit in the data being transmitted.
  • Page 73 Appendix II CCD/Laser Scan Engine GS1 Formatting GS1-128 (EAN128) Decide whether to enable GS1 formatting for GS1-128. Disable GS1 DataBar Family Decide whether to enable GS1 formatting for GS1 DataBar. Disable Field Separator Specify the field separator. Application ID Mark Specify the application ID mark character.
  • Page 74 Wireless Smart Scan User Guide...

  • Page 75: Scan Engine

    Appendix III 2D SCAN ENGINE The tables below list reader settings as well as symbology settings for the 2D scan engine. READER SETTINGS TABLE 2D Engine Description Default Scan Mode Laser mode Continuous Mode Non-stop scanning  To decode the same barcode repeatedly, move away the scan beam and target it at the barcode for each scanning.
  • Page 76 Wireless Smart Scan User Guide Time-out 3 sec. 0~255 (second) Set the maximum time for decoding to continue during a scan attempt. It applies to the following scan modes only –  Aiming mode  Laser mode  Auto Off mode Aiming Duration 3 sec.

  • Page 77: Symbology Settings Table

    Appendix III 2D Scan Engine SYMBOLOGY SETTINGS TABLE 1D SYMBOLOGIES 2D Engine Description Default Codabar Enable Transmit Start/Stop Decide whether to include the start/stop characters in the Character data being transmitted.  Any Length Select Length Any Length  One or two fixed lengths ...
  • Page 78 Wireless Smart Scan User Guide Matrix 25 Disable Verify Check Digit Decide whether to verify the check digit. If the check digit is incorrect, the barcode will not be accepted. Transmit Check Digit Decide whether to include the check digit in the data being transmitted.
  • Page 79 Appendix III 2D Scan Engine  Any Length Select Length Any Length  One or two fixed lengths  Range (1~55) GS1 DataBar (RSS) GS1 Databar-14 GS1 DataBar-14 is short for GS1 DataBar Omnidirectional. Enable This group consists of (1) GS1 DataBar Omnidirectional, (2) GS1 DataBar Truncated, (3) GS1 DataBar Stacked, and (4) GS1 DataBar Stacked Omnidirectional.
  • Page 80 Wireless Smart Scan User Guide Addon 2 / Addon 5 Refer to UPC/EAN Addon setting. Convert to UPC-A The UPC-E0 barcode will be expanded into UPC-A, and the next processing will follow the settings configured for UPC-A. UPC-E1 Disable Transmit Check Digit Decide whether to include the UPC-E1 check digit in the data being transmitted.
  • Page 81 Appendix III 2D Scan Engine Dutch Postal Enable UPU FICS Postal Disable USPS 4CB/One Code/ Disable Intelligent Mail Composite Codes Composite CC-C Disable Composite CC-A/B Disable Composite TLC-39 Disable GS1-128 Emulation Transmit UCC/EAN Composite Code data as if it was Disable Mode UCC/EAN...
  • Page 82 Wireless Smart Scan User Guide 2D SYMBOLOGIES 2D Engine Description Default 2D Symbologies PDF417 Enable MicroPDF417 Enable Data Matrix Enable Data Matrix Inverse Decide whether to decode Data Matrix Inverse. Regular Only Regular Only Decode regular Data Matrix barcodes only. Inverse Only Decode inverse Data Matrix barcodes only.
  • Page 83 Appendix III 2D Scan Engine MicroQR Enable Aztec Enable Aztec Inverse Decide whether to decode Aztec Inverse. Regular Only Regular Only Decode regular Aztec barcodes only. Inverse Only Decode inverse Aztec barcodes only. Inverse Autodetect Decode both regular and inverse Aztec barcodes. 2D Symbologies - Macro PDF Macro PDF is a special feature for concatenating multiple PDF barcodes into one file, known as Macro PDF417 or Macro MicroPDF417.
