- Page 1 CM-398DI CV/SV to DVI-I Converter Operation Manual CM-398DI...
-
Page 2: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 3: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… 7.1 Left side Panel ................. 7.2 Right side Panel .……………..……………..……..…...….… 7.3 Front Panel .…………………………..…..……..…...…..… 7.4 Top Panel .……..……………………………...……..…...….… OSD ........…..……………....…..…..…... -
Page 4: Introduction
Blu-Ray players or game consoles on DVI monitors. With advanced 3D motion adaptive de-interlace that helps to eliminate jagged edges when displaying content on TV ’ s, the CM-398DI CV/SV to DVI-I Converter is a useful tool for professionals that work with CV/SV sources and DVI displays. -
Page 5: Features
5. Features Supports NTSC 3.58 and PAL High Quality Scaling Engine Output resolution: ■ PC: XGA, SXGA, UXGA ■ DVI: 480p/576p, 720p, 1080p@50/60 3D (frame based) motion adaptive YNR/CNR noise reduction (for Y/C video input) An intuitive On Screen Display ... -
Page 6: Specifications
6. Specifications Input port 1 x CV, 1 x SV Output port 1 x DVI Output Resolution PC: XGA/SXGA/UXGA HD: 480p/576p/720p/1080p@50/ 60Hz Power Supply 5V DC/1A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions (mm) 162.6 (W) x 164.5 (D) x 33.5 (H) Weight(g) -
Page 7: Operation Controls And Functions

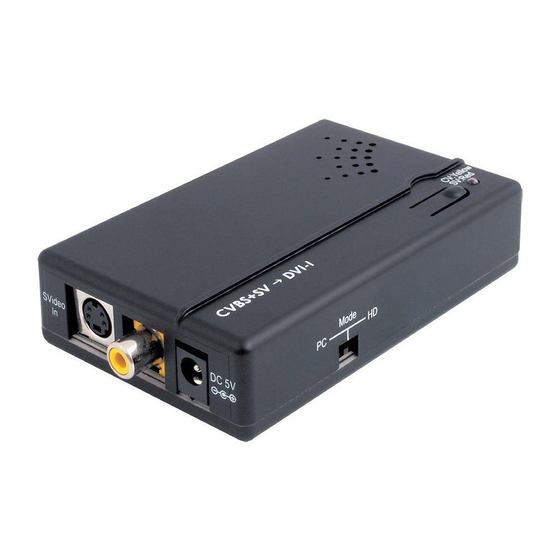

7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Left side Panel SVideo DC 5V ① ② ③ S-Video input: This port is where you connect the S-Video source, such as ① a digital camcorder/camera to the converter with an S-Video cable in order to receive an input signal. -
Page 8: Front Panel
7.3 Front Panel Mode ① ① PC/HD switch: This switch allows you to select either PC or Component HD output. Simply slide the switch to your desired format and it will be shown on the output display. 7.4 Top Panel CV:Yellow CVBS+SV DVI-I... -
Page 9: Osd
8. OSD ← INput Format / Output Resolution ← PC Monitor Infomation ← Firmware Information 1. Press the select input button once to switch between CV/SV input. If the source is disconnected the OSD will show “ No Signal ” . 2. -
Page 10: Connection And Installation
9. Connection and installation PC Monitor 3 RCA Component TV CM-398DI... -
Page 11: Acronyms
Acronyms Acronym Complete Term Composite Video High Definition NTSC National Television System Committee Phase Alternate Line Personal computer Set-Top-Box S-Video SXGA Super eXtended Graphics Array Video Graphics Array Extended Graphics Array UXGA Ultra eXtended Graphic Array...
