- Page 1 CM-398DI CV/SV to DVI-I Converter with Audio Input Operation Manual CM-398DI...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ……………………..……………………...…..….……. Applications …………………..………………….……....….. Package Contents ………………………...………....… System Requirements ……………..………..………....……. Features …………………………………………..……..…...…… Specifications ………………………………...……..………..…. Operation Controls and Functions ……………...……....…… Left side Panel ................. Right side Panel .……………..……………..……..…...….… Front panel .…………………………..…..……..…...….… Top panel .…………………………………...……..…...….… 8. OSD ........…..……………..…..…..…... Connection and Installation ….…………………..…..…..…..Acronyms ….................. -
Page 5: Introduction
1. Introduction This is a low cost video to DVI-I converter box that can convert CV/SV (NTSC or PAL system) to DVI-I resolutions of XGA to UXGA or HD resolutions of 480p to 1080p. With frame rate conversion feature that allows users to view DVD, VCR or video game sources on a DVI monitor this device also has an On-Screen Display function that allows users to easily select the output resolution. -
Page 6: Features
5. Features Operates in NTSC 3.58 and PAL system High Quality Scaling Engine Output resolution: ■ PC resolutions: XGA, SXGA, UXGA ■ DVI resolutions: 480p/576p, 720p,1080p 3D (frame based) motion adaptive YNR/CNR noise reduction (for Y/C video input) On-Screen Display ... -
Page 7: Specifications
6. Specifications Input port 1 x CV, 1 x SV Output port 1 x DVI Output Resolution PC: XGA/SXGA/UXGA HD: 480p/576p/720p/1080p Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ± 4kV (contact discharge) Dimensions (mm) 162.6(W) x 164.5(D) x 33.5(H) Weight(g) -
Page 8: Operation Controls And Functions

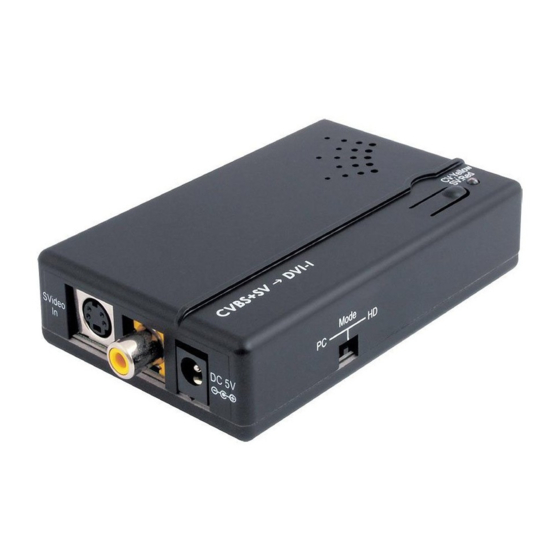

7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Left side Panel SVideo DC 5V ① ② ③ ① S-Video input: This slot is where you connect the input source equipment such as digital camcorder or PDAs with S-Video cable for input signal sending. -
Page 9: Front Panel
7.3 Front Panel Mode ① ① PC/HD switch: This dip switch allows you to select PC or component HD timing output. Simply slide the dip switch to left or right and the output mode will display your desire selection. 7.4 Top Panel CV:Yellow CVBS+SV DVI-I... -
Page 10: Osd
8. OSD ← IN / OUT ← PC Monitor ← F / W 1. Press the top panel ’ s button once to switch in between CV/SV. If input source is disconnected the OSD will show “ No Signal ” . 2. -
Page 11: Connection And Installation
9. Connection and installation PC Monitor 3RCA D-Sub D-Sub Component TV CM-398DI... -
Page 12: Acronyms
Acronyms Acronym Complete Term Digital Theater System High Definition NTSC National Television System Committee Phase Alternate Line Personal computer Set-Top-Box S-Video UXGA Super eXtended Graphics Array Video Graphics Array Extended Graphics Array... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20101021 MPM-CM398DI...
