- Page 1 Video to HDMI Scaler Box Operation Manual CM-392...

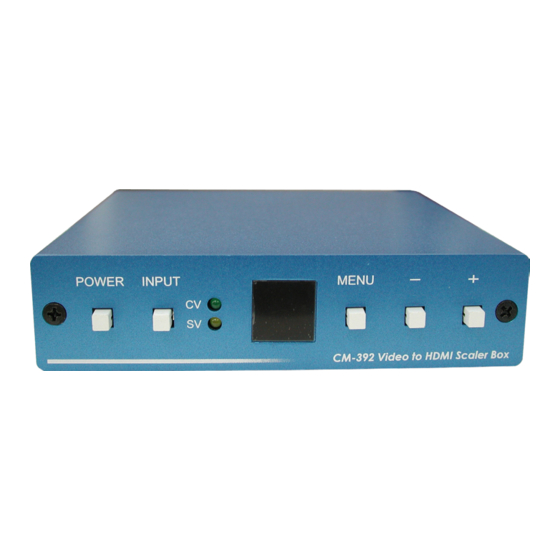

- Page 2 Please visit www.cypress.com.tw to learn more details about these products. This manual includes operation information on the CM-392 model. Please read this to become familiar with the CM-392 and keep the manual for possible reference in the future. Cypress's CM-392 is designed to convert Composite and S-Video to digital HDMI in a variety of HDTV resolutions.
- Page 3 4. Audio input jack: Analog L/R stereo format. 5. HDMI output: The CM-392 can output a variety of LCD and HDTV progressive resolutions, through HDMI connector. Digital output: Connect CM-392's digital HDMI output to the HDMI input of your TV/display unit using a HDMI to HDMI cable.
- Page 4 -RGB * The standard 1080i resolution is 1920 x1080i with sampling rate at 74 MHz. CM-392's 1080i output is 960x540p which is half of the standard resolution, therefore may be not be accepted by some of the HDTVs. (6). OSD Operation...
- Page 5 Output Setup When Output Setup is selected a submenu as below appears: Output Setup Timing XGA Exit Press the " MENU/ENTER" button to enter into output timing select mode. Press +,- to toggle through a variety of output resolutions as below. Once your desired resolution is selected, press the menu/enter to enter the resolution.
- Page 6 (8). Remote Control 1. Display: Press the button to display input source and output resolution on the screen. 2. Power: Power ON/OFF button. 3. VGA~1080i: Press the buttons to select your SVGA desired output resolution. 4. Picture: Press the button to enter picture adjust submenu.
- Page 7 (10). Installation Digital Out: Connect to your TV through digital HDMI interface Video, HDMI Cable SVideo HDMI HDMI output Input VCR, DVD, STB, DVHS LCD display, Projectors, Plasma...
