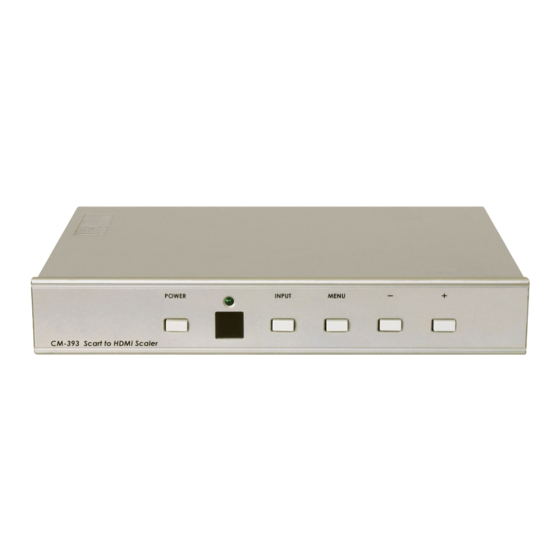

Scart/Video to HDMI Scaler Box Operation Manual CM-393...
Page 2
Please visit www.cypress.com.tw to learn more details about these products. This manual includes operation information on the CM-393 model. Please read this to become familiar with the CM-393 and keep the manual for possible reference in the future. Cypress's CM-393 is designed to scale up scart, Composite and S-Video to HDMI output.It also accepts two HDMI inputs that can be switched with...
Page 3
HDMI 2 The factory default input setting is scart 1. The CM-393 has last memory capability to memorize the last input selected before power down and to return to that input when power back on again. 3. IR Sensor: Infrared remote control sensor.
Page 4
4. CV Audio in: Stereo audio input associated with composite video in via 3.5 mm phone jack. 5. SV audio in: Stereo audio in associated with S-Video in via 3.5 mm phone jack. 6. CV-IN: Use a Composite video cable to connect the composite video output of the source equipment to this composite video(CV) input of the scaler.
Page 5
- The output signal format for the 4 HD resolution (*480p~pseudo1080i) is HDMI YPbPr. 5. Since CM-393's pseudo 1080i output is actually a 540P resolution (960x540p) it may not be accepted by many HDMI TVs due to its pixel clock is only half the real 1080i.
