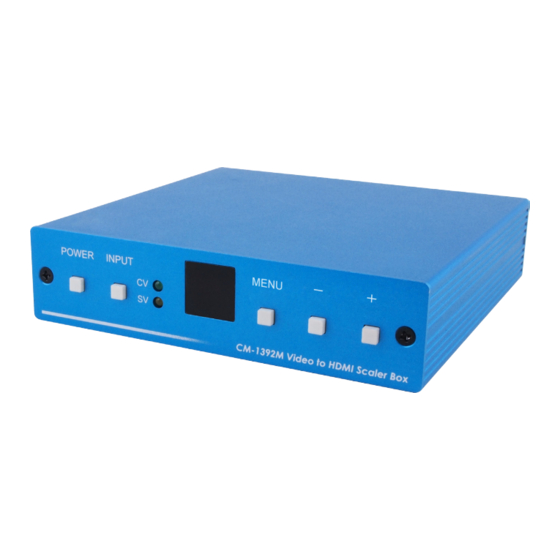

- Page 1 CM-1392M Video and L/R to HDMI Scaler Box Operation Manual CM-1392M...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents Introduction ...................1 Applications ..................1 Package Contents ...............1 System Requirements ..............1 Features ..................1 Specifications ................2 Supporting Input & Output Timing ........2 Operation Controls and Functions ..........3 Front Panel ................3 Rear Panel ................4 8. Output Format .................5 9. -
Page 5: Introduction
1. Introduction The CM-1392M Video to HDMI Scaler Box is designed to scale CVBS and S-Video with R/L audio into HDMI. Supporting PC timings up to WUXGA 1920 x 1200 at 60Hz and HD timings up to 1080p at 60Hz. Supporting the NTSC and PAL TV standards and allowing you to select the specific video timing through... -
Page 6: Specifications
6. Specifications TMDS Clock Frequency 225Mhz Color depth 8bits Color space YUV (HD), RGB (PC) Input Signal Levels Video@1Vp-p, 75 Ω , Y@1Vp-p, 75 Ω , C@0.7 Vp-p, 75 Ω Input Ports 1 x Composite, 1 x S-Video, 1 x R/L Output Port 1x HDMI Audio Input Level... -
Page 7: Operation Controls And Functions
7. Operation Controls and Functions The following sections describe the hardware components of the unit. 7.1 Front Panel POWER INPUT MENU CM-1392M Video to HDMI Scaler Box ① ② ③ ④ ⑤ ① Power button and LED indicator: Press the button once to power on the unit, press again to power off. -
Page 8: Rear Panel
7.2 Rear Panel DC 5V OUTPUT INPUT HDMI AUDIO ① ② ③ ④ ⑤ ① HDMI output: Connect the HDMI output port to the HDMI input of the LCD or HDTV. ② R/L audio input: Connect R/L stereo audio format to the audio source, when selected Composite Video or S-Video the HDMI output will include the stereo audio with the video at the same time. -
Page 9: Output Format
8. Output Format The format for analog PC output is RGB and for analog HD output is YPbPr. PC (RGBHV) HDTV (YPbPr) 640 x 480 60Hz 1080p 1920 x 1080p Follow input source and can convert 50Hz to 60Hz SVGA 800 x 600 60Hz 1080i... -
Page 10: Output Setup
+/- to increase or decrease the value of the parameter. When adjustment is complete, press “ MENU ” to leave the parameter. Move the tick “” to cancel the selection, press MENU/ENTER to Exit. 9.2 Output Setup When output Set up is selected a submenu as below appears: Output Setup ... -
Page 11: Remote Control
10. Remote Control ① Display: Press the button to display input source ① ② and output resolution on the screen. SVGA ② Power: Power ON/OFF button. ③ VGA ~1080p: Press to select your desired output WXGA SXGA UXGA VIDEO ⑧ resolution. -
Page 12: Connection And Installation
11. Connection and Installation Video, HDMI Cable SVideo HDMI HDMI output Input VCR, DVD, STB, DVHS HD display Monitor, Projectors... -
Page 13: Acronyms
Acronyms Acronym Complete Term Composite Video NTSC National Television System committee On-Screen-Display Phase Alternating Line Red Green Blue S-Video... - Page 16 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw 20110317 MPM-CM1392M...
