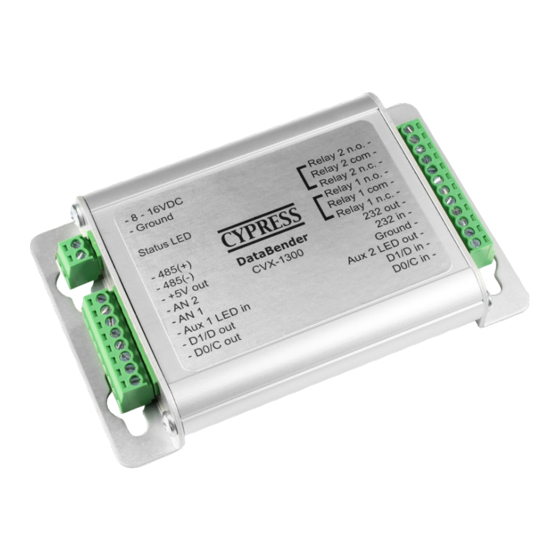

Cypress DataBender CVX-1300 Product Manual

Multi-format converter
Hide thumbs Also See for DataBender CVX-1300:

Advertisement

Quick Links

Download this manual See also: Operating Manual


CVX-1300
CVX-1300
DataBender™
Multi-Format Converter
DataBender™
Product Manual
Universal Format Converter
User Manual
CVX-1300_MAN_181217
Cypress Integration Solutions
35 Years of Access Control Ingenuity
CypressIntegration.com
© 2018 Cypress Computer Systems
1778 Imlay City Road, Lapeer, MI 48446
800-807-2977

Advertisement

loading
Need help?

Need help?

Do you have a question about the DataBender CVX-1300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cypress DataBender CVX-1300

Summary of Contents for Cypress DataBender CVX-1300

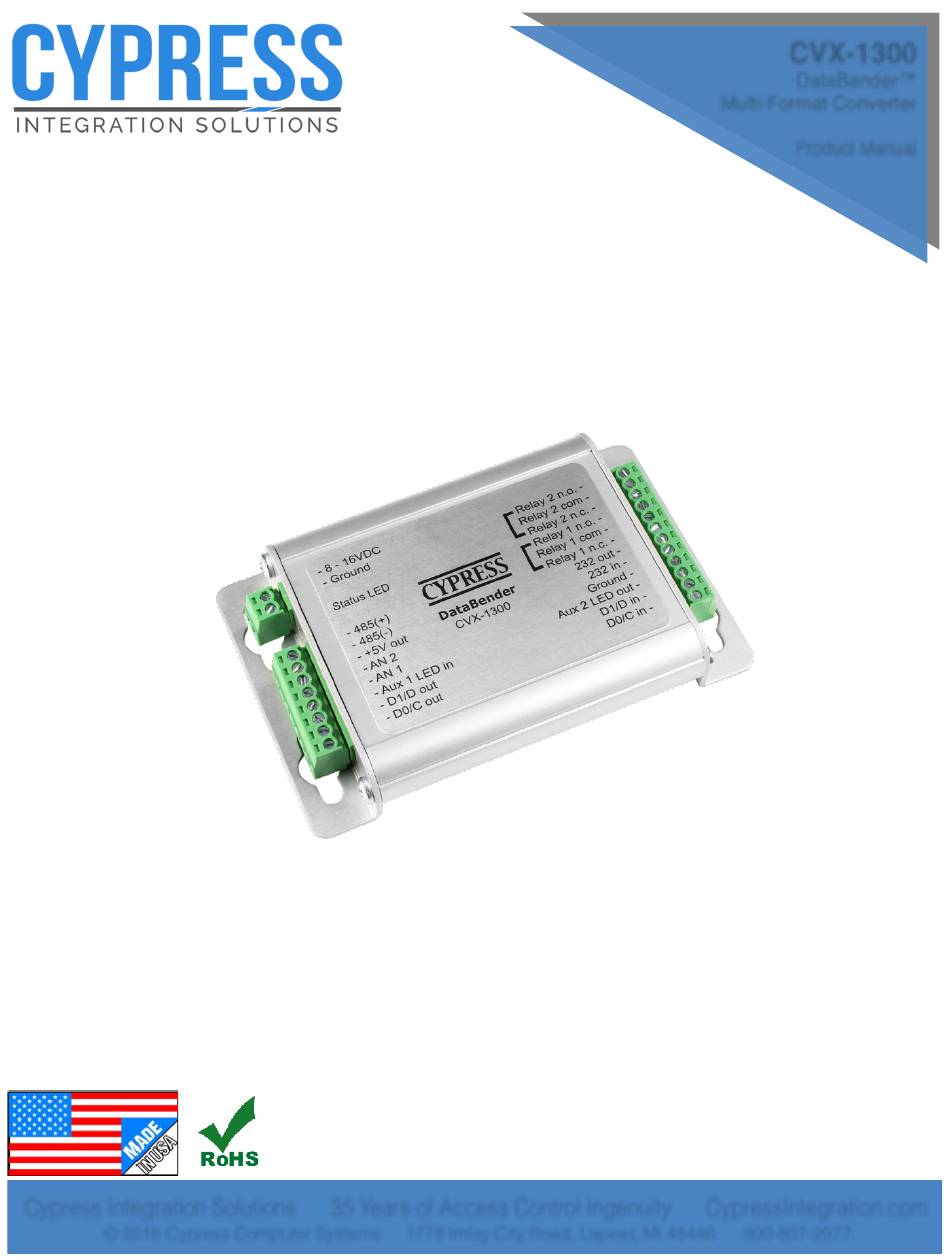

  • Page 1
 CVX-1300 CVX-1300 DataBender™ Multi-Format Converter DataBender™ Product Manual Universal Format Converter User Manual CVX-1300_MAN_181217 Cypress Integration Solutions 35 Years of Access Control Ingenuity CypressIntegration.com © 2018 Cypress Computer Systems 1778 Imlay City Road, Lapeer, MI 48446 800-807-2977...

  • Page 2: Electrical And Mechanical Specifications

    Electrical and Mechanical Specifications
 Aluminum enclosure Physical Size 3.5” x 2.75” x .75” Storage (-55°C to +150°C) Temp Operating (-40°C to +80°C Humidity 95% (non-condensing) Input Unreg Input 8 to 16VDC @ 200ma Max Power Output +5vDC @ 100 ma Reader - Wiegand, Strobed (Clock &...
  • Page 3 1. First determine which converter (conversion process) is required for the application. This may be one of the standard Cypress converters or one of the new converters that are now part of the CVX-1300 library. All of the different conversion processes are described in detail in this manual.

  • Page 4: Electrical And Environmental Specifications

    Electrical and Environmental Specifications Ambient Temperature (Degrees Celsius) Supply Voltage Temperature/Voltage de-rating curve The CVX-1300 units should be operated with a filtered 12 Volt nominal DC supply. Any voltage between 8 and 16 volts can be utilized by following the temperature /voltage derating curve.
  • Page 5 The Cypress CVX-1300 is based on the CVX-1200 series converter. For most legacy converter functions, the DIP switch settings will be set the same as with the Cypress CVX-1200. This document provides detailed wiring information and a reference to DIP switch settings for the converter.
  • Page 6 CVX-1300 Serial data and RS485 The CVX-1300 can support both RS-232 and RS-485 signals for transmitting and receiving serial data. For most converters utilizing serial data, both interfaces are always active and may be used by making the appropriate connections to the converter. Either the RS-232 or RS-485 interface may be used, but a loss of data will occur if both interfaces have active data at the same time.
  • Page 7 CVX-1300 Legacy Compatable formats Converter Input Output Settings(#) CVT2232 Wiegand 24 to 40 Serial 13 Digits with <CR> 1 , 2 , 3 CVT-2111 Wiegand 1 to 40 Serial Dec/Hex Digits 7, 8, 9 CVT-2110 Wiegand 1 to 48 SerialHex Digits 10 , 11, 12 CVT-2144 Wiegand 44...
  • Page 8 CVX-1300 Legacy Compatable formats Converter Input Output Settings(#) CVT-5201 Wiegand 26 bit 10 digit Strobed/ABA CVT-2211 Wiegand ABA Serial ASCII 35,36 CVT-0126 Wiegand 26 bit Wiegand 26 bit fixed FC=215 104 CVT-9117A Serial Transcore Wiegand 26 CVT-3226 Wiegand 32 Bit Kastle Wiegand 26 bit Standard CVT-9133 Serial ASCII...

  • Page 9: Ascii Hex

    DIP Switch Application Table DIP SWITCH SETTING INPUT OUTPUT 1 2 3 4 5 6 7 8 Interface Format Interface Format Test Mode Wiegand 24 to 40 bits RS-232 (9600) 13 Digits,CR Wiegand 24 to 40 bits RS-232 (2400) 13 Digits,CR Wiegand 24 to 40 bits RS-232 (1200)
  • Page 10 DIP Switch Application Table DIP SWITCH SETTING INPUT OUTPUT 1 2 3 4 5 6 7 8 Interface Format Interface Format Wiegand Output TEST MODE- 26 Bit FC =123 Badge = 4567 F/2F Wiegand 37 Bit Custom Dallas iButton 64 Bit Binary Wiegand 26 Bit Wiegand...
  • Page 11 DIP Switch Application Table DIP SWITCH SETTING INPUT OUTPUT 1 2 3 4 5 6 7 8 Interface Format Interface Format Strobed ABA Output TEST MODE Number = 123456789 RS-232 (9600) 10 Dec Wiegand 26 bit RS-232 (2400) 10 Dec Wiegand 26 bit RS-232 (1200)
  • Page 12 DIP Switch Application Table DIP SWITCH SETTING INPUT OUTPUT 1 2 3 4 5 6 7 8 Interface Format Interface Format Reserved Wiegand 24-40 bit Wiegand 26 bit Wiegand 24-40 bit Wiegand 26 bit Wiegand 35 bit Wiegand 26 bit Strobed ABA/ 12 digits Wiegand...
  • Page 13 Standard Wiring Diagrams - CVX-1300 Converter Wiring diagrams are referenced by function and number. The specific converter descriptions will refer to these diagrams. CVX-1300 Electrical Connections 1. Serial data and RS485 2. Standard power supply connections LISTING OF STANDARD WIRING DIAGRAMS 1.
  • Page 14 Wiring Diagram #1 Wiegand to Serial Reader powered by external supply (8 to 16 VDC) Connections to Serial Device +8 to +16 VDC In Power Ground Supply Data Bender® RS232 Output RS232 Input Ground D1/Data In D0/Clock In Card Reader DB-9 Connections Direct to PC Com Port CVX Terminal...
  • Page 15 Wiring Diagram #1 Wiegand to Serial Reader powered by converter +5 VDC Connections to Serial +8 to +16 VDC In Device Power Ground Supply Data Bender® RS232 Output +5VDC Out RS232 Input Ground D1/Data In D0/Clock In Card Reader DB-9 Connections Direct to PC Com Port CVX Terminal DB9 Pin...
  • Page 16 Wiring Diagram #2 Serial to Wiegand Connections +8 to +16 VDC In Power to Serial Supply Ground Device Data Bender® DB9-6 DB9-3 RS232 Output DB9-2 +5VDC Out RS232 Input Ground DB9-5 Access Control Panel Ground Data 1 Out Data 0 Out...
  • Page 17 Wiring Diagram #3 Wiegand to Wiegand Reader powered by external supply (8 to 16 VDC) +8 to +16 VDC In Power Supply Ground Data Bender® Ground Access Control D1/Data In Panel D0/Clock In Data 1 Out Data 0 Out Card Reader Reader powered by 5 Volt Supply +8 to +16 VDC In...
  • Page 18 Wiring Diagram #4 Strobed to Serial Reader powered by external supply (8 to 16 VDC) Connections to Serial +8 to +16 VDC In Device Power Ground Supply Data Bender® RS232 Output RS232 Input Ground D1/Data In D0/Clock In DB-9 Connections Card Direct to PC Com Port Reader...
  • Page 19 Wiring Diagram #4 Strobed to Serial Reader powered by converter +5 VDC Connections to Serial +8 to +16 VDC In Device Power Ground Supply Data Bender® RS232 Output +5VDC Out RS232 Input Ground D1/Data In D0/Clock In DB-9 Connections Card Direct to PC Com Port Reader CVX Terminal...
  • Page 20 Wiring Diagram #5 Serial to Strobed Connections to Serial Device +8 to +16 VDC In Power Supply Ground Data Bender® 5 Volts DB9-6 (If Used) DB9-3 RS232 Output +5VDC Out DB9-2 RS232 Input Ground DB9-5 Access Control Panel Ground Data 1 Out Data 0 Out...
  • Page 21 Wiring Diagram #6 Strobed to Wiegand Reader powered by external supply (8 to 16 VDC) Connections to Serial +8 to +16 VDC In Device Power Supply Ground Data Bender® Card RS232 Output Reader RS232 Input Access Ground Control Panel D1/Data In Ground Strobe D0/Clock In...
  • Page 22 Wiring Diagram #7 Wiegand to Strobed Reader powered by external supply (8 to 16 VDC) +8 to +16 VDC In Power Ground Supply Data Bender® Ground Access Control D1/Data In Panel D0/Clock In Data Out Clock Out Card Reader Reader powered by 5 Volt Supply +8 to +16 VDC In Power Supply...
  • Page 23 Wiring Diagram #8 F2F to Wiegand Reader powered by external supply (8 to 16 VDC) +8 to +16 VDC In Power Supply Ground Ground Access Control F2F Input Panel Ground Data 1 Out Data 0 Out Card Reader Reader powered by 5 Volt Supply +8 to +16 VDC In Power Ground...
  • Page 24 Wiring Diagram #9 Serial to F2F Connections +8 to +16 VDC In Power to Serial Ground Supply Device Data Bender® DB9-6 DB9-3 RS232 Output DB9-2 RS232 Input +5VDC Out Ground DB9-5 Access Control Panel F2F Output...
  • Page 25 Wiring Diagram #10 IButton® to Wiegand +8 to +16 VDC In Power Ground Supply Data Bender® IButton® Reader +5VDC Out Access Ground Control Ground Panel IButton Center Contact Data 1 Out Data 0 4.7 k Pullup Resistor...
  • Page 26 Wiring Diagram #11 Serial to Wiegand Special Application Connections +8 to +16 VDC In Power to Serial Ground Supply Device Data Bender® DB9-4 DB9-3 RS232 Output DB9-2 +5VDC RS232 Input Ground DB9-5 Access Control Ground Panel Data1 Data0...
  • Page 27 Wiring Diagram #12 Radionics to Wiegand Reader powered by external supply (8 to 16 VDC) +VDC (+V) Ground (-V) +8 to +16 VDC In Power Ground Supply Data Bender® Card Reader Data Out (SIG) 485(+) 485(-) +5VDC D1 Output D0 Output Access Control Panel...
