- Page 1 Video to PC/HD Scaler Box Operation Manual...
-
Page 2: This Package Includes
Please visit www.cypress.com.tw to learn more details about these products. This manual includes operation information on the CM-390 model. Please read this to become familiar with the CM-390 and keep the manual for possible reference in the future. Cypress's CM-390 is designed to convert Composite and S-Video to a variety of computer and HDTV resolutions. -

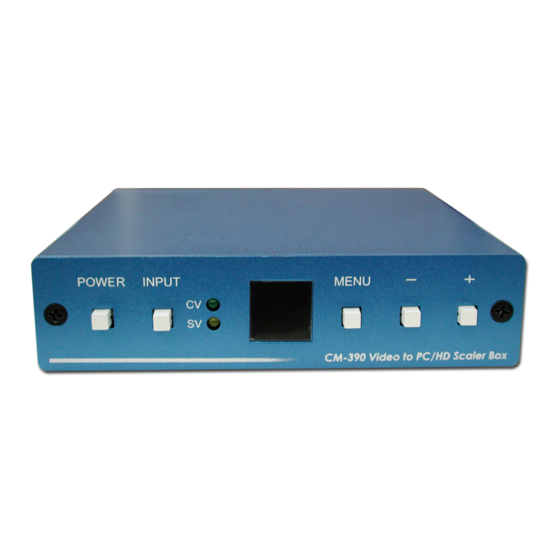

Page 3: Operation Controls And Functions

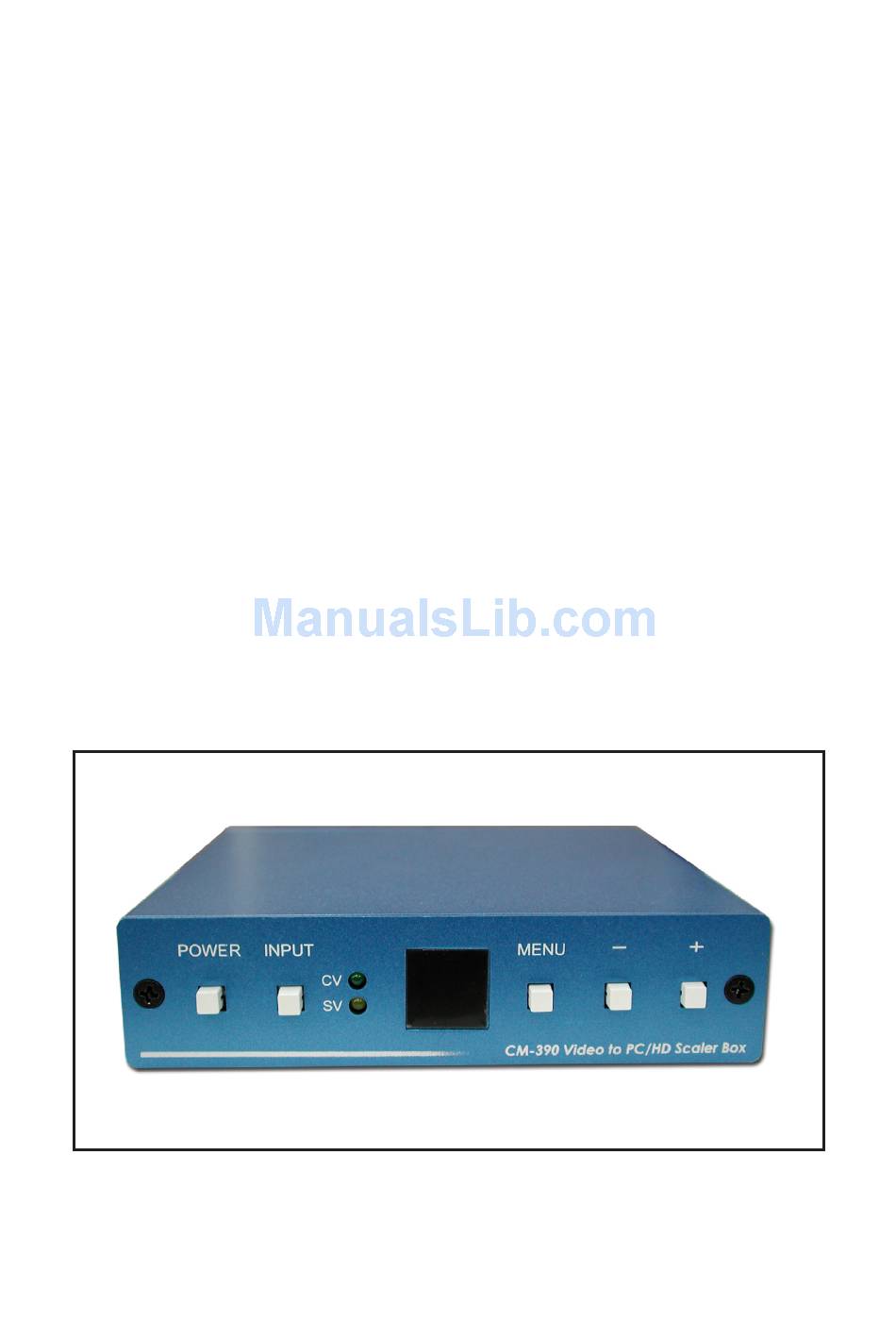

POWER INPUT MENU CM-390 Video to PC/HD Scaler Box 1. Power button and LED indicator: Press the button once to power on the unit, Press again to power off. when the unit is powered on, one of the input LEDs will illuminate depending on your last selection of input source before power off. - Page 4 (5). OSD Operation: After power on the unit , pess the menu button to bring up the main menu page as below: Main Menu Picture adj. Output Setup Exit Use +,- button to move "V" to your desired parameter, then pressing MENU/ENTER to enter into sub-menu of your selected parameter.
-
Page 5: Output Resolution
(6). HD-15 Pin Assignment 1. PC RGB output (VGA~SXGA) 2. HD YPbPr output (480p~1080i) Part No. Pin No. Description (PC out) Part No. Pin No. Description (HD out) GREN BLUE GND (DDC-RETURN) GND (DDC-RETURN) GND-RED GND-Pr GND-GREEN GND-Y DB15HD DB15HD GND-BLUE GND-Pb GND-SYNC... -
Page 6: Specifications
YPbPr * The standard 1080i resolution is 1920 x1080i with sampling rate at 74 MHz. CM-390's 1080i output is 960x540p which is half of the standard resolution, therefore may be not be accepted by some of the HDTVs. (9). Installation...
