Cypress CP-254 Operation Manual

Dvi-d to dvi-i
Hide thumbs Also See for CP-254:

Advertisement

Quick Links

Download this manual

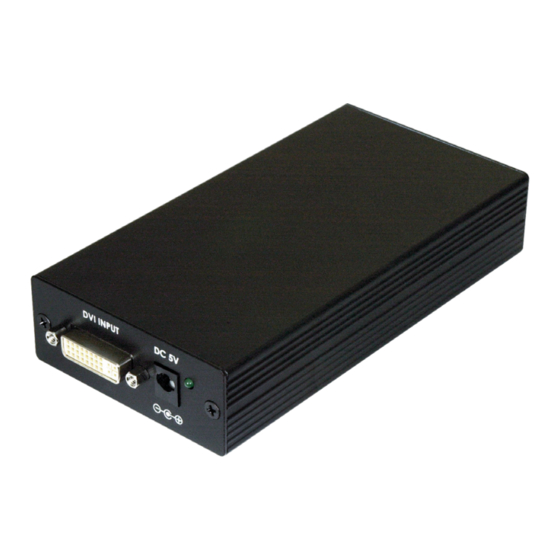

DVI-D to DVI-I
Scaler Box
CP-254
Operation Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the CP-254 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cypress CP-254

Summary of Contents for Cypress CP-254

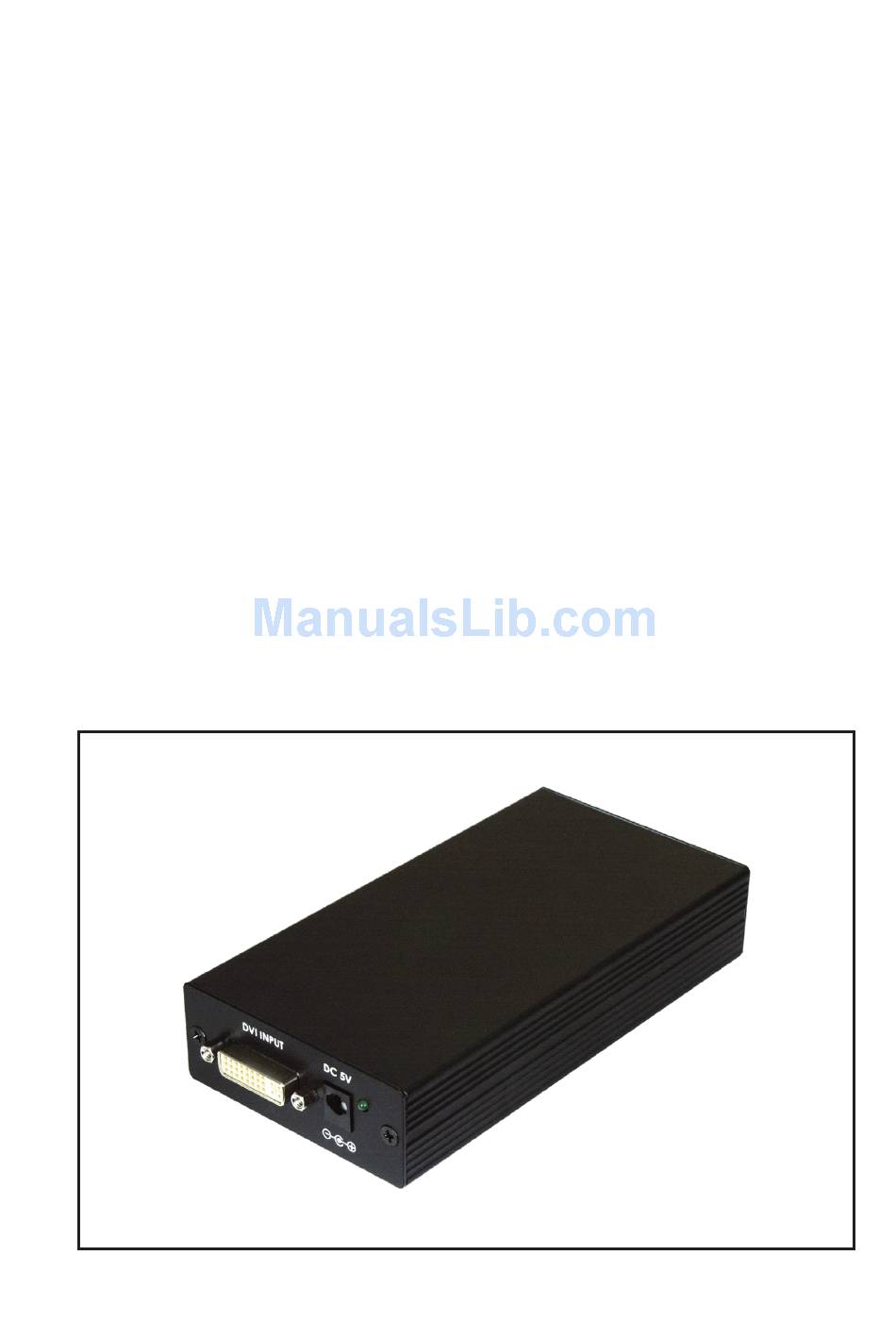

  • Page 1 DVI-D to DVI-I Scaler Box CP-254 Operation Manual...
  • Page 3 1. CP-254 is a high performance DVI scaler that accepts Digital DVI-D input and converters to DVI-I (digital + analog RGB) output. 2. The input to the CP-254 is digital PC or HDTV signal in the fromat of either RGBHV or YPbPr/YCbCr data bitstream via 24-pin DVI connector.

  • Page 4: Installation

    DVI cable to connect the DVI output of the CP-254 to the DVI input of a display monitor, or HDTV device. To use analog output of the CP-254 , select " DVI-A" in the Output Setup of the menu, and use the DVI to VGA adaptor to transfer analog output into VGA...
  • Page 5 A. For digital RGB (DVI) output, (Select DVI-D in the Output Setup of the menu). (a) PC in to Digital PC or HDTV out PC Resolutions PC/Monitor Cable CP-254 Plasma TV Cable Projector PC input HDTV Resolutions (b) HDTV in to Digital PC or HDTV out...
  • Page 6 Setup of the menu). (a) PC in to PC or HDTV out VGA cable Analog PC output DVI to Adaptor PC in CP-254 cable VGA to YPbPr Cable Analog HDTV output (b) HDTV in to PC or HDTV out VGA cable DVI to...

  • Page 7: Configuration And Operation

    Input set up - When it is selected, a sub menu as below will appear. YPbPr The CP-254 will automatically detect and show the input signal format as YPbPr or RGB. You can also manually select the YPbPr or RGB to match the format of your input.
  • Page 8 XXXX-XX Mode Select DVI-A when you would like to use analog output of CP-254. Select DVI-D when you would like to use digital output of CP-254. When DVI-A is selected, it gives you choice for the output mode as follow: Output modes under DVI-A.
  • Page 9 System information- When it is selected, it shows the input/output resolution and their vertical refresh rate on the screen. Auto adjust- When it is selected the CP-254 will automatically adjust all the parameter to the factory preset value. Exit- Select to exit from the current page.

  • Page 10: Specifications

    5. Specifications Digital HDTV(YPbPr,RGBHV) 70/75 Hz 70/75 Hz Digital/Analog PC (RGBHV) HDTV (RGBHV, YPbPr) 70/75 Hz * HDTV YPbPr format only available on Analog out. Input format: Digital RGBHV, YPbPr or YCbCr Input signal: Digital RGB data bitstream Input connector: 24-pin DVI-D connector Output format: Analog RGBHV+Analog RGBHV or YPbPr(through DVI to HD-15 adaptor) Output signal: Digital data bitstream...
