Summary of Contents for Cypress CM-398H

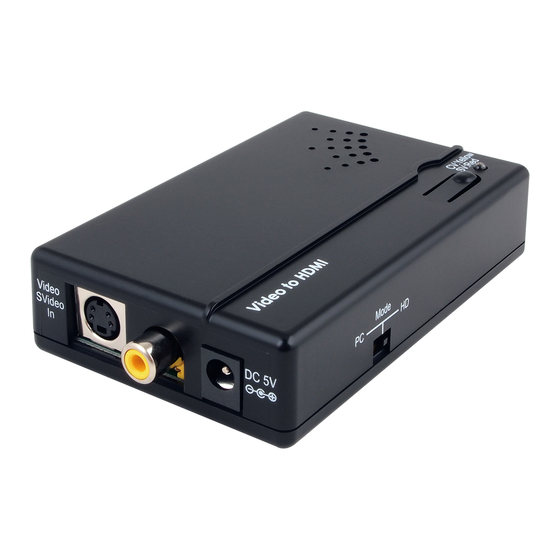

- Page 1 CM-398H CV/SV to HDMI Converter with Audio Input Operation Manual CM-398H...
-
Page 2: Copyright Notice
Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document. -
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................2 7. Operation Controls and Functions ..........3 Front Panel ..............3 Rear Panel ..............3 Front Panel .............. -
Page 5: Introduction
1. Introduction This is a Video to HDMI™ converter box that can convert CV/SV (NTSC or PAL system) to HDMI resolutions of XGA to UXGA or HD resolutions of 480p to 1080p. With frame rate conversion feature that allows users to view DVD, VCR or video game sources on the HD monitor/TV this device has an On-Screen Display function that allows users to easily select the output resolution and the audio input, after which both the video and audio signal are combined into an HDMI... -
Page 6: Specifications
6. Specifications Input port 1 x CV, 1 x SV, 1 x 3.5Ø Phone Jack Output port 1 x HDMI Output Resolution PC: XGA/SXGA/UXGA HD: 480p/576p/720p/1080p Power Supply 5VDC/1A (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model: ± 8kV (air-gap discharge) ±... -
Page 7: Operation Controls And Functions
7. Hardware Description The following sections describe the hardware components of the unit. 7.1 Left side Panel SVideo DC 5V . S-Video input: This slot is where you connect the input source equipment such as digital camcorder or PDAs with S-Video cable for input signal sending. -
Page 8: Rear Panel
7.2 Rear Panel . PC/HD switch: This dip switch allows you to select PC or component HD timing output. Simply slide the dip switch to left or right and the output mode will display your desire selection. 7.2 Rear Panel . CV/SV SW & LED: Press this button to switch input source between composite or S-Video. -
Page 9: Osd
8. OSD ← IN / OUT ← PC Monitor ← F / W 1. Press the top panel’s button once to switch in between CV/SV. If input source is disconnected the OSD will show “No Signal”. 2. Press the top panel’s button for 3 second to bring up OSD manual. 3. -
Page 10: Connection And Installation
9. Connection and Installation CM-398H... -
Page 11: Acronyms
Acronyms Acronym Complete Term Composite Video High Definition NTSC National Television System Committee Phase Alternate Line Personal computer Set-Top-Box S-Video UXGA Super eXtended Graphics Array Video Graphics Array Extended Graphics Array... - Page 12 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw MPM-CM398H...
